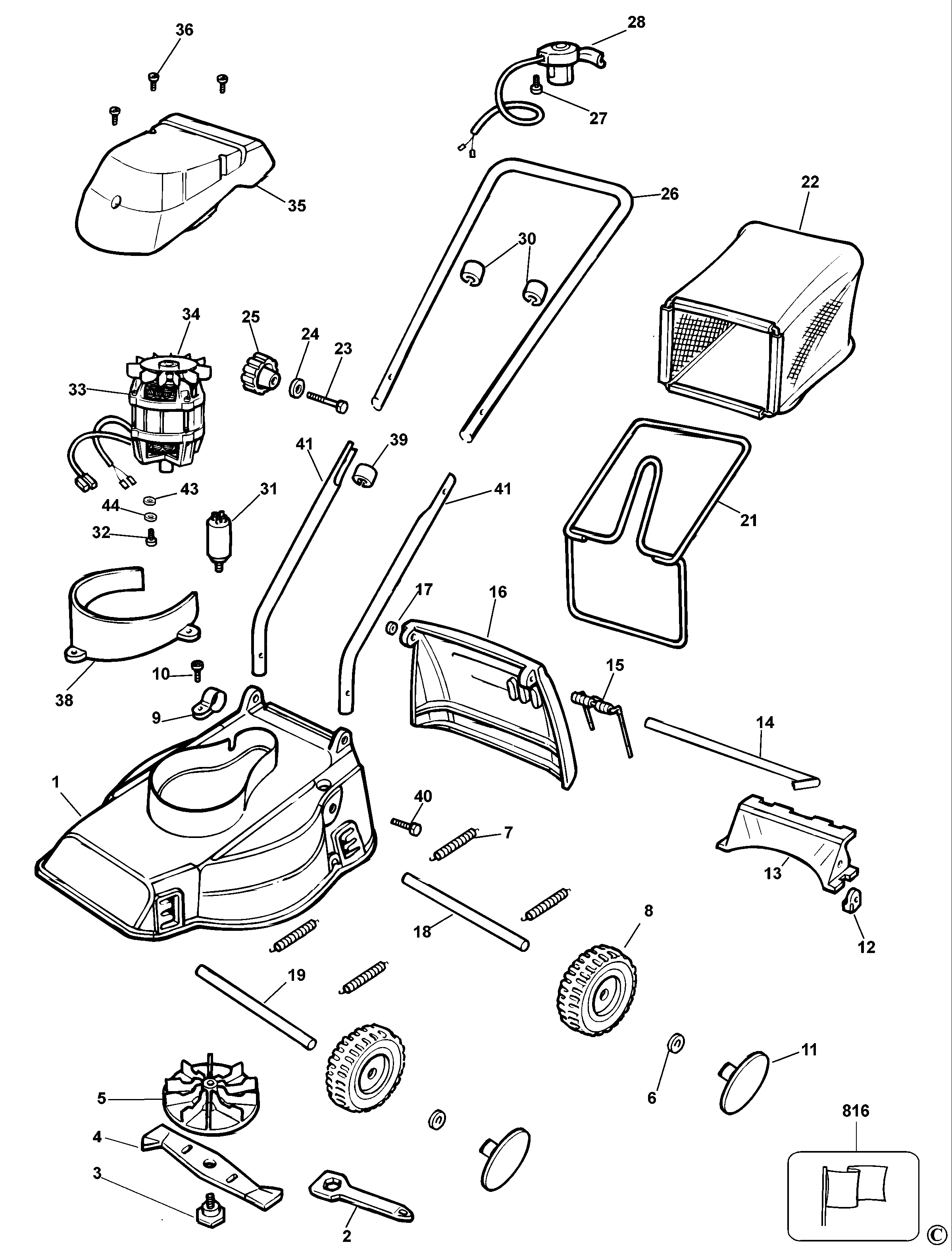

GR270 MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 279735-00 | 1 | CUTTER COVER 245230 | XJ |  |
||
| 2 | 279759-00 | 1 | SPANNER 642870 | XJ | |
||
| 3 | 279756-00 | 1 | SCREW 442850 | XJ | |
||
| 5 | 279755-00 | 1 | IMPELLOR 442840 | XJ | |
||
| 6 | 279718-00 | 4 | SPACER 144460 | XJ | |
||
| 7 | 279720-00 | 4 | SPACER 145260 | XJ | |
||
| 8 | 279713-00 | 4 | WHEEL 030022 | XJ | |
||
| 9 | 279736-00 | 8 | WASHER 245240 | GR270-GR270A | XJ | |
|
| 10 | 279719-00 | 4 | WASHER 145250 | GR270-GR270A | XJ | |
|
| 11 | 279739-00 | 4 | SCREW 308101 | GR270-GR270A | XJ | |
|
| 11 | 567990-00 | 4 | SCREW | GR280 | XJ | |
|
| 12 | 279743-00 | 1 | CLIP 309510 | XJ | |
||
| 13 | 279752-00 | 1 | GUIDE | XJ | |
||
| 14 | 279744-00 | 1 | ROD 309610 | XJ | |
||
| 15 | 279728-00 | 1 | SPRING 209580 | XJ | |
||
| 16 | 279754-00 | 1 | REAR FLAP 440010 | GR270-GR270A | XJ | |
|
| 16 | 567991-00 | 1 | REAR FLAP | GR280 | XJ | |
|
| 17 | 279730-00 | 1 | NUT | XJ | |
||
| 18 | 279742-00 | 4 | CLAMP 309410 | XJ | |
||
| 19 | 279715-00 | 4 | SCREW 109530 | XJ | |
||
| 20 | 279741-00 | 1 | LOWER HANDLE 309340 | XJ | |
||
| 21 | 279749-00 | 1 | FRAME 344880 | XJ | |
||
| 22 | 279732-00 | 1 | GRASSBAG 244890 | XJ | |
||
| 23 | 279714-00 | 2 | SCREW 109420 | XJ | |
||
| 24 | 279746-00 | 2 | SPACER 340060 | XJ | |
||
| 25 | 279745-00 | 2 | KNOB 340050 | XJ | |
||
| 26 | 279748-00 | 1 | HANDLE UPPER 344870 | GR270 | XJ | |
|
| 26 | 279748-00 | 1 | HANDLE UPPER 344870 | GR280 | XJ | |
|
| 26 | 279751-00 | 1 | HANDLE UPPER 345320 | GR270A | XJ | ||
| 27 | 279716-00 | 2 | SCREW 140080 | XJ | |
||
| 28 | 279724-00 | 1 | SWITCH SA 209430 | XJ | |
||
| 29 | 559798-00 | 1 | CLIP CABLE | GR270 | XJ | |
|
| 29 | 559798-00 | 1 | CLIP CABLE | GR280 | XJ | |
|
| 29 | 279753-00 | 1 | CLAMP 409500 | GR270A | XJ | |
|
| 30 | 279753-00 | 1 | CLAMP 409500 | XJ | |
||
| 31 | 567992-00 | 1 | CONDENSOR | GR280 | XJ | |
|
| 31 | 279726-00 | 1 | CONDENSOR 209470 | GR270-GR270A | XJ | |
|
| 32 | 279721-00 | 4 | SCREW 145290 | XJ | |
||
| 33 | 279725-00 | 1 | MOTOR SA 209460 | GR270A | XJ | ||
| 33 | 279731-00 | 1 | MOTOR SA 240860 | GR270 | XJ | |
|
| 33 | 567993-00 | 1 | MOTOR SA | GR280 | XJ | |
|
| 34 | 279727-00 | 1 | FAN 209480 | XJ | |
||
| 35 | 279750-00 | 1 | COVER 345060 | GR270-GR270A | XJ | |
|
| 35 | 567994-00 | 1 | COVER | GR280 | XJ | |
|
| 36 | 279717-00 | 3 | SCREW 140090 | XJ | |
||
| 37 | 279747-00 | 1 | IMPELLOR SA 343810 | XJ | |
||
| 38 | 567995-00 | 1 | GUIDE | GR280 | XJ | |
|
| 39 | 567987-00 | 1 | SCREW | GR280 | XJ | |
|
| 40 | 567989-00 | 1 | CABLE CLAMP | GR280 | XJ | |
