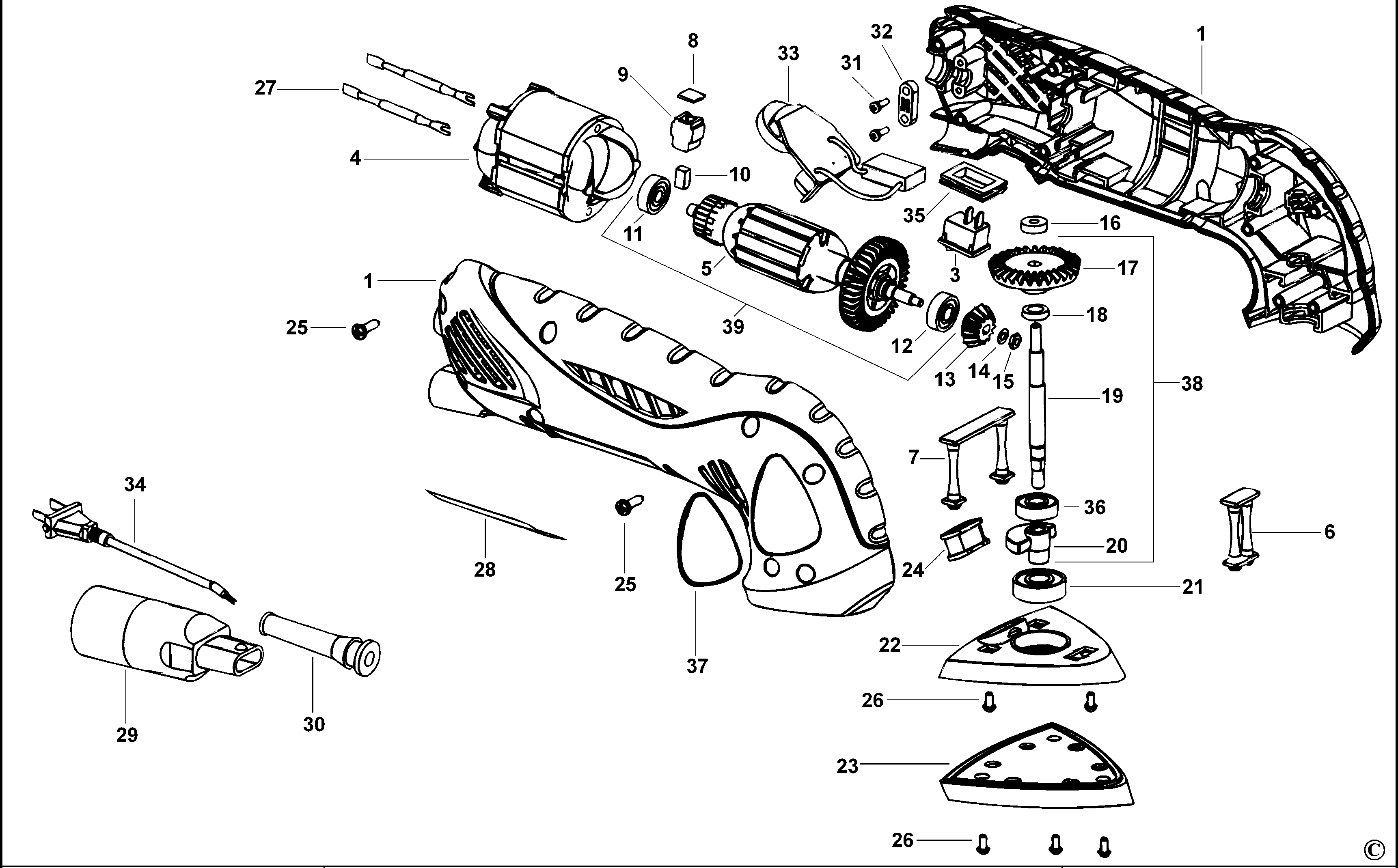

KA511EKA SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596493-00 | 1 | CLAMSHELL SET | GB |  |
||
| 3 | 596492-00 | 1 | SWITCH | GB | |
||
| 4 | 596491-00 | 1 | FIELD SA | GB | |
||
| 5 | 596490-00 | 1 | ARMATURE SA | GB | |
||
| 6 | 596489-00 | 1 | FRONT BRACKET | GB | |
||
| 7 | 596488-00 | 1 | REAR BRACKET | GB |  |
||
| 8 | 596487-00 | 2 | INSERT | PLASTIC BOARD | GB | |
|
| 9 | 596486-00 | 2 | BRUSH HOLDER | GB | |
||
| 10 | 596485-00 | 2 | BRUSH | CARBON | GB | |
|
| 11 | 596484-00 | 1 | BEARING | 6 X 19 X 6 | GB | |
|
| 12 | 596483-00 | 1 | BEARING | 7 X 19 X 6 | GB | |
|
| 13 | 596482-00 | 1 | GEAR | GB | |
||
| 14 | 596481-00 | 1 | GASKET | GB | |
||
| 15 | 596480-00 | 1 | NUT | GB | |
||
| 16 | 596479-00 | 1 | BEARING | 5 X 13 X 4 | GB | |
|
| 17 | 596478-00 | 1 | GEAR | GB | |
||
| 18 | 596477-00 | 1 | RING,GASKET | FELT RING | GB | |
|
| 19 | 596476-00 | 1 | SHAFT | GB | |
||
| 20 | 596475-00 | 1 | BALANCE WEIGHT | GB | |
||
| 21 | 596474-00 | 1 | BEARING | 10 X 26 X 8 | GB | |
|
| 22 | 596473-00 | 1 | COVER | PAD | GB | ||
| 23 | 596472-00 | 1 | PAD VELCRO | GB | |
||
| 24 | 596471-00 | 1 | PIPE | SOFT PIPE | GB | |
|
| 25 | 596470-00 | 9 | SCREW | ST4.2 X 20 | GB | |
|
| 26 | 596469-00 | 7 | SCREW | ST2.9 X 7 | GB | |
|
| 27 | 596468-00 | 2 | INDUCTOR | GB | |
||
| 28 | 596467-00 | 1 | LABEL | GB | |
||
| 29 | 596466-00 | 1 | VACUUM ADAPTOR | GB | |
||
| 30 | 596465-00 | 1 | CORD PROTECTOR | GB | |
||
| 31 | 596464-00 | 2 | SCREW | ST3.5 X 16 | GB | |
|
| 32 | 596463-00 | 1 | CORD CLAMP | GB | |
||
| 33 | 596462-00 | 1 | PCB SA | GB | |
||
| 34 | 596459-00 | 1 | CORDSET | GB | |
||
| 35 | 596458-00 | 1 | PAD | SWITCH PAD | GB | |
|
| 36 | 596457-00 | 1 | BEARING | 7 X 22 X 7 | GB | |
|
| 37 | 596494-00 | 1 | LABEL | GB | |
||
| 38 | 596544-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 39 | 596545-00 | 1 | ARMATURE SA | GB | |
