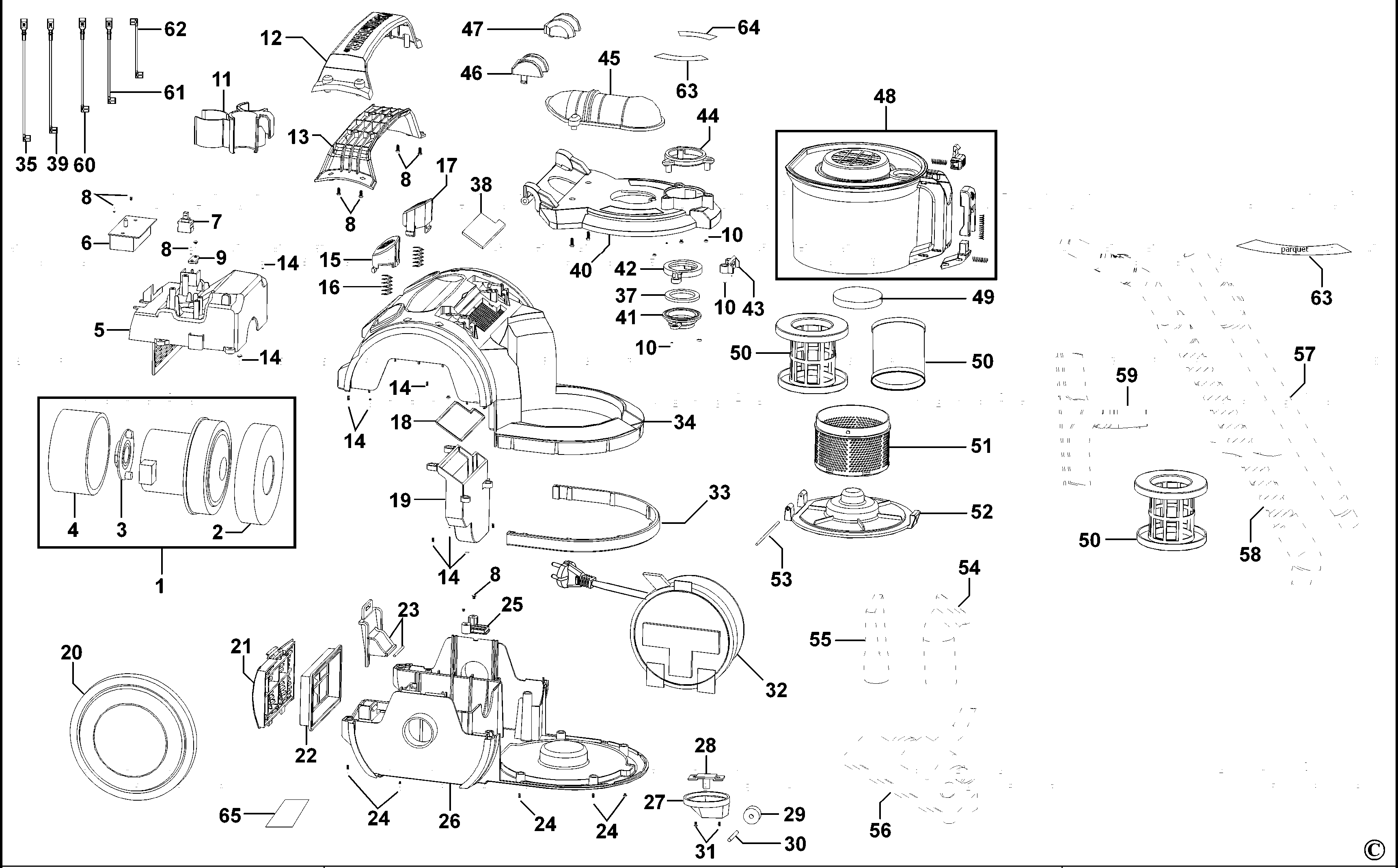

Z-VO1200 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 1002249-00 | 1 | SEAL | XJ |  |
||
| 3 | 1002250-00 | 1 | CAP | XJ | |
||
| 4 | 1002251-00 | 1 | INSULATOR | XJ | |
||
| 5 | 1002252-00 | 1 | MOTOR COVER | XJ | |
||
| 6 | 1002253-00 | 1 | PCB | XJ | |
||
| 7 | 1002254-00 | 1 | SWITCH | XJ | |
||
| 8 | 1002255-00 | 10 | SCREW | 4 X 15mm | XJ | |
|
| 9 | 1002256-00 | 1 | CORD CLAMP | XJ | |
||
| 10 | 1002257-00 | 10 | SCREW | 4 x 12mm | XJ | |
|
| 11 | 1002258-00 | 1 | HOLDER TOOL | XJ | |
||
| 12 | 1002259-00 | 1 | HANDLE UPPER | Red | XJ | |
|
| 13 | 1002260-00 | 1 | LOWER HANDLE | Red | XJ | |
|
| 14 | 1002261-00 | 16 | SCREW | 4 x 10mm | XJ | |
|
| 15 | 1002262-00 | 1 | ACTUATOR | Red | XJ | |
|
| 16 | 1002263-00 | 2 | SPRING | XJ | |
||
| 17 | 1002264-00 | 1 | BUTTON | Red | XJ | |
|
| 18 | 1002265-00 | 1 | SEAL | XJ | |
||
| 19 | 1002266-00 | 1 | BOX | XJ | |
||
| 21 | 1002269-00 | 1 | COVER | Grey | XJ | |
|
| 23 | 1002271-00 | 1 | FLAP | Grey | XJ | |
|
| 24 | 1002272-00 | 8 | SCREW | 4 x 18mm | XJ | |
|
| 25 | 1002273-00 | 1 | COVER | XJ | |
||
| 26 | 1002274-00 | 1 | BASE | Grey | XJ | |
|
| 27 | 1002275-00 | 1 | WHEEL | XJ | |
||
| 28 | 1002276-00 | 1 | SUPPORT | XJ | |
||
| 29 | 1002277-00 | 1 | ROLLER | XJ | |
||
| 30 | 1002278-00 | 1 | AXLE | XJ | |
||
| 31 | 1002279-00 | 2 | SCREW | 4 x 12mm | XJ | |
|
| 33 | 1002282-00 | 1 | GUARD | Red | XJ | |
|
| 34 | 1002283-00 | 1 | HOUSING TOP | Grey | XJ | |
|
| 35 | 1002284-00 | 1 | LEAD BLUE | 280mm | XJ | |
|
| 37 | 1002285-00 | 1 | RING | XJ | |
||
| 38 | 1002286-00 | 1 | FILTER | XJ | |
||
| 39 | 1002287-00 | 1 | LEAD BROWN | 240mm | XJ | |
|
| 40 | 1003214-00 | 1 | REPAIR KIT | Grey | XJ | |
|
| 41 | 1002289-00 | 1 | MOUNT | XJ | |
||
| 42 | 1002290-00 | 1 | INSERT | XJ | |
||
| 43 | 1002291-00 | 1 | MOUNT | Red | XJ | |
|
| 44 | 1002292-00 | 1 | INSERT | Red | XJ | |
|
| 45 | 1002293-00 | 1 | COVER | Red | XJ | |
|
| 46 | 1002294-00 | 1 | HINGE | LH - Grey | XJ | |
|
| 47 | 1002295-00 | 1 | HINGE | RH - Grey | XJ | |
|
| 48 | 1003214-00 | 1 | REPAIR KIT | Grey | XJ | |
|
| 49 | 1002297-00 | 1 | FOAM | XJ | |
||
| 50 | 1002298-00 | 1 | FILTER | XJ |  |
||
| 51 | 1002300-00 | 1 | CONTAINER | XJ | |
||
| 52 | 1002302-00 | 1 | BASE | XJ | |
||
| 53 | 1002303-00 | 1 | SHAFT | XJ | |
||
| 54 | 1002304-00 | 1 | TOOL BRUSH | XJ | |
||
| 55 | 1002305-00 | 1 | TOOL CREVICE | XJ | |
||
| 56 | 1002307-00 | 1 | TOOL FLOOR | XJ | |
||
| 57 | 1002308-00 | 1 | VACUUM TUBE SA | XJ | |
||
| 60 | 1002312-00 | 1 | LEAD BLUE | 190mm | XJ | |
|
| 61 | 1002313-00 | 1 | LEAD BLUE | 180mm | XJ | |
|
| 62 | 1002314-00 | 1 | LEAD BROWN | 90mm | XJ | |
|
| 63 | 1002316-00 | 1 | LABEL | XJ | |
