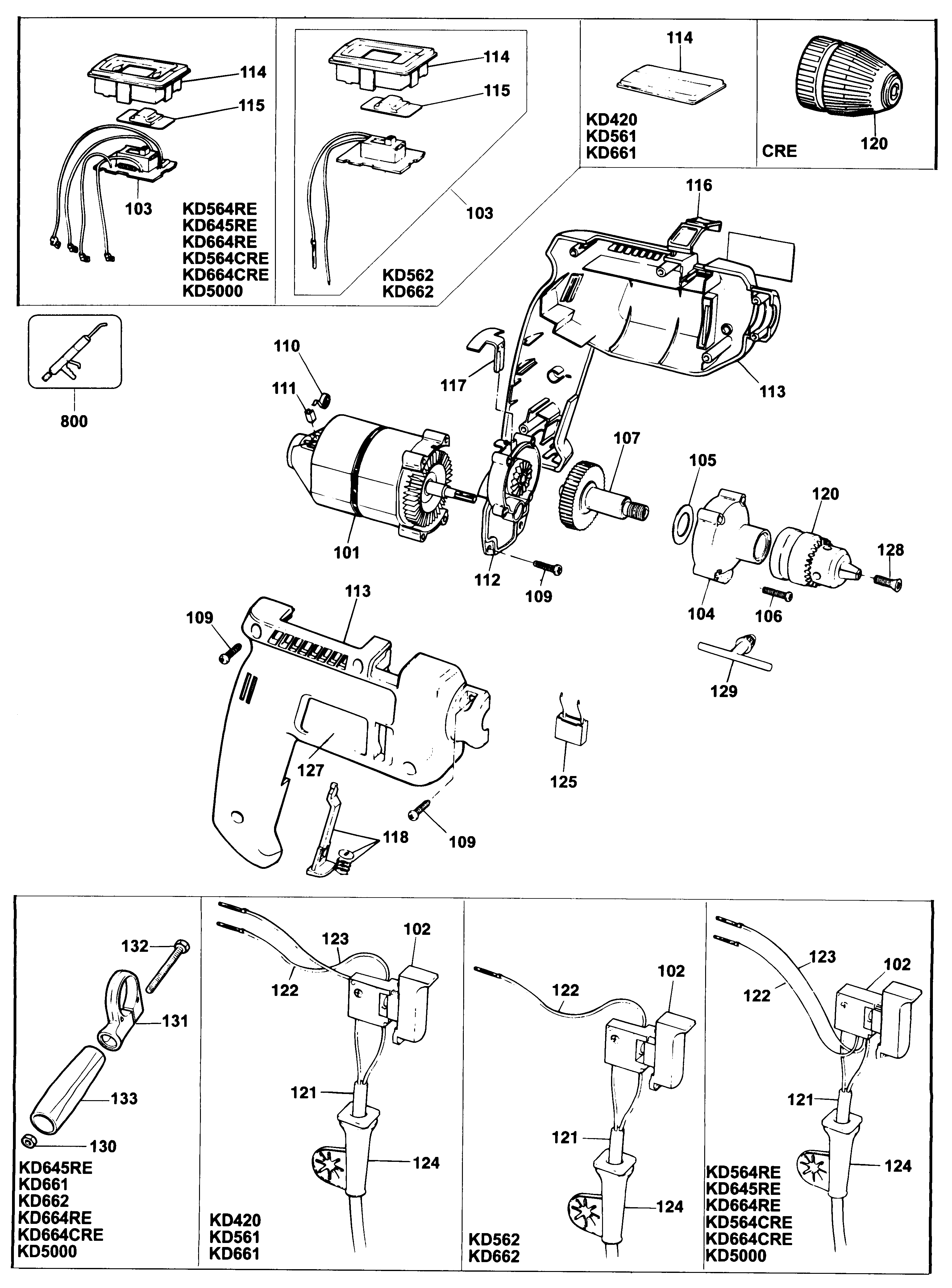

KD664RE HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 793419-09 | 1 | MOTOR SA | GB |  |
||
| 101 | 793419-09 | 1 | MOTOR SA | XK | GB | |
|
| 102 | 374171-02 | 1 | SWITCH | GB | |
||
| 102 | 374171-02 | 1 | SWITCH | XK | GB | |
|
| 103 | 371906-00 | 1 | PCB | GB | |
||
| 103 | 371906-00 | 1 | PCB | XK | GB | |
|
| 104 | 748133 | 1 | GEARCASE COVER | GB | |
||
| 105 | 748140-01 | 1 | WASHER SPRING | GB | |
||
| 106 | 794097 | 4 | SCREW | GB | |
||
| 107 | 794512-02 | 1 | SPINDLE SA | GB | |
||
| 109 | 747329 | 6 | SCREW | GB |  |
||
| 110 | 747634 | 2 | SPRING BRUSH | GB | |
||
| 111 | 832998-06 | 2 | BRUSH | GB | |
||
| 112 | 371753 | 1 | GEARCASE SA | GB | |
||
| 113 | 573262-00 | 1 | CLAMSHELL | GB | |
||
| 114 | 748159-02 | 1 | INSERT | GB | |
||
| 115 | 748160 | 1 | SLIDER | GB | |
||
| 116 | 796927 | 1 | ACTUATOR | GB | |
||
| 117 | 748147 | 1 | PLATE THRUST | GB | |
||
| 118 | 749858 | 1 | BUTTON SA | GB | |
||
| 120 | 586589-00L | 1 | CHUCK KEYLESS | CRE | GB | |
|
| 120 | 330033-23 | 1 | CHUCK 13MM | RE TYPE 1 | GB | |
|
| 120 | 376080-02 | 1 | CHUCK 13MM | RE TYPE 1Z | GB | |
|
| 121 | 330080-03 | 1 | CORDSET | XK | GB | |
|
| 121 | 330060-53 | 1 | CORDSET | GB | |
||
| 122 | 811537 | 1 | LEAD | GB | |
||
| 122 | 811537 | 1 | LEAD | XK | GB | |
|
| 123 | 374591 | 1 | LEAD SA RED | GB | |
||
| 123 | 374591 | 1 | LEAD SA RED | XK | GB | |
|
| 124 | 770236 | 1 | PROTECTOR | GB | |
||
| 125 | 808908 | 1 | CAPACITOR | GB | |
||
| 127 | 809310-09 | 1 | BRAND LABEL | CRE | GB | |
|
| 127 | 809310-10 | 1 | BRAND LABEL | RE | GB | |
|
| 128 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 129 | 330034-07 | 1 | CHUCK KEY | RE TYPE 1 | GB | |
|
| 129 | 330034-06 | 1 | CHUCK KEY | RE TYPE 1Z | GB | |
|
| 130 | 993461 | 1 | NUT | GB | |
||
| 131 | 845278 | 1 | CLAMP | GB | |
||
| 132 | 859180 | 1 | SCREW | GB | |
||
| 133 | 811377 | 1 | SIDE HANDLE | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
