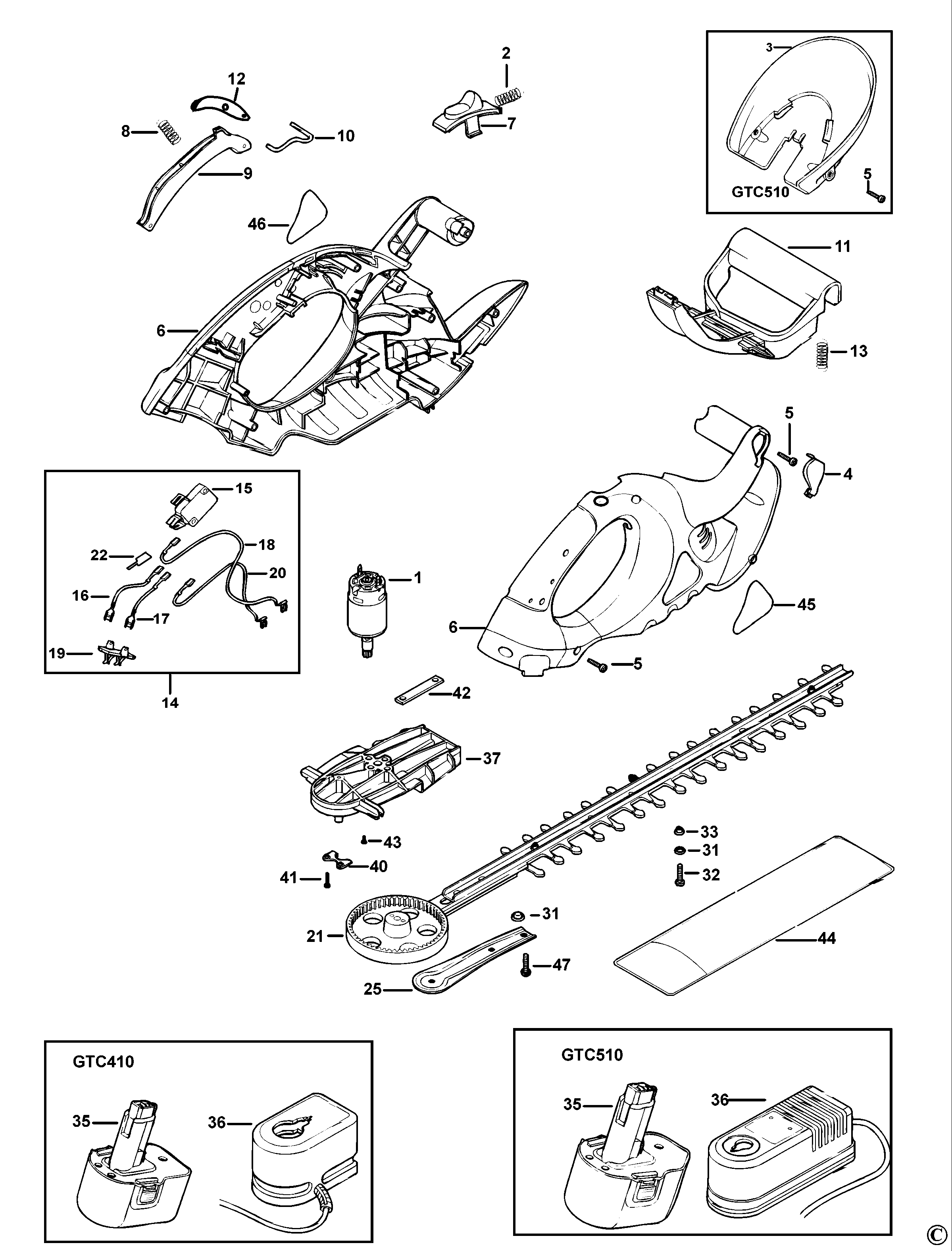

GTC510 CORDLESS HEDGETRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 571833-01 | 1 | MOTOR SA | GB |  |
||
| 1 | 1004760-47 | 1 | SA POWER SUPPLY | GB | |
||
| 2 | 577658-00 | 1 | SPRING | GB | |
||
| 2 | 6010394-50 | 1 | MICRO SWITCH | GB | |
||
| 3 | 574137-00 | 1 | GUARD | GB | |
||
| 3 | 6010063-01 | 1 | COVER | GB | |||
| 4 | 574095-00 | 2 | CAP | GB | |
||
| 4 | N727014 | 2 | POLE PIECE SA | UPPER | GB |  |
|
| 5 | 747329 | 10 | SCREW | GB | |
||
| 5 | N499057 | 1 | HOUSING SA | GB | |
||
| 6 | 571809-02 | 1 | CLAMSHELL | GB | |
||
| 6 | 6010063-18 | 1 | PLATE | GB | |
||
| 7 | 576736-00 | 1 | BUTTON LOCK-OFF | GB | |
||
| 7 | WM00327 | 1 | ROLL PIN | GB | |
||
| 8 | 571814-00 | 1 | SPRING | GB | |
||
| 8 | N639088 | 1 | COVER SA | GB | |
||
| 9 | 571860-00 | 1 | TRIGGER | GB | |
||
| 9 | 6010398-32 | 1 | KNOB | GB | |
||
| 10 | 571813-00 | 1 | LINK | GB | |
||
| 10 | 90637108 | 1 | CORD CLAMP | GB | |
||
| 11 | 571812-00 | 1 | ACTUATOR | GB | |
||
| 11 | N533861 | 1 | HOUSING | GB | |
||
| 12 | 571811-00 | 1 | CONNECTOR | GB | |
||
| 12 | N608302 | 1 | TUBE | GB | |
||
| 13 | 573374-00 | 1 | SPRING | GB | |
||
| 13 | 6010357-25 | 1 | KNOB | GB | |
||
| 14 | 576079-00 | 1 | SWITCH SA | GB | |
||
| 14 | 6010119-16 | 7 | RING | GB | |
||
| 15 | 576084-00 | 1 | SWITCH | GB | |
||
| 15 | N770509 | 11 | SPRING | GB | |
||
| 16 | 574003-00 | 1 | LEAD RED | GB | |
||
| 17 | 574004-00 | 1 | LEAD BLACK | GB | |
||
| 18 | 574005-00 | 1 | LEAD RED | GB | |
||
| 19 | 369296 | 1 | TERMINAL SA | GB | |
||
| 19 | 1004721-95 | 1 | LEVER | SWITCH | GB | |
|
| 20 | 574224-00 | 1 | LEAD BLACK | GB | |
||
| 20 | 1004721-78 | 1 | CORD CLAMP | GB | |
||
| 21 | 571820-02 | 1 | BLADE SA | 51CM | GB | |
|
| 21 | N721005 | 1 | ACTUATOR | GB | |
||
| 22 | 577704-00 | 1 | INSULATOR | GB | |
||
| 22 | N095611 | 1 | GUARD LOWER | GB | |||
| 23 | 1002718-00 | 1 | GEAR | GB | |
||
| 24 | 5170029-60 | 1 | SCREW | GB | |||
| 25 | 370920 | 1 | PLATE | GB | |
||
| 25 | 90579847 | 1 | CORDSET (EURO) | GB | |||
| 26 | 1004691-63 | 1 | SCREW | M4 x 10mm | GB | |
|
| 27 | N732116 | 1 | HOUSING SA | GB | |
||
| 28 | N812799 | 1 | PLATE | GB | |
||
| 29 | N563481 | 1 | SWITCH | GB | |
||
| 30 | 062487-00 | 2 | WASHER | GB | |||
| 31 | 573217-00 | 9 | SPACER | GB | |
||
| 31 | 582319-34 | 1 | CORDSET | GB | |
||
| 32 | 371954-01 | 7 | BOLT | GB | |
||
| 32 | 90583779 | 1 | SWITCH & PCB SA | GB | |
||
| 33 | 798755 | 7 | NUT M5 | GB | |||
| 35 | 497033-03 | 1 | BATTERY 14.4V - 1.5AH - 21.6WH | NiCd - A9276 | GB | |
|
| 35 | 419427-05 | 1 | BATTERY 14.4V - 1.2AH | NiCd - A9276 | GB | |
|
| 36 | 486910-16 | 1 | CHARGER | 14.4 Volt - 1 Hour | GB | |
|
| 37 | 571824-00 | 1 | GEARCASE SA | GB | |
||
| 40 | 574164-00 | 1 | INSERT | GB | |||
| 41 | 570567 | 2 | SCREW | GB | |
||
| 42 | 370927 | 1 | PLATE | GB | |
||
| 43 | 576575-00 | 2 | SCREW | GB | |
||
| 44 | 576571-00 | 1 | SHEATH | 51CM | GB | |
|
| 45 | 574133-01 | 1 | WARNING LABEL | GB | |
||
| 46 | 571816-00 | 1 | BRAND LABEL | GB | |
||
| 47 | 798754-01 | 2 | BOLT | GB | |
