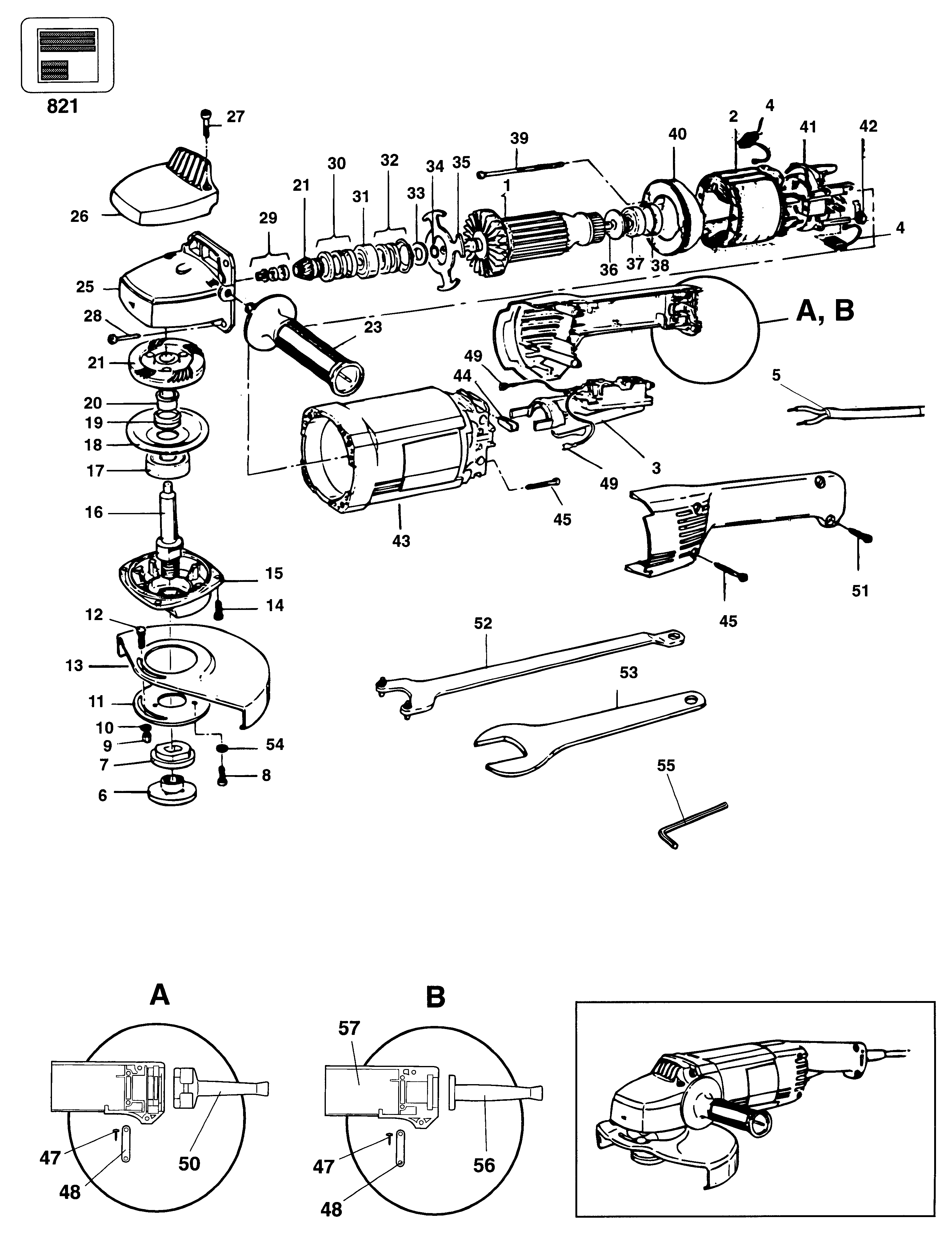

P5723 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 940607-49 | 1 | ARMATURE | 115 VOLTS | XJ |  |
|
| 1 | 930962-49 | 1 | ARMATURE 220/240V | 240 VOLTS | XJ | |
|
| 2 | 868531-00 | 1 | FIELD 115V | 115 VOLTS | XJ | ||
| 2 | 868531-02 | 1 | FIELD 230V | 240 VOLTS | XJ | |
|
| 3 | 949825-06 | 1 | SWITCH | 115 VOLTS | XJ | |
|
| 3 | 949825-04 | 1 | SWITCH LOCK-ON | 240 VOLTS | XJ | |
|
| 4 | 940160-01 | 2 | BRUSH CUT OFF | 230V | 240 VOLTS | XJ |  |
| 4 | 940160-00 | 2 | BRUSH CUT OFF | CUT-OFF | 115 VOLTS | XJ | |
| 5 | 4688529 | 1 | CABLE PER METRE | 240 VOLTS | XJ | |
|
| 5 | 4688531 | 1 | CABLE PER METRE | 115 VOLTS | XJ | ||
| 6 | 931771 | 1 | FLANGE | XJ | |
||
| 7 | 930927 | 1 | FLANGE | XJ | |
||
| 8 | 933058-00 | 3 | SCREW | XJ | |
||
| 9 | 860083-03 | 1 | NUT | XJ | |
||
| 10 | 930925 | 1 | WASHER | XJ | |
||
| 11 | 930929 | 1 | FLANGE | XJ | |
||
| 12 | 949892-07 | 1 | SCREW | XJ | |
||
| 13 | 931942-02 | 1 | GUARD 9" | P5923 | XJ | |
|
| 13 | 932525-02 | 1 | GUARD 7" | P5723 | XJ | |
|
| 14 | 949887-01 | 4 | SCREW | XJ | |
||
| 15 | 947962-00 | 1 | GEARCASE COVER | XJ | |
||
| 16 | 578243-00 | 1 | SPINDLE | XJ | |
||
| 17 | 930566 | 1 | BEARING | XJ | |
||
| 18 | 930924 | 1 | FLANGE | XJ | |
||
| 19 | 930923 | 1 | SEAL | XJ | |
||
| 20 | 930922 | 1 | SPACER | XJ | |
||
| 21 | 932576 | 1 | GEAR & PINION | P5723 | XJ | |
|
| 21 | 932522 | 1 | GEAR & PINION SA | P5923 | XJ | |
|
| 23 | 939815 | 1 | HANDLE SIDE SA | XJ | |
||
| 25 | 933352 | 1 | GEARBOX SA | XJ | |
||
| 26 | 933363 | 1 | COVER | XJ | |
||
| 27 | 930240 | 2 | SCREW | XJ | |
||
| 28 | 930930 | 4 | SCREW | XJ | |
||
| 29 | 937098-49 | 1 | CLIP SA | XJ | |
||
| 30 | 930909 | 1 | SEAL SA | XJ | |
||
| 32 | 931067-00 | 1 | SEAL SA | XJ | |
||
| 33 | 931062 | 1 | SPACER | XJ | |||
| 34 | 930028-00 | 1 | O RING | XJ | |
||
| 35 | 931066-00 | 1 | FLANGE | XJ | |
||
| 36 | N174055 | 1 | SPACER | TYPE A2 | XJ | |
|
| 37 | 577745-00 | 1 | BEARING | XJ | |
||
| 38 | 938332-00 | 1 | SLEEVE | TYPE A2 | XJ | |
|
| 39 | N412453 | 2 | SCREW | XJ | |
||
| 40 | 931073-00 | 1 | BAFFLE | XJ | |
||
| 41 | D935745 | 1 | BRUSH PLATE SA | 240 VOLTS | XJ | |
|
| 41 | 932388 | 1 | BRUSH HOLDER | 115 VOLTS | XJ | ||
| 42 | 931076-00 | 2 | SPRING | XJ | |
||
| 43 | 948134-09 | 1 | FIELDCASE SA | XJ | |
||
| 44 | 930934-00 | 4 | SHOCK ABSORBER | XJ | |
||
| 45 | 931297-00 | 4 | SCREW | XJ | |
||
| 47 | 931469-02 | 2 | SCREW | XJ | |
||
| 48 | 931477-00 | 1 | CORD CLAMP | XJ | |
||
| 50 | 930981-00 | 1 | CORD PROTECTOR | XJ | |
||
| 51 | 930284-01 | 2 | SCREW | XJ | |
||
| 52 | 938733 | 1 | WRENCH PIN | XJ | |
||
| 55 | 807043 | 1 | WRENCH | 4mm | XJ | |
|
| 56 | 947964-01 | 1 | CORD PROTECTOR | XJ | |
||
| 821 | 569036-00 | 1 | RATING PLATE | B&D Blank | XJ | |
