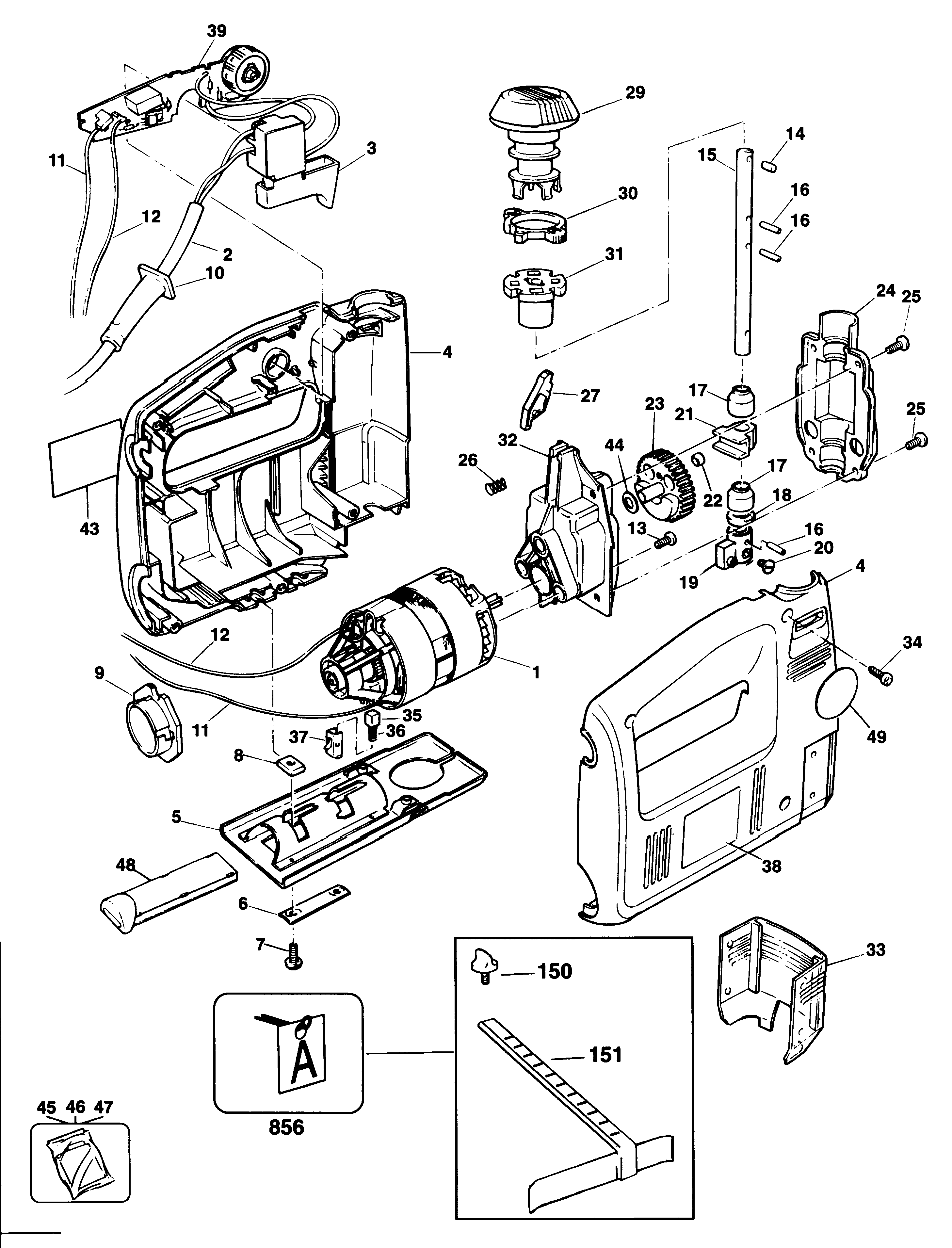

BD538SE SCROLLER JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 576376-03 | 1 | MOTOR SA | GB |  |
||
| 2 | 330060-00 | 1 | CORDSET (M/PLUG) | GB | |
||
| 3 | 374005 | 1 | SWITCH SA | GB | |
||
| 4 | 806703-06 | 1 | CLAMSHELL | GB | |
||
| 5 | 823909 | 1 | SHOE SA | GB | |
||
| 6 | 805981-00 | 1 | SUPPORT | GB | |
||
| 7 | 376409 | 2 | SCREW | GB | |
||
| 8 | 845591 | 2 | NUT | GB |  |
||
| 9 | 805156 | 1 | OUTLET | GB | |
||
| 10 | 770235 | 1 | PROTECTOR | GB | |
||
| 11 | 811666 | 1 | LEAD | GB | |
||
| 12 | 811667 | 1 | LEAD | GB | |
||
| 13 | 812171 | 2 | SCREW | GB | |
||
| 14 | 811057 | 1 | PIN | GB | |
||
| 15 | 792621 | 1 | SHAFT | BD538SE H1D | GB | |
|
| 15 | 792621 | 1 | SHAFT | BD538SE H1C | GB | |
|
| 15 | 833835 | 1 | SHAFT | BD538SE H1B | GB | |
|
| 15 | 811050 | 1 | SHAFT | BD538SE H1-H1A | GB | |
|
| 16 | 374292 | 3 | PIN | GB | |
||
| 17 | 889761 | 2 | BEARING | GB | |
||
| 18 | 811063 | 1 | SEAL | BD538SE H1C | GB | |
|
| 18 | 811063 | 1 | SEAL | BD538SE H1-H1A | GB | |
|
| 18 | 811063 | 1 | SEAL | BD538SE H1B | GB | |
|
| 18 | 799310 | 1 | O RING | BD538SE H1D | GB | |
|
| 19 | 792007 | 1 | BLADE CLAMP | BD538SE H1D | GB | |
|
| 19 | 792007 | 1 | BLADE CLAMP | BD538SE H1C | GB | |
|
| 19 | 792007 | 1 | BLADE CLAMP | BD538SE H1B | GB | |
|
| 19 | 844839 | 1 | BLADE CLAMP | BD538SE H1-H1A | GB | |
|
| 20 | 808548 | 1 | SCREW | GB | |
||
| 21 | 749286 | 1 | YOKE | BD538SE H1D | GB | |
|
| 21 | 749286 | 1 | YOKE | BD538SE H1C | GB | |
|
| 21 | 811051 | 1 | YOKE | BD538SE H1-H1A | GB | |
|
| 21 | 811051 | 1 | YOKE | BD538SE H1B | GB | |
|
| 22 | 811058 | 1 | ROLLER | GB | |
||
| 23 | 811055-49 | 1 | GEAR | GB | |
||
| 24 | 807617-49 | 1 | REPAIR KIT | BD538SE H1-H1A | GB | |
|
| 24 | 807617-49 | 1 | REPAIR KIT | BD538SE H1B | GB | |
|
| 24 | 807617-49 | 1 | REPAIR KIT | BD538SE H1C | GB | |
|
| 24 | 799309 | 1 | GEARCASE COVER | BD538SE H1D | GB | |
|
| 25 | 891024 | 4 | SCREW | GB | |||
| 26 | 811101 | 1 | SPRING | GB | |
||
| 27 | 811068 | 1 | LEVER | GB | |
||
| 29 | 831271 | 1 | HANDLE | GB | |
||
| 30 | 811069 | 1 | CAM | GB | |
||
| 31 | 811053 | 1 | BLOCK | GB | |
||
| 32 | 807617-49 | 1 | REPAIR KIT | BD538SE H1C | GB | |
|
| 32 | 807617-49 | 1 | REPAIR KIT | BD538SE H1-H1A | GB | |
|
| 32 | 807617-49 | 1 | REPAIR KIT | BD538SE H1B | GB | |
|
| 32 | 807617-49 | 1 | REPAIR KIT | BD538SE H1C | GB | |
|
| 32 | 807617-49 | 1 | REPAIR KIT | BD538SE H1-H1A | GB | |
|
| 32 | 807617-49 | 1 | REPAIR KIT | BD538SE H1B | GB | |
|
| 32 | 807042 | 1 | GEARCASE SA | BD538SE H1D | GB | |
|
| 33 | 826918 | 1 | GUARD | GB | |
||
| 34 | 849256 | 5 | SCREW | BD538SE H1-H1A | GB | |
|
| 34 | 809961 | 5 | SCREW | BD538SE H1C | GB | |
|
| 34 | 809961 | 5 | SCREW | BD538SE H1B | GB | |
|
| 35 | 372523 | 2 | BRUSH | GB | |
||
| 36 | 847709 | 2 | SPRING | GB | |
||
| 37 | 846076 | 2 | BRUSHBOX | GB | |
||
| 39 | 799843 | 1 | ELECTRONIC SA | GB | |
||
| 40 | 858274 | 1 | FENCE | PARTS NOT DRAWN | GB | |
|
| 41 | 812331 | 1 | KNOB | PARTS NOT DRAWN | GB | |
|
| 42 | A5642 | 1 | ADAPTOR | PARTS NOT DRAWN | GB | |
|
| 43 | 826579 | 1 | BRAND LABEL | GB | |
||
| 44 | 995036 | 1 | WASHER SPRING | GB | |
||
| 48 | 832441 | 1 | CONTAINER | BD538SE H1B | GB | |
|
| 49 | 826577 | 1 | LABEL | GB | |
