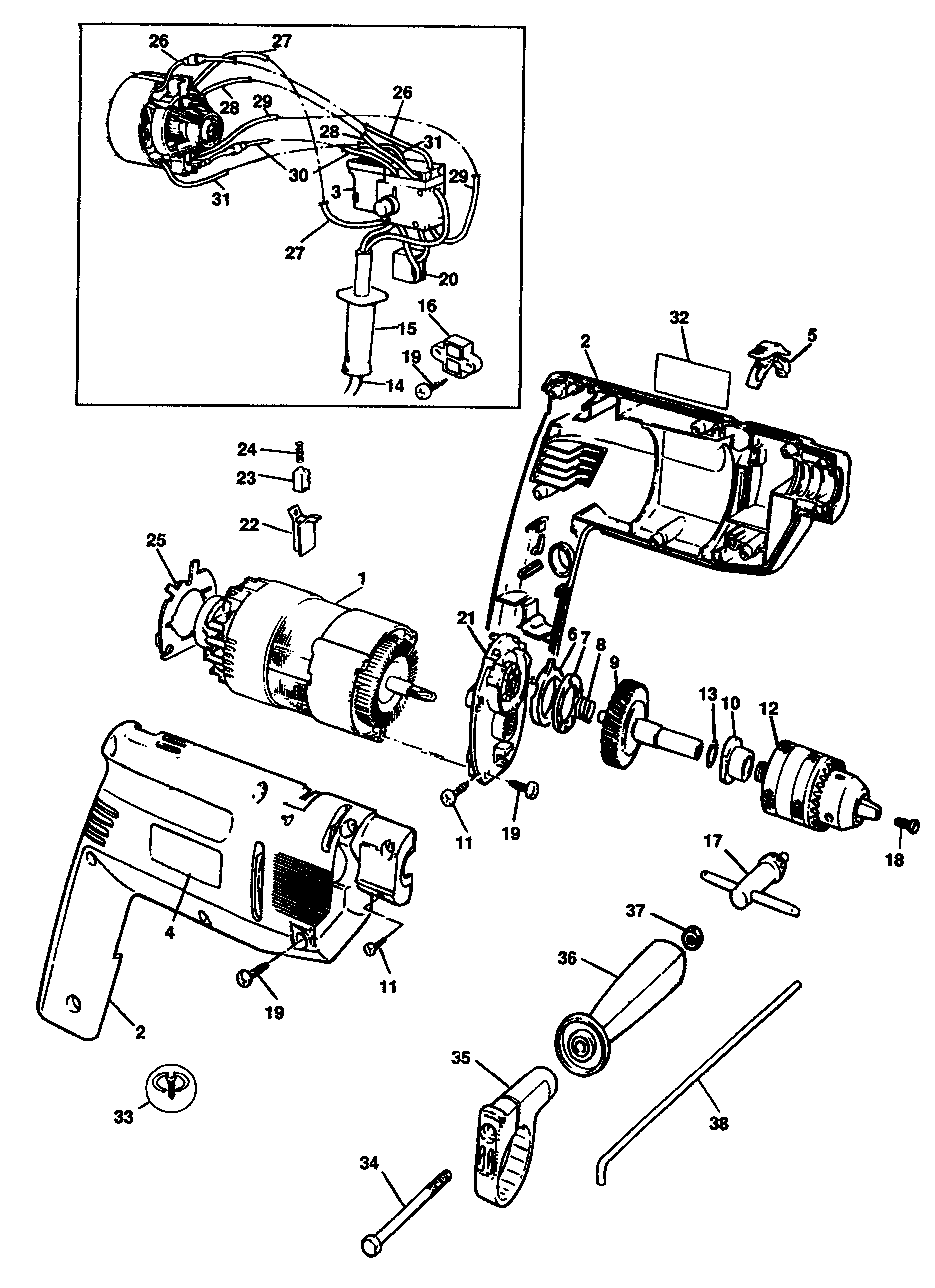

BD164R HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376913-03 | 1 | MOTOR SA | XJ |  |
||
| 1 | 5104907-00 | 1 | BRUSH SA | XJ |  |
||
| 2 | 797857 | 1 | CLAMSHELL | XJ | |
||
| 2 | 5104940-00 | 1 | BAG SA | XJ | |
||
| 2 | 999999-98 | 1 | CD MSDS | XJ | |
||
| 3 | 831501 | 1 | SWITCH | XJ | |
||
| 5 | 831215 | 1 | SELECTOR | XJ | |
||
| 6 | 812962 | 1 | RING | XJ | |
||
| 7 | 892261 | 1 | BEARING | XJ | |
||
| 8 | 821986 | 1 | SPRING | XJ | |
||
| 9 | 747323-49 | 1 | SPINDLE SA | XJ | |
||
| 10 | 812973 | 1 | BEARING | XJ | |
||
| 11 | 812983 | 2 | SCREW | XJ | |
||
| 12 | 330033-23 | 1 | CHUCK 13MM | CHUCK S2A | XJ | |
|
| 13 | 812979 | 1 | WASHER THRUST | XJ | |
||
| 14 | 330048-05 | 1 | CORDSET (EURO) | XJ | |
||
| 15 | 770236 | 1 | PROTECTOR | XJ | |
||
| 16 | 994808 | 1 | CABLE CLAMP | XJ | |
||
| 17 | 894688 | 1 | CHUCK KEY 13MM | CHUCK NON S2A | XJ | |
|
| 17 | 330034-07 | 1 | CHUCK KEY | CHUCK S2A | XJ | |
|
| 18 | 805434 | 1 | SCREW.SPECIAL | XJ | |
||
| 19 | 849256 | 11 | SCREW | XJ | |
||
| 20 | 805158 | 1 | CAPACITOR | XJ | |
||
| 21 | 823782 | 1 | COVER GEARCASE | XJ | |
||
| 22 | 812738 | 2 | BRUSH HOLDER | XJ | |
||
| 23 | 376143 | 2 | BRUSH | XJ | |
||
| 24 | 847709 | 2 | SPRING | XJ | |
||
| 25 | 827760 | 1 | COVER | XJ | |
||
| 26 | 799230 | 1 | CHOKE SA | XJ | |
||
| 27 | 799220 | 1 | LEAD VIOLET | XJ | |
||
| 28 | 799222 | 1 | LEAD ORANGE | XJ | |
||
| 29 | 799226 | 1 | LEAD YELLOW | XJ | |
||
| 30 | 799228 | 1 | CHOKE SA | XJ | |
||
| 31 | 799224 | 1 | LEAD PINK | XJ | |
||
| 32 | 798371 | 1 | BRAND LABEL | XJ | |
||
| 33 | 794468 | 1 | LABEL REVERSING | XJ | |
||
| 34 | 813918 | 1 | SCREW | XJ | |
||
| 35 | 370636-49 | 1 | CLAMP KIT | XJ | |
||
| 36 | 823784 | 1 | HANDLE | XJ | |
||
| 37 | 896369 | 1 | NUT | XJ | |
||
| 38 | 814991 | 1 | DEPTH ROD | XJ | |
