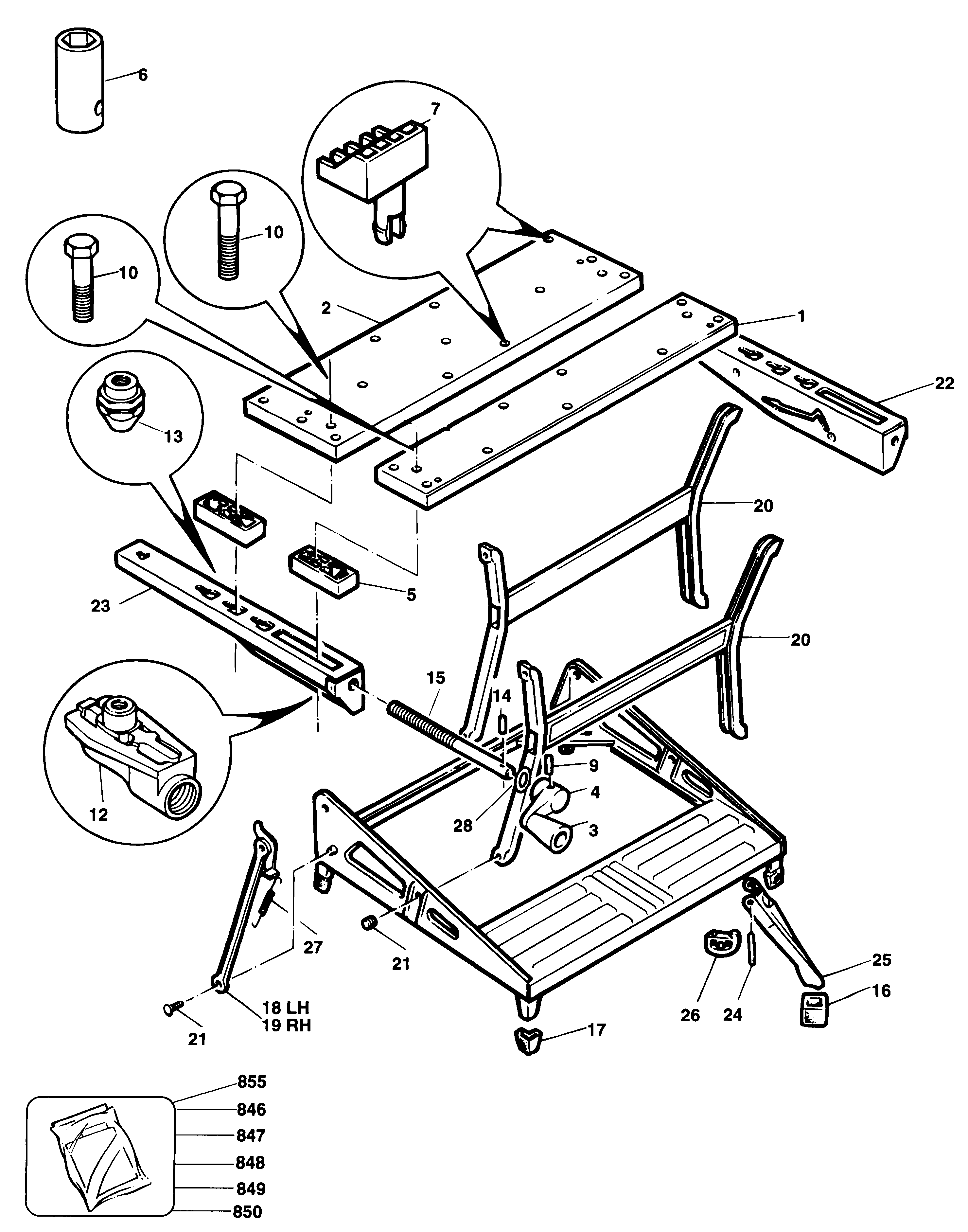

WM747 WORKMATE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 373775-02 | 1 | JAWS | XJ |  |
||
| 2 | 373775-02 | 1 | JAWS | XJ | |
||
| 3 | 820728 | 2 | KNOB | XJ |  |
||
| 4 | 723541 | 2 | ARM | XJ | |
||
| 5 | 820261 | 4 | BLOCK | XJ | |
||
| 6 | 723742 | 1 | SOCKET | XJ | |
||
| 7 | 807530-02 | 1 | GRIP | H8 - H9 - H10 | XJ | |
|
| 9 | 723566 | 2 | PIN | XJ | |
||
| 10 | 723593 | 4 | BOLT | M8 X 38 13AF | XJ | |
|
| 12 | 820263 | 1 | NUT | H9 | XJ | |
|
| 12 | 577199-00 | 1 | NUT | White LHT | H1 -H2 - H8 - H10 | XJ | |
| 13 | 1004683-00 | 2 | BLOCK REAR | XJ | |
||
| 14 | 807531 | 1 | SPIROL PIN | H8 - H9 - H10 | XJ | |
|
| 14 | 723567 | 1 | PIN | H1 - H2 | XJ | |
|
| 15 | 807540 | 1 | VICE SCREW SA | H8 | XJ | |
|
| 15 | 807540 | 1 | VICE SCREW SA | H10 | XJ | |
|
| 15 | 822079 | 1 | VICE SCREW | H1 - H2 | XJ | |
|
| 16 | 723206 | 4 | FOOT | XJ | |
||
| 17 | 723557 | 4 | FOOT | XJ | |
||
| 18 | 808161 | 1 | STAY LH | H8 - H9 - H10 | XJ | |
|
| 18 | 808161 | 1 | STAY LH | H1 - H2 | XJ | |
|
| 19 | 808160 | 1 | STAY RH | H8 - H9 - H10 | XJ | |
|
| 19 | 808160 | 1 | STAY RH | H1 - H2 | XJ | |
|
| 20 | 723262 | 2 | FRAME | XJ | |||
| 21 | 1004688-16 | 10 | RIVET | XJ | |
||
| 22 | 822074 | 1 | BRACKET RH | XJ | |
||
| 23 | 822075-32 | 1 | BRACKET LH | XJ | |
||
| 24 | 374985-49 | 4 | LATCH | XJ | |
||
| 25 | 723745-49 | 4 | LEG | XJ | |
||
| 26 | 374985-49 | 4 | LATCH | XJ | |
||
| 27 | 797516 | 2 | SPRING | XJ | |
||
| 848 | 807541 | 1 | PARTS PACK | H8 - H9 - H10 | XJ | |
|
| 849 | 572780-00 | 1 | PARTS PACK | H8 | XJ | |
|
| 849 | 572780-00 | 1 | PARTS PACK | H10 | XJ | |
|
| 850 | 371545 | 1 | PARTS PACK | H9 | XJ | |
|
| 855 | 376372 | 1 | PARTS PACK(KIT) | H9 | XJ | |
