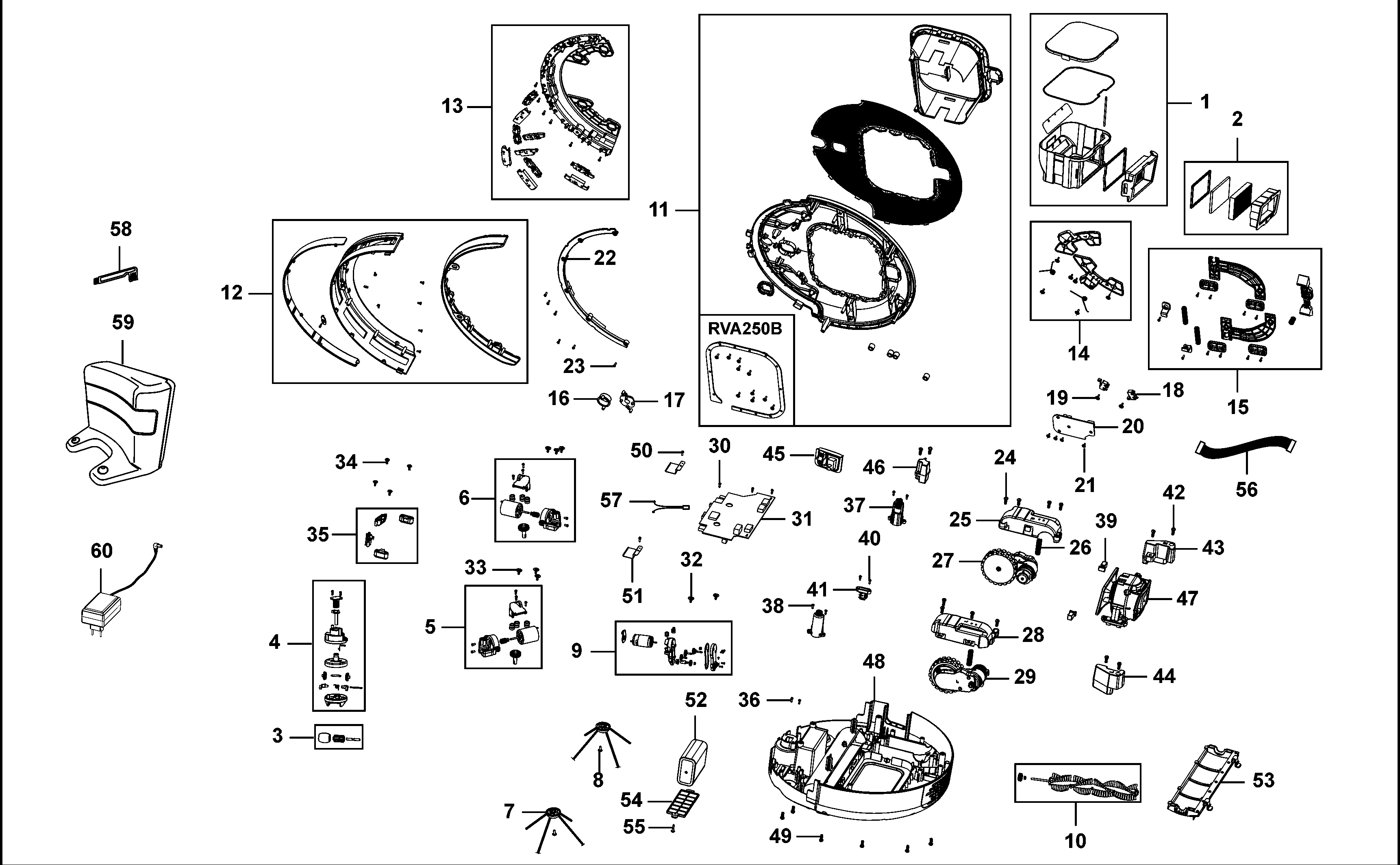

RVA420B ROBOT VACUUM Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004731-19 | 1 | DUST COLLECTOR | GB |  |
||
| 2 | 1004731-21 | 1 | FILTER SA | HEPA13 | GB | |
|
| 3 | 1004731-22 | 1 | ROLLER SA | GB | |
||
| 4 | 1004731-23 | 1 | WHEEL FRONT | GB | |
||
| 5 | 1004731-24 | 1 | SIDE MOTOR SA | LH | GB | |
|
| 6 | 1004731-25 | 1 | SIDE MOTOR SA | RH | GB | |
|
| 7 | 1004731-27 | 2 | SIDE BRUSH | GB | |
||
| 8 | 1004731-28 | 2 | SCREW | M3 x 8 | GB | |
|
| 9 | 1004731-29 | 1 | MOTOR & GEARCASE | GB | |
||
| 10 | 1004731-31 | 1 | BRUSH BAR | Pet | GB | |
|
| 11 | 1004731-33 | 1 | HOUSING TOP | GB | |
||
| 12 | 1004731-34 | 1 | BUMPER | GB | |
||
| 13 | 1004731-35 | 1 | SENSOR ARRAY | GB | |
||
| 14 | 1004731-36 | 1 | ACTUATOR | GB | |
||
| 15 | 1004731-37 | 1 | LEVER RELEASE | GB | |
||
| 16 | 1004731-38 | 1 | COVER | GB | |
||
| 17 | 1004731-40 | 1 | BUTTON | GB | |
||
| 18 | 1004731-41 | 2 | MICRO SWITCH | GB | |
||
| 19 | 1004731-42 | 2 | SCREW | 2.6 x 8 mm | GB | |
|
| 20 | 1004731-43 | 1 | PCB | GB | |
||
| 21 | 1004731-44 | 4 | SCREW | 2.6 x 6 mm | GB | |
|
| 22 | 1004731-45 | 1 | COVERPLATE | GB | |
||
| 23 | 1004731-46 | 6 | SCREW | 2.6 x 7 mm | GB | |
|
| 24 | 1004731-47 | 8 | SCREW | GB | |
||
| 25 | 1004731-48 | 1 | COVER RH | GB | |
||
| 26 | 1004731-49 | 2 | SPRING | GB | |
||
| 27 | 1004731-50 | 1 | WHEEL SA RIGHT | GB | |
||
| 28 | 1004731-51 | 1 | COVER LH | GB | |
||
| 29 | 1004731-52 | 1 | WHEEL SA LEFT | GB | |
||
| 30 | 1004731-53 | 3 | SCREW | GB | |
||
| 31 | 1004731-54 | 1 | PCB SA | GB | |
||
| 32 | 1004731-55 | 2 | SCREW | GB | |
||
| 33 | 1004731-56 | 6 | SCREW | GB | |
||
| 34 | 1004731-57 | 4 | SCREW | GB | |
||
| 35 | 1004731-58 | 1 | SENSOR ARRAY | GB | |
||
| 36 | 1004731-59 | 2 | SCREW | GB | |
||
| 37 | 1004731-60 | 2 | EJECTOR | GB | |
||
| 38 | 1004731-61 | 4 | SCREW | GB | |
||
| 39 | 1004731-62 | 2 | STOP RUBBER | GB | |
||
| 40 | 1004731-63 | 2 | SCREW | GB | |
||
| 41 | 1004731-64 | 1 | INSERT | GB | |
||
| 42 | 1004731-65 | 4 | SCREW | GB | |
||
| 43 | 1004731-66 | 1 | WEIGHT | RH | GB | |
|
| 44 | 1004731-67 | 1 | WEIGHT | LH | GB | |
|
| 45 | 1004731-68 | 1 | SWITCHBOX | GB | |
||
| 46 | 1004731-69 | 1 | COUNTERWEIGHT | GB | |
||
| 47 | 1004731-71 | 1 | FAN SA | GB | |
||
| 48 | 1004731-72 | 1 | HOUSING LOWER | GB | |
||
| 49 | 1004731-73 | 6 | SCREW | GB | |
||
| 50 | 1004731-74 | 2 | SCREW | GB | |
||
| 51 | 1004731-75 | 2 | CONTACT PLATE | GB | |
||
| 52 | 1004731-77 | 1 | BATTERY 14.4V - 2.0AH - 29WH | Li-Ion | GB | |
|
| 53 | 1004731-79 | 1 | BRUSH COVER | GB | |
||
| 54 | 1004731-80 | 1 | BATTERY COVER | GB | |
||
| 55 | 1004731-81 | 1 | SCREW | GB | |
||
| 56 | 1004731-82 | 1 | WIRE HARNESS | GB | |
||
| 57 | 1004731-83 | 1 | CONTACT WIRE | GB | |
||
| 58 | 1004731-84 | 1 | COMB | GB | |
||
| 59 | 1004731-85 | 1 | BASE SA | GB | |
||
| 60 | 1004731-87 | 1 | CHARGER GB | GB | |
