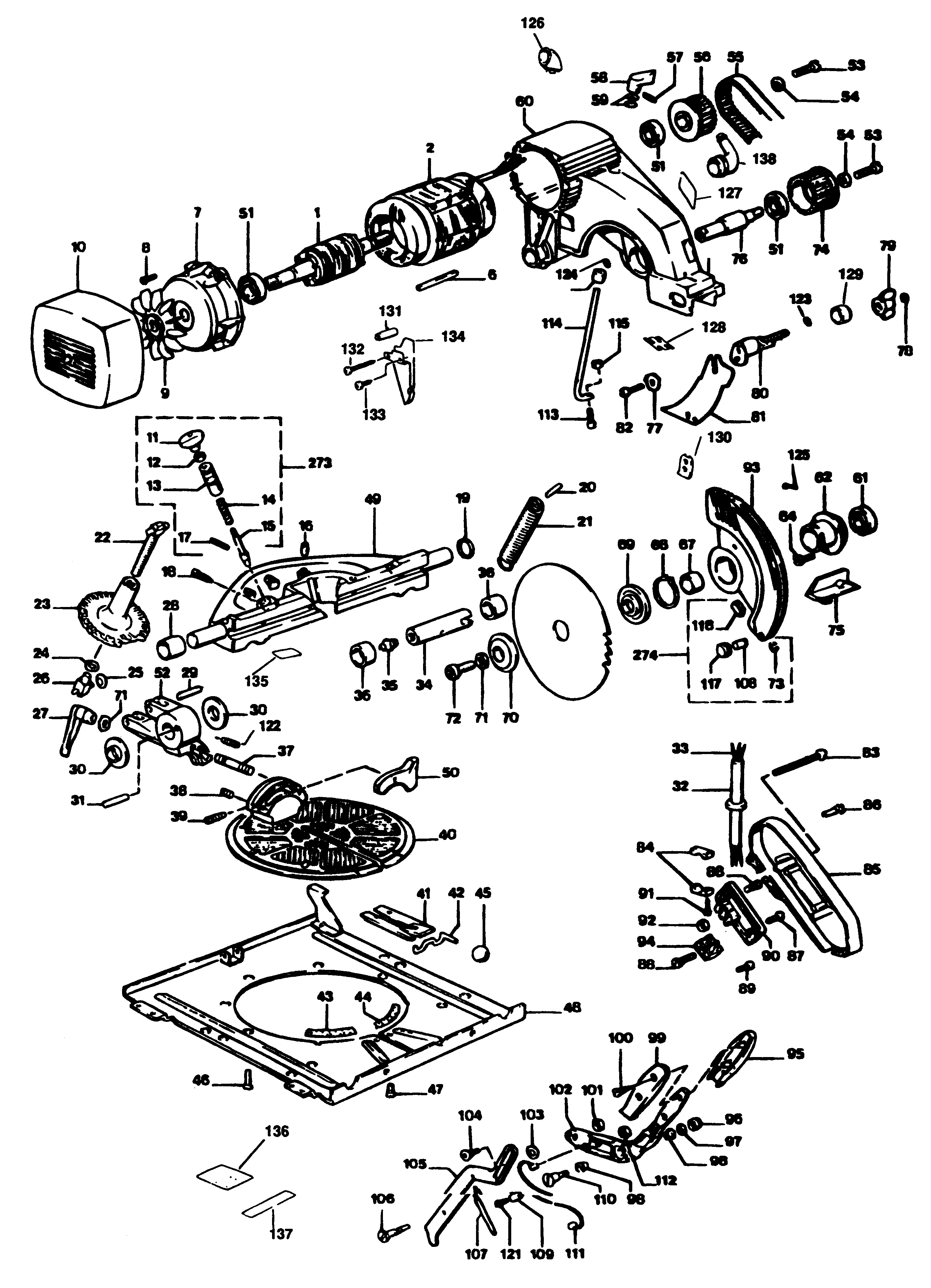

TGS172----L MOTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868410-01 | 1 | ROTOR | XJ |  |
||
| 2 | 868395-09 | 1 | MOTOR SA 230V | XJ | |
||
| 6 | 172125701 | 1 | WEDGE | XJ | |
||
| 7 | 861085-04 | 1 | END CAP | XJ | |
||
| 8 | 860089-17 | 4 | SCREW.TEMP | XJ |  |
||
| 10 | 861036-02 | 1 | END CAP | XJ | |
||
| 11 | 942453-00 | 1 | KNOB | XJ | |
||
| 12 | 949726-05 | 1 | NUT | XJ | |
||
| 13 | 941802-00 | 1 | BARREL | XJ | |
||
| 14 | 761054-00 | 1 | SPRING | XJ | |
||
| 15 | 941798-00 | 1 | LOCKING PIN | XJ | |
||
| 16 | 942329-00 | 1 | SCREW | XJ | |
||
| 17 | 761065-00 | 1 | PIN | XJ | |
||
| 18 | 941880-00 | 1 | SCREW | XJ | |
||
| 19 | 171930412 | 1 | WASHER | XJ | |
||
| 20 | 860649-01 | 1 | PIN | XJ | |
||
| 21 | 942455-00 | 1 | SPRING | XJ | |
||
| 22 | 942363-00 | 1 | SPINDLE | XJ | |
||
| 23 | 942472-01 | 1 | WHEEL REGULATOR | XJ | |
||
| 24 | 941801-00 | 1 | WASHER | XJ | |
||
| 25 | 860074-02 | 1 | WASHER | XJ | |
||
| 26 | 172112601 | 1 | SPINDLE | XJ | |
||
| 27 | 942518-00 | 1 | LOCK HANDLE | XJ | |
||
| 28 | 171114002 | 1 | BUSH | XJ | |
||
| 29 | 942045-00 | 1 | PIN | XJ | |
||
| 30 | 941800-00 | 2 | WASHER LOCK | XJ | |
||
| 31 | 941872-00 | 1 | PIN | XJ | |
||
| 32 | 942277-00 | 1 | PROTECTOR | XJ | |
||
| 33 | 942354-00 | 1 | CABLE | XJ | |
||
| 34 | 071123503 | 1 | SPINDLE | XJ | |
||
| 35 | 034940402 | 1 | NIPPLE | XJ | |
||
| 36 | 941886-00 | 2 | BUSH | XJ | |
||
| 37 | 172910180 | 1 | BOLT M10X170 | M10 X 170 | XJ | |
|
| 38 | 172815401 | 1 | SCREW | XJ | |
||
| 39 | 949743-01 | 2 | SCREW | XJ | |
||
| 40 | 172115107 | 1 | TABLE | XJ | |
||
| 41 | 172111701 | 1 | PLATE | XJ | |
||
| 42 | 942234-00 | 1 | LOCKING PIN | XJ | |
||
| 43 | 942208-00 | 1 | SCALE LH | XJ | |
||
| 44 | 942207-00 | 1 | SCALE RH | XJ | |
||
| 45 | 942450-00 | 1 | KNOB | XJ | |
||
| 46 | 868256-00 | 10 | SCREW | XJ | |
||
| 47 | 942272-00 | 1 | SCREW | XJ | |
||
| 48 | 172115108 | 1 | TABLE | XJ | |
||
| 49 | 172116601 | 1 | FENCE | XJ | |
||
| 50 | 942400-00 | 1 | PLATE | XJ | |
||
| 51 | 930563-00 | 2 | BEARING | XJ | |
||
| 52 | 942367-00 | 1 | LEVER | XJ | |
||
| 53 | 860085-07 | 2 | SCREW | XJ | |
||
| 54 | 949876-04 | 2 | WASHER | XJ | |
||
| 55 | 922456-00 | 1 | BELT DRIVE | XJ | |
||
| 56 | 942397-01 | 1 | PULLEY,ARMATURE | XJ | |
||
| 57 | 760233-00 | 3 | PIN | XJ | |
||
| 59 | 860491-01 | 4 | SPRING | XJ | |
||
| 60 | 172120103 | 1 | HOUSING | XJ | |
||
| 61 | 860155-08 | 1 | BEARING | XJ | |
||
| 62 | 172121000 | 1 | SLEEVE | XJ | |
||
| 64 | 860094-00 | 1 | SCREW.TEMP | XJ | |
||
| 68 | 860079-05 | 1 | CIRCLIP | XJ | |
||
| 69 | 171125400 | 1 | BRACE | XJ | |
||
| 70 | 171120602 | 1 | FLANGE | XJ | |
||
| 71 | 860073-04 | 2 | WASHER | XJ | |
||
| 72 | 171813200 | 1 | SCREW | XJ | |
||
| 73 | 860322-03 | 2 | CIRCLIP | XJ | |
||
| 74 | 942396-01 | 1 | PULLEY SHAFT | XJ | |
||
| 75 | PARTNLS | 3 | NO LONGER SUPPLIED | XJ | |||
| 76 | 172129902 | 1 | SPINDLE | XJ | |
||
| 77 | 860073-04 | 1 | WASHER | XJ | |
||
| 78 | 860322-00 | 1 | CIRCLIP | XJ | |
||
| 79 | 942263-00 | 1 | KNOB | XJ | |
||
| 80 | 172121304 | 1 | HOLDER | XJ | |||
| 81 | 172125705 | 1 | RIVING KNIFE | XJ | |
||
| 82 | 942831-00 | 1 | SCREW | XJ | |
||
| 83 | 860089-13 | 2 | SCREW | XJ | |
||
| 84 | 941544-00 | 2 | CABLE CLAMP | XJ | |
||
| 85 | 195053 | 1 | COVER | XJ | |
||
| 86 | 860089-18 | 1 | SCREW | XJ | |
||
| 87 | 760996-00 | 1 | SCREW.TEMP | XJ | |
||
| 88 | 949701-02 | 4 | SCREW | XJ | |
||
| 89 | 949870-02 | 1 | SCREW | XJ | |
||
| 90 | 172164800 | 1 | COVER | XJ | |
||
| 91 | 860084-13 | 2 | SCREW | XJ | |
||
| 92 | 249232-00 | 2 | NUT M4 | XJ | |
||
| 93 | 942389-01 | 2 | GUARD | XJ | |
||
| 94 | 942416-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 95 | 171127400 | 1 | HANDLE | XJ | |
||
| 96 | 941563-00 | 1 | NUT | XJ | |
||
| 97 | 860073-03 | 2 | WASHER M8 | XJ | |
||
| 98 | 171120901 | 2 | BOSS | XJ | |
||
| 99 | 171120202 | 1 | HANDLE COVER | XJ | |
||
| 100 | 860084-11 | 2 | SCREW | XJ | |
||
| 101 | 860083-12 | 1 | NUT M6 | XJ | |
||
| 102 | 942251-00 | 1 | LEVER | XJ | |
||
| 103 | 171120600 | 1 | DISC | XJ | |
||
| 104 | 171127003 | 1 | SCREW | XJ | |
||
| 105 | 172120500 | 1 | LEVER | XJ | |
||
| 106 | 172127001 | 1 | SCREW | XJ | |
||
| 107 | 085931319 | 1 | FSO SPRING | XJ | |
||
| 108 | 942264-00 | 1 | PIN | XJ | |
||
| 109 | 140931226 | 1 | CLAMP | XJ | |
||
| 110 | 171127001 | 1 | SCREW | XJ | |
||
| 111 | 942458-00 | 1 | CORD | XJ | |
||
| 112 | 249232-00 | 1 | NUT M4 | XJ | |
||
| 113 | 860085-17 | 1 | SCREW | XJ | |
||
| 114 | 861380-00 | 1 | DEPTH STOP | XJ | |
||
| 115 | 860083-12 | 1 | NUT M6 | XJ | |
||
| 116 | 942244-00 | 1 | BUSH | XJ | |
||
| 117 | 861096-01 | 1 | ROLLER | XJ | |
||
| 118 | 861095-01 | 2 | BUFFER | XJ | |
||
| 121 | 949701-02 | 1 | SCREW | XJ | |
||
| 122 | 172815400 | 1 | SCREW | XJ | |
||
| 123 | 860073-04 | 1 | WASHER | XJ | |
||
| 124 | 860073-08 | 1 | WASHER | XJ | |
||
| 125 | 949896-12 | 1 | SCREW | XJ | |
||
| 128 | 172931234 | 1 | SPRING | XJ | |||
| 129 | 171120905 | 1 | BUSH | XJ | |||
| 130 | 171120700 | 1 | PLATE | XJ | |
||
| 131 | 172128300 | 1 | SPACER | XJ | |
||
| 132 | 860084-19 | 1 | SCREW | XJ | |
||
| 133 | 949896-12 | 1 | SCREW | XJ | |
||
| 136 | 172050303 | 1 | NAMEPLATE | XJ | |
||
| 138 | 942311-00 | 1 | TUBE | XJ | |
||
| 273 | 944909-00 | 1 | LOCKING PIN SA | XJ | |
||
| 274 | 944898-01 | 1 | ROLLER SA | XJ | |
