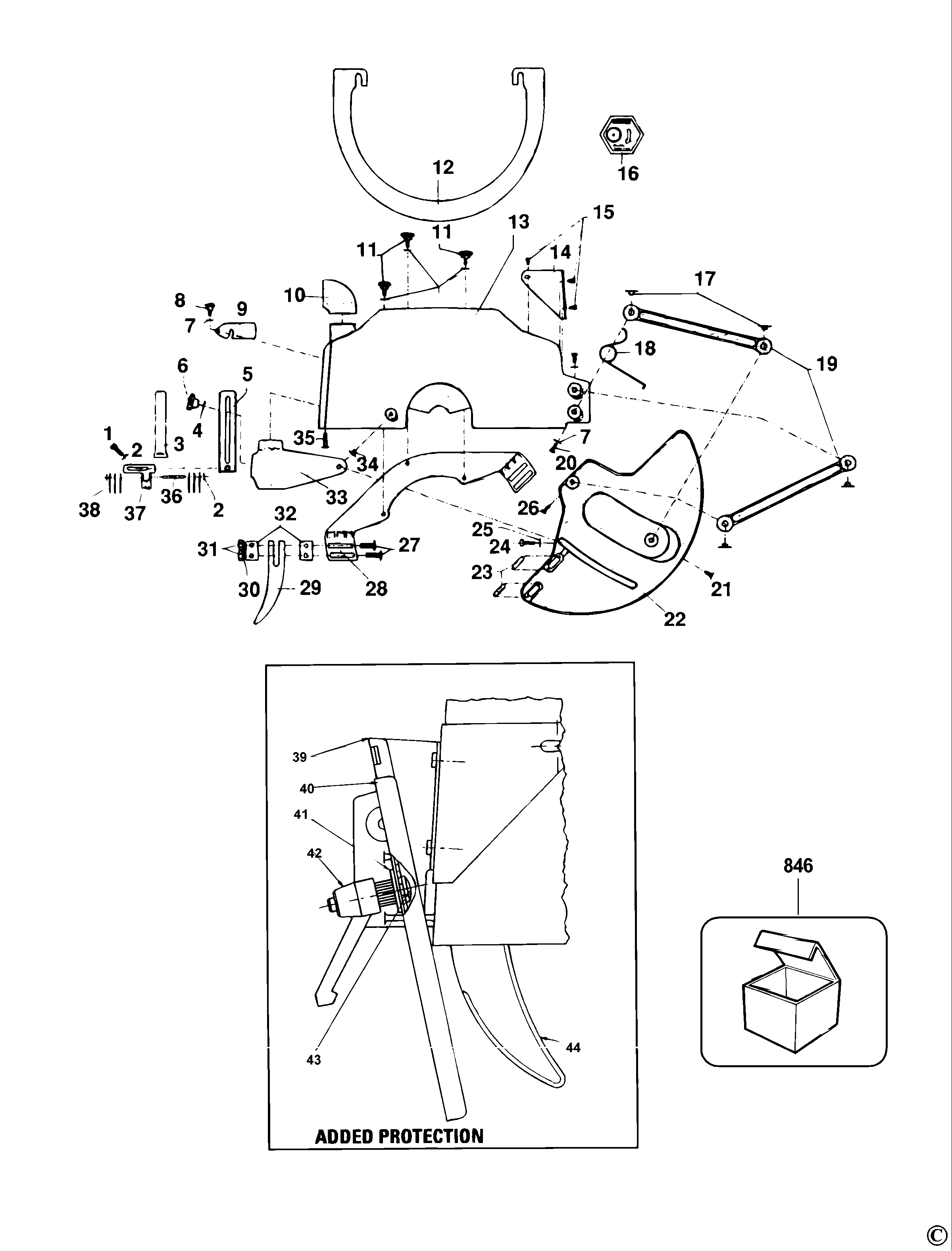

RAS1603---B RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 760219-00 | 1 | SCREW | XJ |  |
||
| 2 | 860074-02 | 1 | WASHER | XJ | |
||
| 3 | 863703-00 | 1 | PROTECTOR | XJ |  |
||
| 4 | 720959-00 | 1 | WASHER | XJ | |
||
| 5 | 863709-00 | 1 | SUPPORT | XJ | |
||
| 6 | 946469-01 | 1 | KNOB | XJ | |
||
| 7 | 860074-01 | 1 | WASHER | XJ | |
||
| 8 | 861842-01 | 1 | KNOB | XJ | |
||
| 9 | 863708-00 | 1 | SQUARE | XJ | |
||
| 10 | 864095-00 | 1 | TUBE EXTRACTION | XJ | |
||
| 12 | 32538 | 1 | PROTECTOR | XJ | |
||
| 13 | N036977 | 1 | GUARD | XJ | |
||
| 14 | 863707-01 | 1 | BRACKET | XJ | |
||
| 15 | 760273-00 | 1 | SCREW | XJ | |
||
| 16 | 862808-00 | 1 | WARNING LABEL | XJ | |
||
| 17 | 864053-00 | 1 | WASHER | XJ | |
||
| 18 | 32539 | 1 | SPRING | XJ | |
||
| 19 | 862089-01 | 1 | LEVER | XJ | |
||
| 20 | 760998-00 | 1 | SCREW | XJ | |
||
| 21 | 249412-20 | 1 | SCREW | XJ | |
||
| 22 | 869325-00 | 1 | LOWER GUARD SA | XJ | |
||
| 23 | 864054-00 | 1 | ROLLER | XJ | |
||
| 24 | 941518-00 | 1 | SCREW | XJ | |
||
| 25 | 860075-00 | 1 | WASHER | XJ | |
||
| 26 | 949889-02 | 1 | SCREW | XJ | |
||
| 27 | 949892-02 | 1 | SCREW | XJ | |
||
| 28 | 862087-90 | 1 | BRACKET | XJ | |
||
| 29 | 863271-00 | 1 | RIVING KNIFE | XJ | |
||
| 30 | 860074-03 | 1 | WASHER | XJ | |
||
| 31 | 860083-04 | 1 | NUT | XJ | |
||
| 32 | 866903-00 | 1 | SPACER | XJ | |||
| 33 | 33962 | 1 | SQUARE | XJ | |
||
| 34 | 863705-00 | 1 | BUSH | XJ | |
||
| 35 | 11378 | 1 | SCREW | XJ | |||
| 37 | 945632-90 | 1 | BRACKET | XJ | |
||
| 38 | 864013-00 | 1 | FINGER | XJ | |
||
| 39 | 863620-00 | 1 | BRACKET | ADDED PROTECTION | XJ | |
|
| 40 | 863621-00 | 1 | GUARD | ADDED PROTECTION | XJ | |
|
| 41 | 941602-00 | 1 | WASHER | ADDED PROTECTION | XJ | |
|
| 42 | 861840-00 | 1 | HANDLE | ADDED PROTECTION | XJ | |
|
| 43 | 860301-16 | 1 | SCREW | ADDED PROTECTION | XJ | |
|
| 44 | 32459 | 1 | RIVING KNIFE | ADDED PROTECTION | XJ | ||
| 846 | 869322-02 | 1 | GUARD SA | XJ | |
