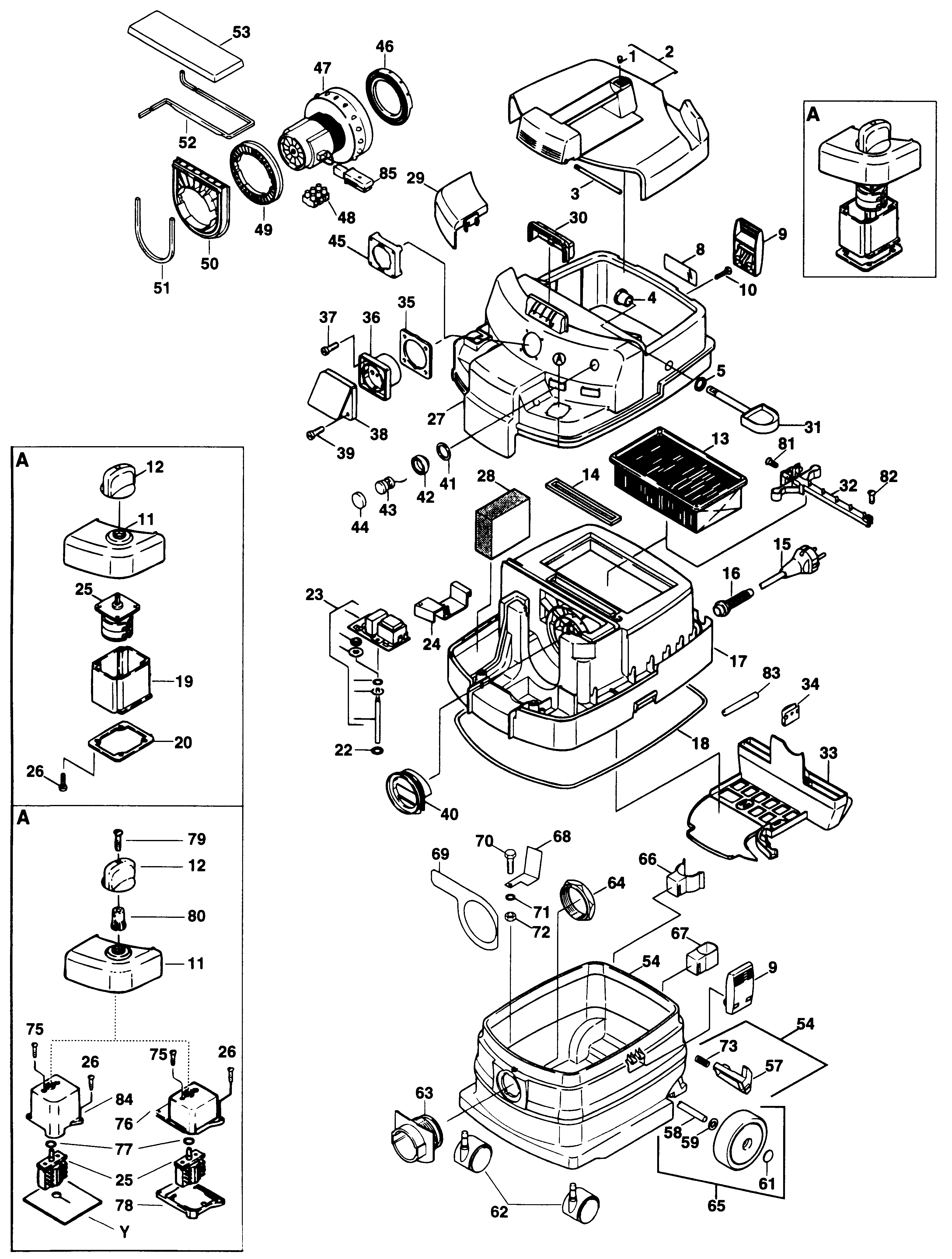

SAS32E VACUUM EXTRACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 279507-00 | 1 | PLUG | GB |  |
||
| 2 | 279508-00 | 1 | COVER | GB | |
||
| 3 | 279509-00 | 1 | PIN | GB | |
||
| 4 | 279510-00 | 1 | BUSH | GB | |
||
| 5 | 279511-00 | 1 | WASHER | GB | |
||
| 8 | 279227-00 | 1 | LABEL | GB | |
||
| 9 | 279512-00 | 4 | BRACKET | GB | |
||
| 10 | 279513-00 | 7 | SCREW | GB | |
||
| 11 | 279514-00 | 1 | COVER | GB | |
||
| 12 | 279515-00 | 1 | KNOB | GB | |
||
| 13 | 279516-00 | 1 | FILTER | GB |  |
||
| 14 | 279517-00 | 1 | SEAL | GB | |
||
| 15 | 560232-00 | 1 | CABLE & PLUG | GB | |
||
| 16 | 279518-00 | 1 | CORD PROTECTOR | GB | |
||
| 17 | 279519-00 | 1 | HOUSING | GB | |
||
| 18 | 279520-00 | 1 | SEAL | GB | |
||
| 19 | 279973-00 | 1 | HOUSING | GB | |
||
| 20 | 279974-00 | 1 | SEAL | USE WITH ITEM 19 | GB | |
|
| 22 | 279521-00 | 2 | WASHER LOCK | GB | |
||
| 23 | 279522-00 | 1 | ELECTRONIC | GB | |
||
| 24 | 279523-00 | 1 | BRACKET | GB | |
||
| 25 | 279524-00 | 1 | SWITCH | USE WITH ITEM 19 | GB | |
|
| 25 | 560560-00 | 1 | SWITCH | USE WITH ITEMS 76/84 | GB | |
|
| 26 | 279238-00 | 4 | SCREW | USE WITH ITEM 19 | GB | |
|
| 26 | 279238-00 | 2 | SCREW | USE WITH ITEMS 76/84 | GB | |
|
| 27 | 279525-00 | 1 | COVER | MOTOR A | GB | |
|
| 27 | 560569-00 | 1 | COVER | MOTOR B, M-AT-DE-FR | GB | |
|
| 27 | 560569-00 | 1 | COVER | MOTOR B, M-BE-LU-NL | GB | |
|
| 27 | 560569-00 | 1 | COVER | GB | |
||
| 28 | 279526-00 | 1 | FILTER | GB | |
||
| 29 | 279527-00 | 1 | COVER | GB | |
||
| 30 | 279528-00 | 1 | COVER | GB | |
||
| 31 | 279529-00 | 1 | KNOB | GB | |
||
| 32 | 279530-00 | 1 | FORK | GB | |
||
| 33 | 279662-00 | 1 | COVER | GB | |
||
| 34 | 279531-00 | 2 | BRACKET | GB | |
||
| 35 | 279532-00 | 1 | SEAL | GB | |
||
| 36 | 560572-00 | 1 | SOCKET | GB | |
||
| 37 | 279303-00 | 2 | SCREW | GB | |
||
| 38 | 279294-00 | 1 | COVER | GB | |
||
| 39 | 279293-00 | 2 | SCREW | GB | |
||
| 40 | 279533-00 | 1 | HOUSING | GB | |
||
| 41 | 279534-00 | 1 | O RING | GB | |
||
| 42 | 279535-00 | 1 | BRACKET | GB | |
||
| 43 | 279536-00 | 1 | LAMP | GB | |
||
| 44 | 279299-00 | 1 | CAP | GB | |
||
| 45 | 279281-00 | 1 | FLANGE | GB | |
||
| 46 | 279537-00 | 1 | SEAL | GB | |
||
| 47 | 560576-00 | 1 | MOTOR | GB | |
||
| 47 | 560575-00 | 1 | MOTOR | MOTOR A | GB | |
|
| 47 | 560575-00 | 1 | MOTOR | MOTOR A | GB | |
|
| 48 | 279539-00 | 1 | TERMINAL BLOCK | GB | |
||
| 49 | 279260-00 | 1 | SEAL | GB | |
||
| 50 | 279540-00 | 1 | FLANGE | GB | |
||
| 51 | 279541-00 | 1 | SEAL | GB | |
||
| 52 | 279542-00 | 1 | SEAL | GB | |
||
| 53 | 279543-00 | 1 | INSULATOR | GB | |
||
| 54 | 279544-00 | 1 | HOUSING | GB | |
||
| 57 | 279546-00 | 1 | CLIP | GB | |
||
| 58 | 279547-00 | 1 | AXLE | GB | |
||
| 59 | 279548-00 | 2 | WASHER | GB | |
||
| 61 | 279550-00 | 2 | DISCS | GB | |
||
| 62 | 279551-00 | 2 | CASTOR | GB | |
||
| 63 | 279552-00 | 1 | CONNECTOR | GB | |
||
| 64 | 279553-00 | 1 | NUT | GB | |
||
| 65 | 279554-00 | 1 | WHEEL SA | GB | |
||
| 66 | 279555-00 | 2 | BRACKET | GB | |
||
| 67 | 279556-00 | 1 | BRACKET | GB | |
||
| 68 | 279557-00 | 1 | PLATE | GB | |
||
| 69 | 279558-00 | 1 | PLATE | GB | |
||
| 70 | 279559-00 | 1 | SCREW | GB | |
||
| 71 | 279560-00 | 1 | WASHER LOCK | GB | |
||
| 72 | 279561-00 | 1 | NUT | GB | |
||
| 73 | 279562-00 | 1 | SPRING | GB | |
||
| 74 | 279627-00 | 1 | SET OF LEAD WIRES | PARTS NOT DRAWN | GB | |
|
| 75 | 560557-00 | 2 | SCREW | GB | |
||
| 76 | 560562-00 | 1 | HOUSING | GB | |
||
| 77 | 560559-00 | 1 | O RING | GB | |
||
| 78 | 560563-00 | 1 | SEAL | GB | |
||
| 79 | 560564-00 | 1 | SCREW | GB | |
||
| 80 | 560565-00 | 1 | CAP | GB | |
||
| 81 | 560566-00 | 1 | SCREW | GB | |
||
| 82 | 560567-00 | 1 | SCREW | GB | |
||
| 83 | 560568-00 | 1 | HOSE | GB | |
||
| 84 | 560558-00 | 1 | HOUSING | GB | |
||
| 85 | 560590-00 | 1 | BRUSH PAIR | GB | |
||
| 856 | 567763-00 | 1 | COUPLING SA | GB | |
