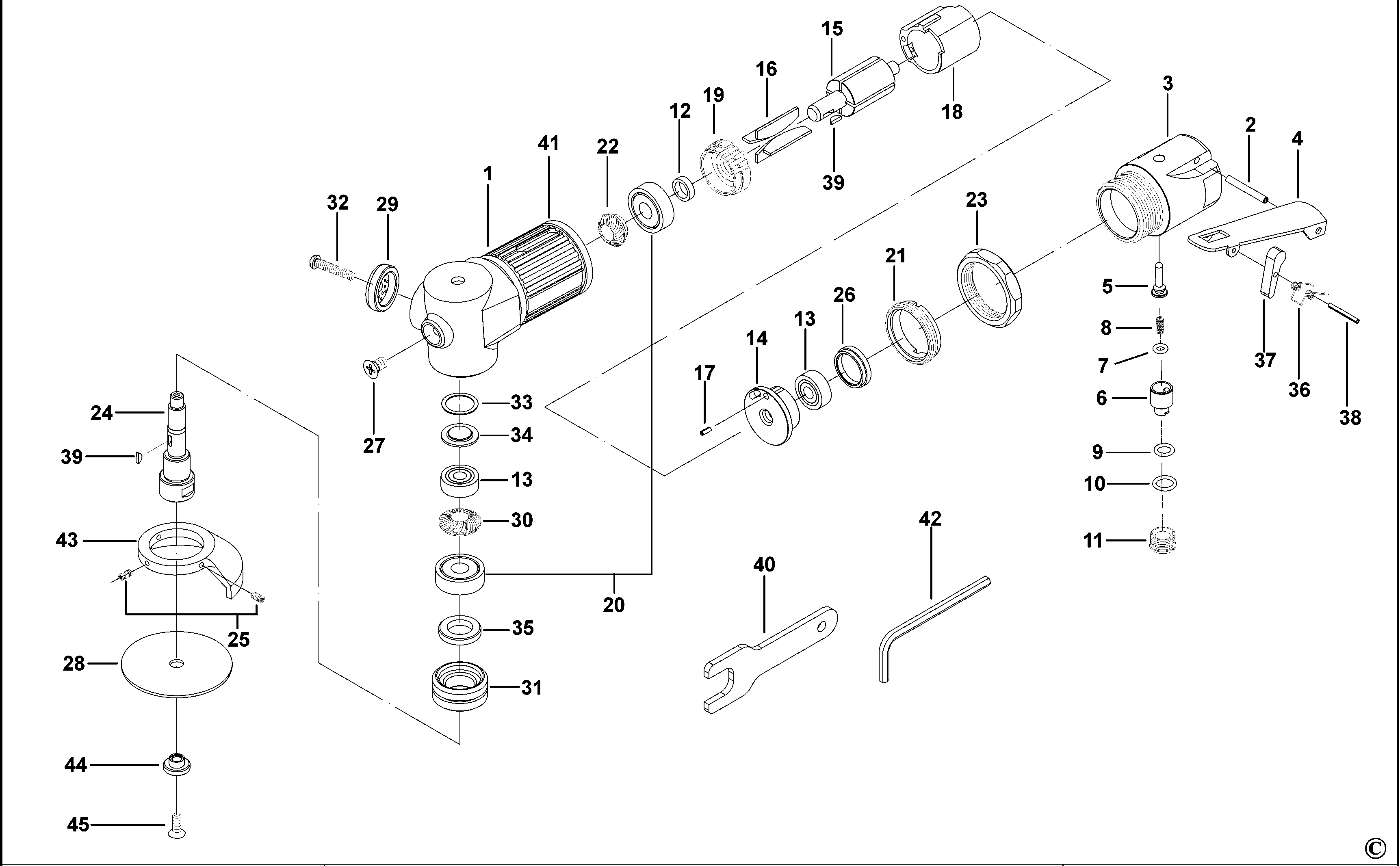

921 A2 ANGLE CUT-OFF TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004722-49 | 1 | HOUSING | XJ |  |
||
| 2 | 1004726-14 | 1 | PIN | XJ | |
||
| 3 | 1004722-51 | 1 | VALVE BODY | XJ | |
||
| 4 | 1004722-52 | 1 | LEVER | XJ | |
||
| 5 | 1004722-53 | 1 | VALVE NEEDLE | XJ | |
||
| 6 | 1004722-54 | 1 | ADJUSTER | XJ | |
||
| 7 | 1004722-55 | 1 | O RING | XJ | |
||
| 8 | 1004722-56 | 1 | SPRING | XJ | |
||
| 9 | 1004722-57 | 1 | O RING | XJ | |
||
| 10 | 1004722-58 | 1 | O RING | XJ | |
||
| 11 | 1004722-59 | 1 | PLUG | XJ | |
||
| 12 | 1004722-60 | 1 | SPACER | XJ | |
||
| 13 | 1004722-61 | 2 | BEARING,BALL | XJ | |
||
| 14 | 1004722-62 | 1 | PLATE | XJ | |
||
| 15 | 1004722-63 | 1 | ROTOR | XJ | |
||
| 16 | 1004722-64 | 4 | ROTOR BLADE | XJ | |
||
| 17 | 1004722-65 | 1 | PIN | XJ | |
||
| 18 | 1004722-66 | 1 | CYLINDER | XJ | |
||
| 19 | 1004722-67 | 1 | PLATE | XJ | |
||
| 20 | 1004726-29 | 2 | BEARING,BALL | XJ | |
||
| 21 | 1004722-69 | 1 | LOCK-NUT | XJ | |
||
| 22 | 1004722-70 | 1 | GEAR | XJ | |
||
| 23 | 1004722-71 | 1 | LOCKING RING | XJ | |
||
| 24 | 1004722-72 | 1 | SPINDLE | XJ | |
||
| 25 | 1004722-73 | 3 | SCREW KIT | XJ | |
||
| 26 | 1004722-74 | 1 | CAP | XJ | |
||
| 27 | 1004722-75 | 1 | SCREW | XJ | |
||
| 28 | 1004722-76 | 1 | WHEEL CUTTING | XJ | |
||
| 29 | 1004722-77 | 1 | COVER | XJ | |
||
| 30 | 1004722-78 | 1 | BEVEL GEAR | XJ | |
||
| 31 | 1004722-79 | 1 | LOCK-NUT | XJ | |
||
| 32 | 1004722-80 | 1 | SCREW | XJ | |
||
| 33 | 1004722-81 | 1 | WASHER | XJ | |
||
| 34 | 1004722-82 | 1 | COVER | XJ | |
||
| 35 | 1004722-83 | 1 | SEAL | XJ | |
||
| 36 | 1004722-84 | 1 | SPRING | XJ | |
||
| 37 | 1004722-85 | 1 | BAR | XJ | |
||
| 38 | 1004722-86 | 1 | PIN | XJ | |
||
| 39 | 1004724-28 | 2 | KEY | XJ | |
||
| 40 | 1004722-88 | 2 | SPANNER | XJ | |
||
| 41 | 1004722-89 | 1 | GRIP | XJ | |
||
| 42 | 1004722-90 | 1 | HEX KEY 4 MM | XJ | |
||
| 43 | 1004722-91 | 1 | COVER | XJ | |
||
| 44 | 1004722-92 | 1 | WASHER | XJ | |
||
| 45 | 1004722-93 | 1 | SCREW | XJ | |
