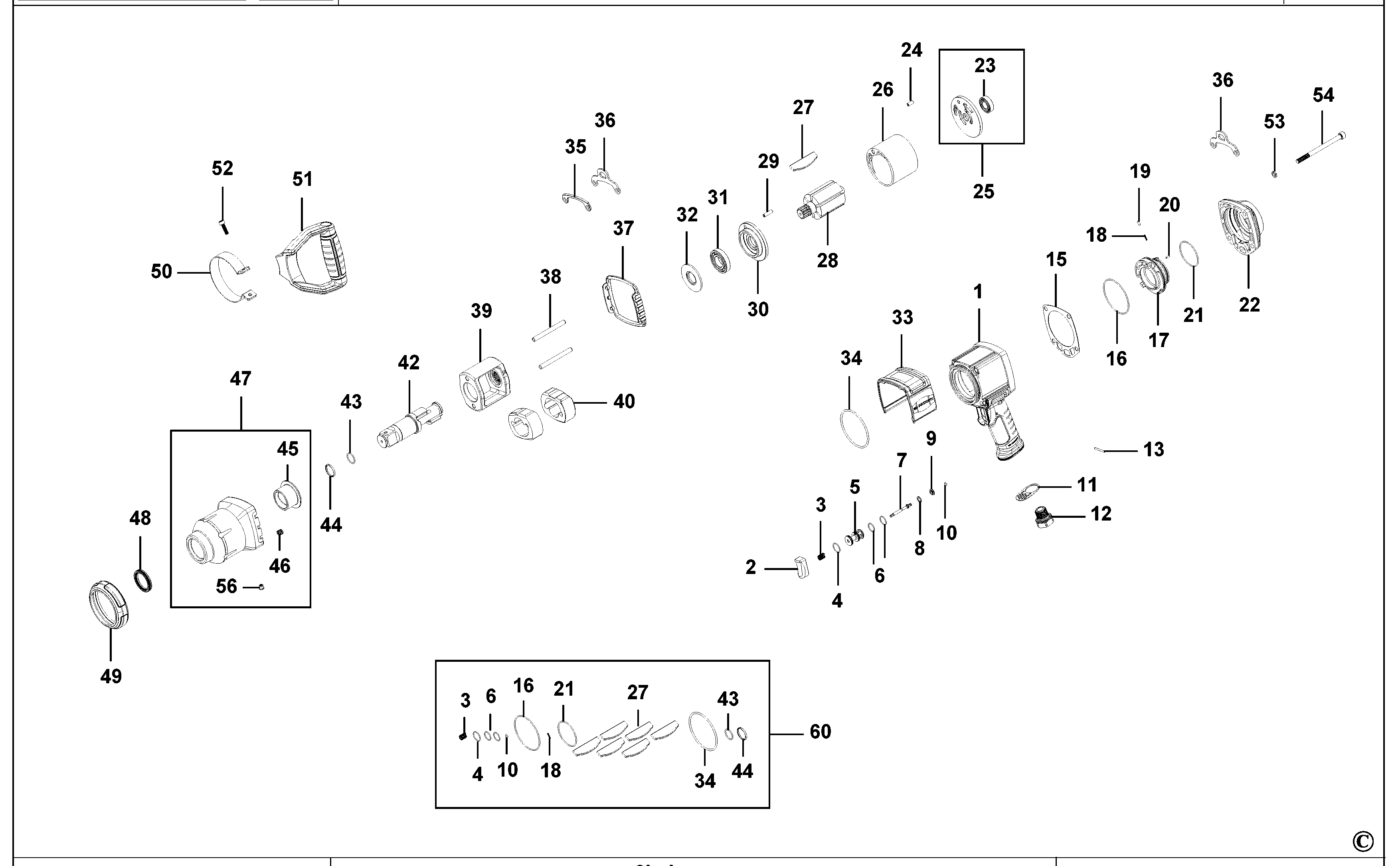

942 PE1 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 30H100082 | 1 | MOTOR HOUSING SA | XJ |  |
||
| 2 | 30Y201230 | 1 | TRIGGER | XJ | |
||
| 3 | 30Y201231 | 1 | SPRING | XJ | |
||
| 4 | 30R200426 | 1 | O RING | XJ | |
||
| 5 | 30P200055 | 1 | VALVE SEAT | XJ | |
||
| 6 | 30R200427 | 2 | O RING | XJ | |
||
| 7 | 30P200056 | 1 | VALVE NEEDLE | XJ | |
||
| 8 | 30Y201234 | 1 | WASHER | XJ | |
||
| 9 | 30P200057 | 1 | VALVE | XJ | |
||
| 10 | 30R200410 | 1 | O RING | XJ | |
||
| 11 | 30Y201235 | 1 | DEFLECTOR | XJ | |
||
| 12 | 30Y201236 | 1 | INLET | XJ | |
||
| 13 | 30Y201237 | 1 | PIN | XJ | |
||
| 15 | 30G200161 | 1 | GASKET | XJ | |
||
| 16 | 30R200413 | 1 | O RING | XJ | |
||
| 17 | 30Y201240 | 1 | REVERSE VALVE | XJ |  |
||
| 18 | 30R200414 | 1 | SPRING | XJ | |
||
| 19 | 30R200415 | 1 | PIN | XJ | |
||
| 20 | 30R200428 | 1 | SPIROL PIN | XJ | |
||
| 21 | 30R200429 | 1 | O RING | XJ | |
||
| 22 | 30Y201244 | 1 | COVERPLATE | XJ | |
||
| 23 | 30R200416 | 1 | BEARING,BALL | XJ | |
||
| 24 | 30R200417 | 1 | SPIROL PIN | XJ | |
||
| 25 | 30M200140 | 1 | PLATE SA | XJ | |
||
| 26 | 30M200141 | 1 | CYLINDER | XJ | |
||
| 27 | 30M100147 | 1 | SERVICE KIT | XJ | |
||
| 28 | 30M200142 | 1 | ROTOR | XJ | |
||
| 29 | 30R200418 | 1 | SPIROL PIN | XJ | |
||
| 30 | 30M200144 | 1 | PLATE | XJ | |
||
| 31 | 30R200419 | 1 | BEARING,BALL | XJ | |
||
| 32 | 31R200149 | 1 | WASHER | XJ | |
||
| 33 | 30H200473 | 1 | GRIP | XJ | |
||
| 34 | 30R200420 | 1 | O RING | XJ | |
||
| 35 | 30Y201094 | 1 | INSERT | XJ | |
||
| 36 | 30Y201095 | 2 | HOOK | XJ | |
||
| 37 | 30G200159 | 1 | GASKET | XJ | |
||
| 38 | 30D200189 | 2 | PIN | XJ | |
||
| 39 | 30D200190 | 1 | HAMMER FRAME | XJ | |
||
| 40 | 30D200191 | 2 | HAMMER | XJ | |
||
| 42 | 30D200193 | 1 | ANVIL | XJ | |
||
| 43 | 31R200192 | 1 | O RING | XJ | |
||
| 44 | 31R200193 | 1 | RETAINER | XJ | |
||
| 45 | 30Y201091 | 1 | BUSHING | XJ | |
||
| 46 | 31R200196 | 4 | HELI-COIL | XJ | |
||
| 47 | 30H100072 | 1 | HOUSING SA | XJ | |
||
| 48 | 30R200422 | 1 | SEAL | XJ | |
||
| 49 | 30Y201099 | 1 | RUBBER BOOT | XJ | |
||
| 50 | 30Y201098 | 1 | STRAP | XJ | |
||
| 51 | 30Y100012 | 1 | SIDE HANDLE | XJ | |
||
| 52 | 31R100033 | 2 | SCREW | XJ | |
||
| 53 | 31R200148 | 4 | WASHER | XJ | |
||
| 54 | 30R200421 | 4 | SCREW | XJ | |
||
| 56 | 31R200138 | 1 | STOP | XJ | |
||
| 60 | 30M100147 | 1 | SERVICE KIT | XJ | |
