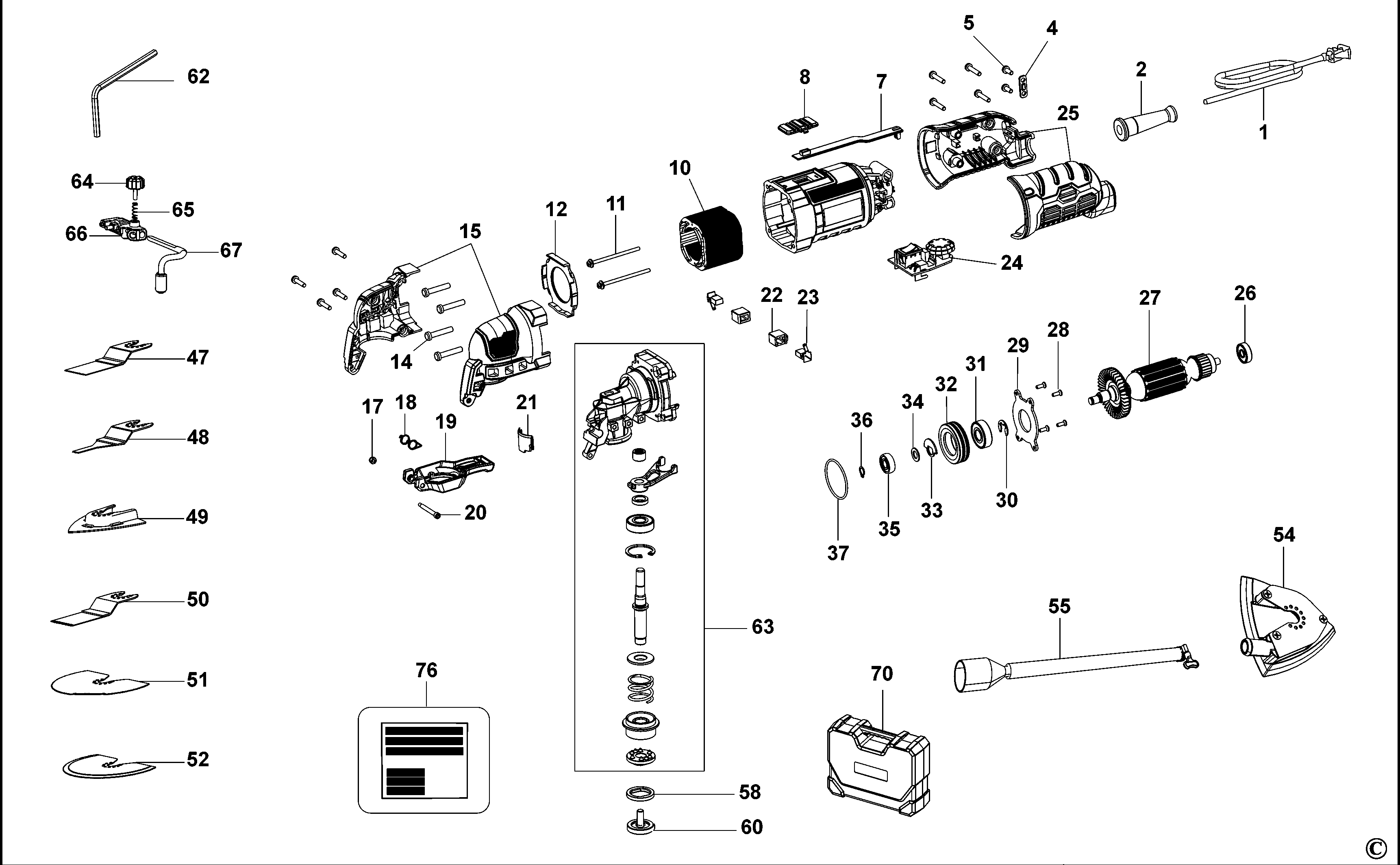

KFFMES650 OSCILLATING TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90598576 | 1 | CORDSET | GB |  |
||
| 2 | 90567404 | 1 | CORD PROTECTOR | GB |  |
||
| 4 | 90583376 | 1 | CORD CLAMP | GB | |
||
| 5 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 7 | 90580670 | 1 | ACTUATOR | GB | |
||
| 8 | 90583292-01 | 1 | KNOB | GB | |
||
| 10 | 90581260-01 | 1 | FIELD SA 230V | GB | |
||
| 11 | 90583341 | 2 | SCREW | M3 | GB | |
|
| 12 | 90580666 | 1 | BAFFLE FAN | GB | |
||
| 14 | 330019-14 | 4 | SCREW | GB | |
||
| 15 | 90582592 | 1 | HOUSING SA | GB | |
||
| 17 | 90581543 | 1 | NUT | GB | |
||
| 18 | 90580672 | 1 | SPRING TORSION | GB | |
||
| 19 | 90583372-01 | 1 | LEVER SA | GB | |
||
| 20 | 90581542 | 1 | SCREW | GB | |
||
| 21 | 90583269 | 1 | GEARCASE COVER | GB | |
||
| 22 | 90583140 | 2 | BRUSHBOX | GB | |
||
| 23 | 90583144 | 2 | BRUSH | GB | |
||
| 24 | 90584731 | 1 | PCB SA | GB | |
||
| 25 | 90597717 | 1 | HANDLE SA | GB | |
||
| 26 | 90581549 | 1 | BEARING | 626ZZ | GB | |
|
| 27 | 90581263-01 | 1 | ARMATURE | 230v | GB | |
|
| 28 | 90583365 | 4 | SCREW | M3 x 8mm | GB | |
|
| 29 | 90581537 | 1 | PLATE | GB | |
||
| 30 | 90581540 | 1 | CLIP | GB | |
||
| 31 | 90581550 | 1 | BEARING | 6000 ZZ | GB | |
|
| 32 | 90581536 | 1 | SLEEVE | GB | |
||
| 33 | 90581541 | 1 | PLATE | GB | |
||
| 34 | 90581562 | 1 | WASHER | GB | |
||
| 35 | 90586419 | 1 | BEARING | S607-2RS | GB | |
|
| 36 | 90581539 | 1 | CLIP | GB | |
||
| 37 | 90581544 | 1 | SEAL | GB | |
||
| 47 | 90586422 | 1 | BLADE - PLUNGE CUT | GB | |
||
| 48 | 90591465 | 1 | BLADE - PLUNGE CUT | GB | |
||
| 49 | 90585321 | 1 | BLADE - CARBIDE RASP | GB | |
||
| 50 | 90585828 | 1 | BLADE - PLUNGE CUT | 1-3/8" | GB | |
|
| 51 | 90585831 | 1 | BLADE - FLUSH CUT | GB | |
||
| 52 | 90585838 | 1 | BLADE - CARBIDE | STA26125-XJ | GB | |
|
| 54 | 90583530 | 1 | PLATEN | GB | |
||
| 55 | 90586018 | 1 | TUBE SA | GB | |
||
| 58 | N440293 | 1 | FLANGE | GB | |
||
| 60 | 90584484 | 1 | OUTER FLANGE | GB | |
||
| 62 | 90584745 | 1 | WRENCH SPECIAL | GB | |
||
| 63 | 90590388 | 1 | HEAD SA | GB | |
||
| 64 | 90583166-01 | 1 | KNOB | GB | |
||
| 65 | 90587263 | 1 | SPRING | GB | |
||
| 66 | 90584467 | 1 | BLOCK | GB | |
||
| 67 | 90584159 | 1 | DEPTH STOP | GB | |
||
| 70 | 90598690-01 | 1 | KITBOX | FME650K | GB | |
|
| 70 | 90598690-01 | 1 | KITBOX | FME650K | GB | |
|
| 76 | N605941 | 1 | RATING LABEL | GB | |
