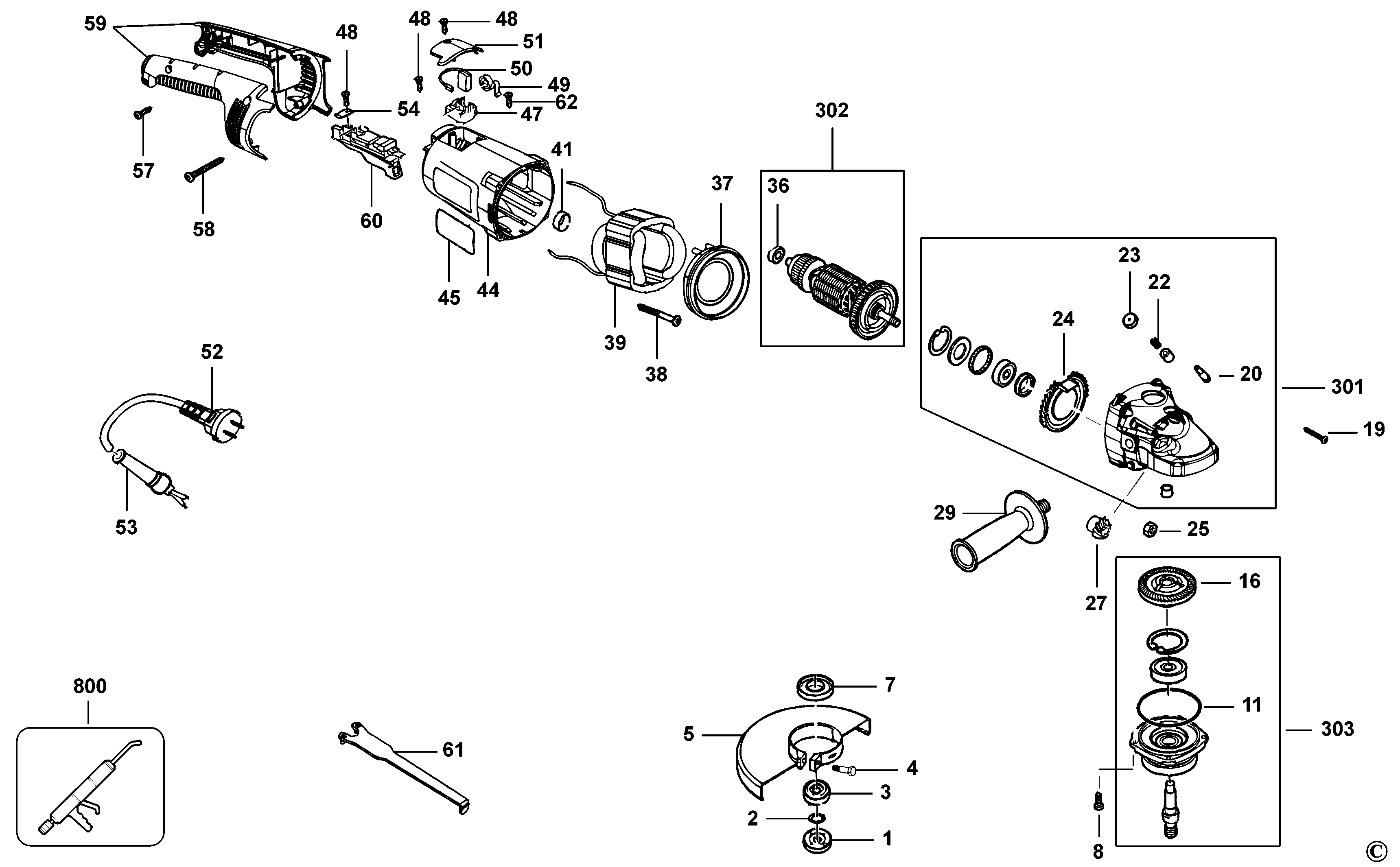

FMEG230 ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4145104008 | 1 | OUTER FLANGE | XJ |  |
||
| 2 | 4240203001 | 1 | O RING | XJ | |
||
| 3 | 4145104002 | 1 | INNER FLANGE | XJ | |
||
| 4 | N688666 | 1 | SCREW | XJ | |
||
| 5 | 4149104001 | 1 | GUARD | 230mm | XJ | |
|
| 7 | 4149101605 | 1 | SEAL | XJ | |
||
| 8 | 49203009 | 4 | SCREW | XJ | |
||
| 11 | 4148003001 | 1 | O RING | XJ | |
||
| 16 | N642054 | 1 | GEAR | XJ | |
||
| 19 | 49206048 | 4 | SCREW | XJ | |
||
| 20 | 4148004007 | 1 | LOCKING PIN | XJ | |
||
| 22 | 4148008003 | 1 | SPRING | XJ | |
||
| 23 | 4149101606 | 1 | CAP | XJ | |
||
| 24 | 4149101607 | 1 | DEFLECTOR | XJ | |
||
| 25 | 49205025 | 1 | NUT | XJ | |
||
| 27 | N642055 | 1 | PINION | XJ | |
||
| 29 | 4148001001 | 1 | SIDE HANDLE | XJ | |
||
| 36 | 49111010 | 1 | BEARING | XJ | |
||
| 37 | 4149101604 | 1 | DEFLECTOR | XJ | |
||
| 38 | N677638 | 2 | SCREW | XJ | |
||
| 39 | N642051 | 1 | FIELD | XJ | |
||
| 41 | N644168 | 1 | SLEEVE BEARING | XJ | |
||
| 44 | N682393 | 1 | HOUSING MOTOR | XJ | |
||
| 45 | N717471 | 1 | RATING PLATE | XJ |  |
||
| 47 | N652422 | 1 | BRUSH HOLDER PAIR | XJ | |
||
| 48 | 49206019 | 5 | SCREW | XJ | |
||
| 49 | N659145 | 1 | SPRING TORSION | XJ | |
||
| 50 | N690992 | 1 | BRUSH PAIR | XJ | |
||
| 51 | N512367 | 1 | BRUSH COVER | XJ | |
||
| 53 | 49303609 | 1 | CORD PROTECTOR | XJ | |
||
| 54 | N632811 | 1 | CORD CLAMP | XJ | |
||
| 57 | 49206020 | 2 | SCREW | self-tapping 4*18; self-tapping 4x18 mm | XJ | |
|
| 58 | 49206004 | 2 | SCREW | XJ | |
||
| 59 | 4149101602 | 1 | HOUSING PAIR | XJ | |
||
| 60 | 4149105606 | 1 | SWITCH | XJ | |
||
| 61 | 4148004004 | 1 | WRENCH SET | XJ | |
||
| 62 | 49203006 | 2 | SCREW | 4 x 10 mm; 4*10 | XJ | ||
| 301 | N688866 | 1 | GEARCASE SA | XJ | |
||
| 302 | N690985 | 1 | ARMATURE SA | XJ | |
||
| 303 | N688856 | 1 | GEAR & SPINDLE SA | XJ | |
||
| 800 | N692256 | 1 | GREASE | 200G | 45g | XJ |
