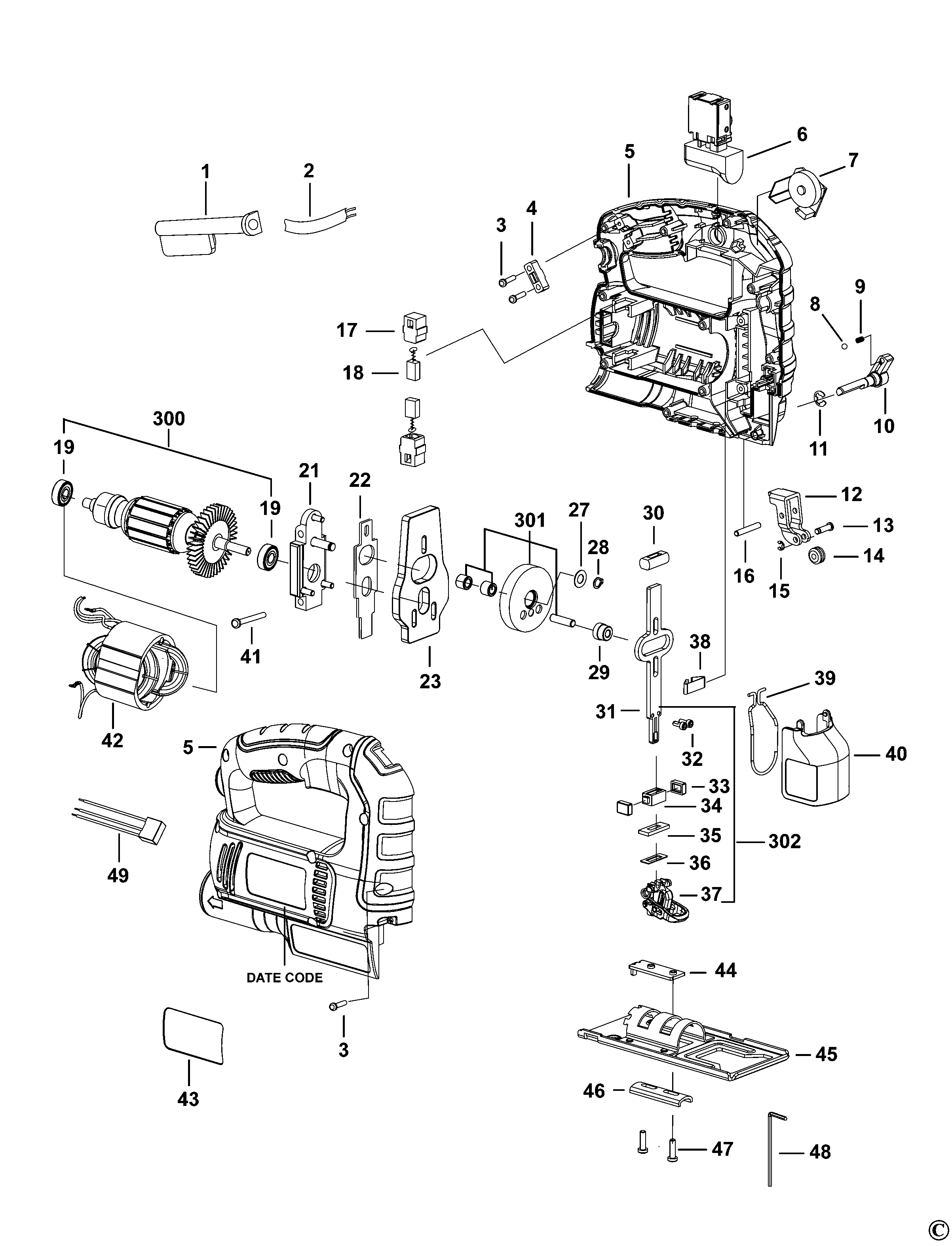

FMES550 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N547083 | 1 | CORD PROTECTOR | XJ |  |
||
| 3 | N468889 | 13 | SCREW | XJ | |
||
| 4 | 4100301008 | 1 | CORD CLAMP | XJ | |
||
| 5 | N589978 | 1 | HOUSING SA | XJ | |
||
| 6 | N543768 | 1 | SWITCH | XJ | |
||
| 7 | N543770 | 1 | SPEED REGULATOR | XJ | |
||
| 8 | N547089 | 1 | BALL | XJ | |
||
| 9 | N547090 | 1 | SPRING | XJ | |
||
| 10 | N543776 | 1 | LOCK KNOB | XJ | |
||
| 11 | 90544008 | 1 | RETAINER | XJ | |
||
| 12 | N544918 | 1 | SUPPORT | XJ | |
||
| 13 | N547070 | 1 | PIN | XJ | |
||
| 14 | N547069 | 1 | ROLLER | XJ | |
||
| 15 | N547073 | 1 | RING | XJ | |
||
| 16 | N543596 | 1 | PIN | XJ | |
||
| 17 | N547067 | 1 | BRUSH HOLDER | XJ | |
||
| 18 | N568940 | 1 | BRUSH | XJ | |
||
| 19 | 49111013 | 2 | BEARING | XJ | |
||
| 21 | N543557 | 1 | PLATE | XJ | |
||
| 22 | N543790 | 1 | SHAFT | XJ | |
||
| 23 | N543564 | 1 | COUNTER BALANCE | XJ | |
||
| 27 | N543575 | 1 | WASHER | XJ | |
||
| 28 | N547068 | 1 | RING | XJ | |
||
| 29 | N543584 | 1 | DRIVE ROLLER | XJ | |
||
| 30 | 810893 | 1 | BEARING | XJ | |
||
| 31 | 479190-00 | 1 | SHAFT | XJ | |
||
| 32 | N552203 | 2 | SCREW | XJ | |
||
| 33 | N543592 | 2 | CARRIER | XJ | |
||
| 34 | N544379 | 1 | BEARING | XJ | |
||
| 35 | N595828 | 1 | FELT SEAL | XJ | |
||
| 36 | 582948-00 | 1 | PLATE | XJ | |
||
| 37 | 90563039 | 1 | BLADE CLAMP | XJ | |
||
| 38 | N544380 | 1 | WASHER | XJ | |
||
| 39 | N596771 | 1 | COVER | XJ | |
||
| 40 | N543780 | 1 | DUST GUARD | XJ | |
||
| 41 | N547082 | 2 | SCREW | XJ | |
||
| 42 | N547064 | 1 | FIELD SA | XJ | |
||
| 44 | N546817 | 1 | PLATE LOCK | XJ | |
||
| 45 | N546815 | 1 | BASE PLATE | XJ | |
||
| 46 | N546816 | 1 | REST PLATE | XJ | |
||
| 47 | N547074 | 2 | SCREW | XJ | |
||
| 48 | N548193 | 1 | WRENCH PIN | XJ | |
||
| 49 | N579960 | 1 | CAPACITOR | XJ | |
||
| 300 | N588354 | 1 | ARMATURE SA | XJ | |
||
| 301 | N579299 | 1 | GEAR SA | XJ | |
||
| 302 | N588356 | 1 | SHAFT SA | XJ | |
