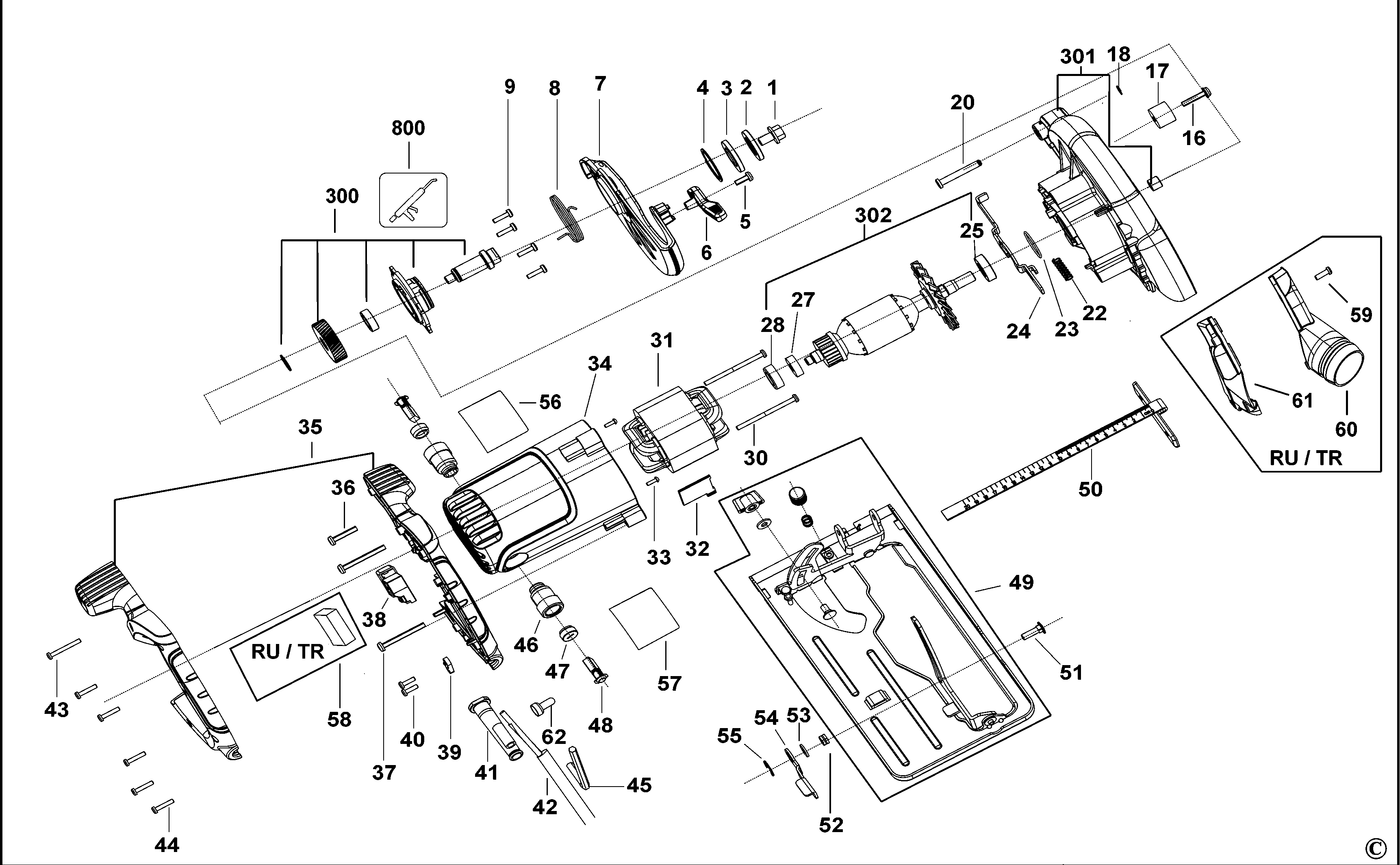

SC12 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N560559 | 1 | SCREW | XJ |  |
||
| 2 | N554842 | 1 | FLANGE | XJ | |
||
| 3 | N553909 | 1 | FLANGE | XJ | |
||
| 4 | 90633041 | 1 | SPRING CLIP | XJ | |
||
| 5 | N582370 | 1 | SCREW | XJ | |
||
| 6 | N572460 | 1 | LEVER | XJ | |
||
| 7 | N631554 | 1 | GUARD LOWER | XJ |  |
||
| 8 | N100006 | 1 | SPRING | XJ | |
||
| 9 | N520080 | 1 | SCREW | XJ | |
||
| 16 | N582381 | 1 | SCREW | XJ | |
||
| 17 | N575496 | 1 | RING | XJ | |
||
| 18 | 90578384 | 1 | RETAINER | XJ | |
||
| 20 | N576774 | 1 | PIN | XJ | |
||
| 22 | N573373 | 1 | SPRING | XJ | |
||
| 23 | N602219 | 1 | RING | XJ | |
||
| 24 | N552648 | 1 | SHAFT | XJ | |
||
| 25 | N650408 | 1 | BEARING | XJ | |
||
| 27 | 49111013 | 1 | BEARING | XJ | |
||
| 28 | 4145203004 | 1 | SLEEVE | XJ | |
||
| 30 | N663226 | 2 | SCREW | XJ | |
||
| 31 | N665318 | 1 | FIELD SA | XJ | |
||
| 32 | N567977 | 1 | CLAMP | XJ | |
||
| 33 | N520083 | 2 | SCREW | XJ | |
||
| 34 | N562975 | 1 | FIELD CASE | XJ | |
||
| 35 | N582952 | 1 | HANDLE SA | XJ | |
||
| 36 | N582378 | 1 | SCREW | XJ | |
||
| 37 | N582376 | 2 | SCREW | XJ | |
||
| 38 | N580768 | 1 | SWITCH | XJ | |
||
| 39 | 4100301008 | 1 | CORD CLAMP | XJ | |
||
| 40 | N582387 | 2 | SCREW | XJ | |
||
| 41 | 90568797 | 1 | CORD PROTECTOR | XJ | |
||
| 43 | N582386 | 1 | SCREW | XJ | |
||
| 44 | N582383 | 5 | SCREW | XJ | |
||
| 45 | 90579371 | 1 | HEX KEY | XJ | |
||
| 46 | N602473 | 2 | BRUSH HOLDER | XJ | |
||
| 47 | 90632247 | 2 | CAP | XJ | |
||
| 48 | N580276 | 1 | BRUSH SA | XJ | |
||
| 49 | N681458 | 1 | SHOE | XJ | |
||
| 50 | N641685 | 1 | FENCE | XJ | |
||
| 51 | N642342 | 1 | BOLT | XJ | |
||
| 52 | N641688 | 1 | WASHER | XJ | |
||
| 53 | N642344 | 1 | NUT | XJ | |
||
| 54 | N611679 | 1 | KNOB | XJ | |
||
| 55 | N603500 | 1 | RING | XJ | |
||
| 57 | N630495 | 1 | LABEL | XJ | |
||
| 58 | 494014 | 1 | CAPACITOR | XJ | |
||
| 59 | 49206001 | 2 | SCREW | XJ | |
||
| 60 | N682782 | 1 | DUST PORT | XJ | |
||
| 61 | N682785 | 1 | DUST PORT | XJ | |
||
| 62 | 49604009 | 1 | TERMINAL | XJ | |
||
| 300 | N638612 | 1 | GEARSHAFT SA | XJ | |
||
| 301 | N723895 | 1 | GUARD UPPER | XJ | |
||
| 302 | N723896 | 1 | ARMATURE SA | XJ | |
||
| 800 | N651692 | 1 | GREASE | 15g | XJ |
