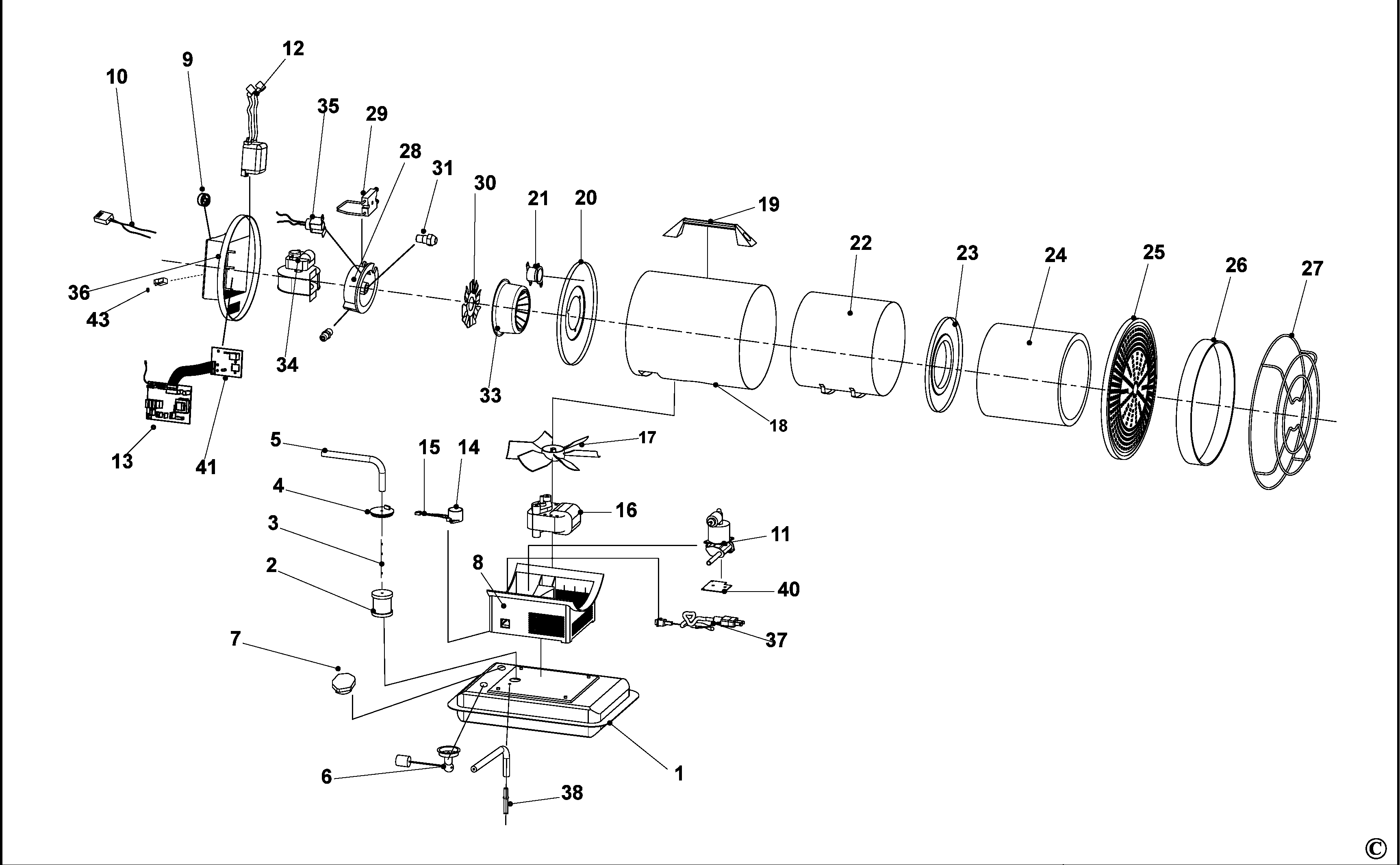

ST-70T-SS-E HEATER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004747-94 | 1 | Fuel tank | XJ |  |
||
| 2 | 1004747-55 | 1 | FILTER SA | <2016 | XJ | |
|
| 2 | 1004747-54 | 1 | FILTER SA | >2017 | XJ | |
|
| 3 | 1004747-60 | 1 | TUBE | XJ | |
||
| 4 | 1004747-56 | 1 | SEAL | XJ | |
||
| 4 | 1004747-56 | 1 | SEAL | XJ | |
||
| 5 | 1004747-65 | 1 | HOSE | XJ | |||
| 5 | 1004784-20 | 1 | HOSE | XJ | |
||
| 5 | 1004784-20 | 1 | HOSE | XJ | |
||
| 6 | 1004747-57 | 1 | GAUGE | XJ | |
||
| 7 | 1004747-58 | 1 | FUEL CAP | XJ | |
||
| 8 | 1004747-61 | 1 | FAN COVER | XJ | |
||
| 9 | 1004747-95 | 1 | KNOB | XJ | |
||
| 10 | 1004747-85 | 1 | SET OF LEAD WIRES | XJ | |
||
| 11 | 1004747-64 | 1 | PUMP SA | XJ | |
||
| 12 | 1004747-87 | 1 | STARTER SA | XJ | |
||
| 13 | 1004747-96 | 1 | PCB | 230v-70 | XJ | |
|
| 14 | 1004747-62 | 1 | SENSOR | XJ | |
||
| 15 | 1004747-63 | 1 | SET OF LEAD WIRES | XJ | |
||
| 16 | 1004747-67 | 1 | MOTOR | XJ | |
||
| 17 | 1004747-97 | 1 | FAN | XJ | |
||
| 18 | 1004747-98 | 1 | FAN COVER | XJ | |
||
| 19 | 1004747-90 | 1 | HANDLE | XJ | |
||
| 20 | 1004747-80 | 1 | SUPPORT | XJ | |
||
| 21 | 1004747-72 | 1 | SWITCH | XJ | |
||
| 22 | 1004747-71 | 1 | INSULATOR | XJ | |
||
| 23 | 1004747-74 | 1 | INSULATOR | XJ | |
||
| 24 | 1004747-73 | 1 | HEATSHIELD | XJ | |
||
| 25 | 1004747-99 | 1 | PLATE | HEAT | XJ | |
|
| 26 | 1004747-88 | 1 | RING | XJ | |
||
| 27 | 1004748-00 | 1 | GUARD | XJ | |||
| 28 | 1004747-76 | 1 | BODY | XJ | |
||
| 29 | 1004747-78 | 1 | SPARK PLUG | XJ | |
||
| 30 | 1004748-01 | 1 | BLADE | XJ | |||
| 31 | 1004748-02 | 1 | NOZZLE | XJ | |
||
| 33 | 1004747-81 | 1 | CAP SA | XJ | |
||
| 34 | 1004747-82 | 1 | MOTOR SA | XJ | |
||
| 35 | 1004747-83 | 1 | SENSOR | XJ | |
||
| 36 | 1004748-03 | 1 | COVER | BACK | XJ | |
|
| 37 | 1004748-04 | 1 | CORDSET | 230V | XJ | |
|
| 38 | 1004747-59 | 1 | PIPE SA | XJ | |
||
| 40 | 1004747-66 | 1 | BRACKET | XJ | |
||
| 41 | 1004748-05 | 1 | PCB | DISPLAY | XJ | |
|
| 43 | 1004747-91 | 1 | SWITCH | XJ | |
