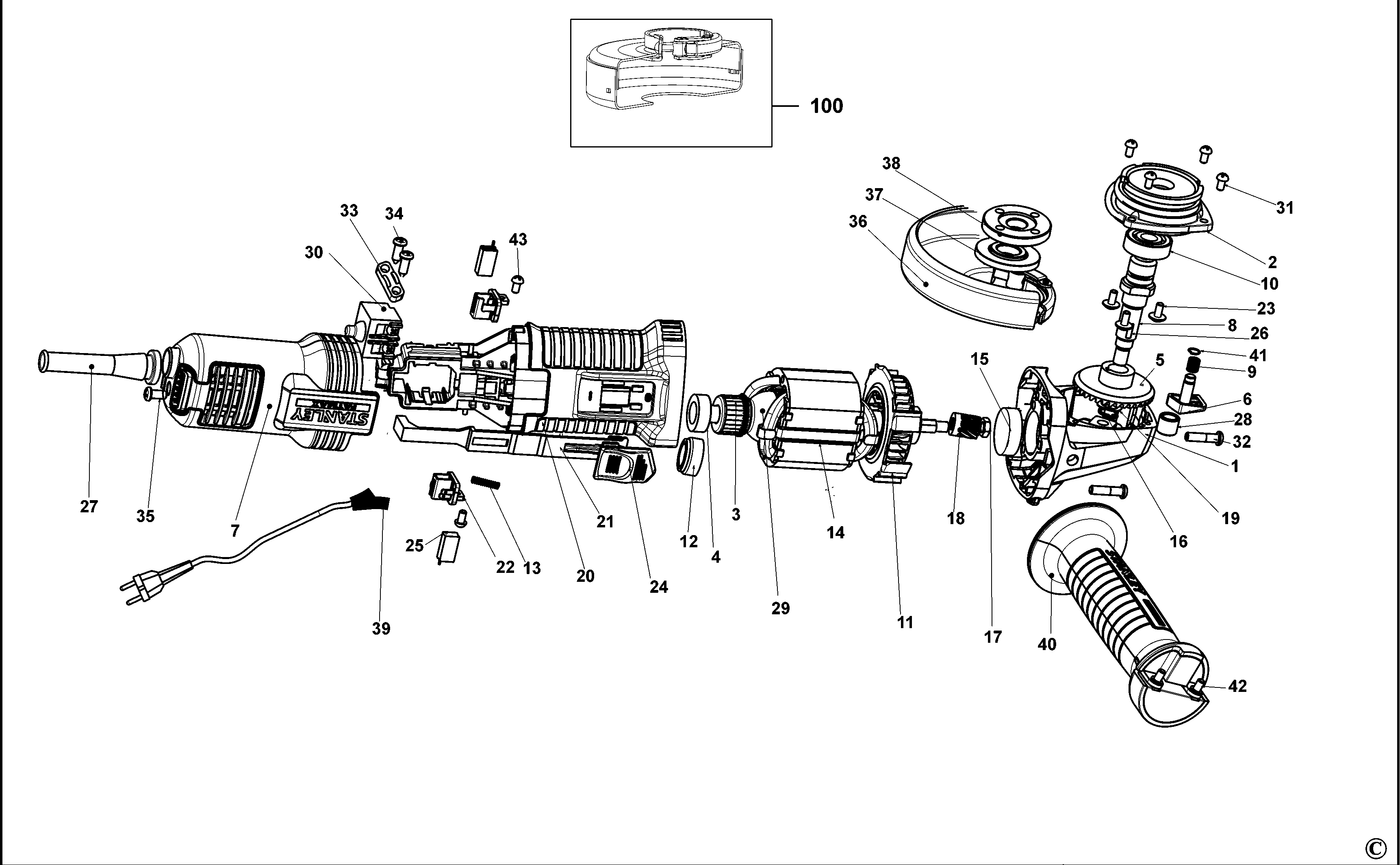

FMEG220 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N529043 | 1 | GEARCASE | GB |  |
||
| 2 | N523621 | 1 | COVER | GB | |
||
| 3 | N522950 | 1 | ARMATURE | w/ bearings | GB | |
|
| 4 | 90609688 | 1 | BEARING,BALL | GB | |
||
| 5 | N505684 | 1 | GEAR | GB | |
||
| 6 | N505677 | 1 | LOCK BUTTON | GB | |
||
| 7 | N505671 | 1 | COVER | GB |  |
||
| 8 | N549779 | 1 | OUTPUT SHAFT SA | GB | |
||
| 9 | N522581 | 1 | SPRING | GB | |
||
| 10 | 90605281 | 1 | BEARING,BALL | GB | |
||
| 11 | N534611 | 1 | BAFFLE FAN | GB | |
||
| 12 | N541114 | 1 | SLEEVE | GB | |
||
| 13 | 90606067 | 1 | SPRING | GB | |
||
| 14 | N512999 | 1 | FIELD SA | GB | |
||
| 15 | 90532404 | 1 | BEARING | GB | |
||
| 16 | N529735 | 1 | RING | GB | |
||
| 17 | N528683 | 1 | NUT | GB | |
||
| 18 | N505694 | 1 | PINION | GB | |
||
| 19 | 90604831 | 1 | WASHER | GB | |
||
| 20 | N528730 | 1 | HOUSING SA | GB | |
||
| 21 | 90604790 | 1 | LINK | GB | |
||
| 22 | N532429 | 2 | HOLDER | GB | |
||
| 23 | N118088 | 3 | SCREW | GB | |
||
| 24 | N528739 | 1 | SWITCH | GB | |
||
| 25 | N520407 | 2 | BRUSH | GB | |
||
| 26 | N532793 | 1 | KEY | SPINDLE KEY | GB | |
|
| 27 | 90604794 | 1 | CORD PROTECTOR | GB | |
||
| 28 | N529722 | 1 | BEARING | BALL | GB | |
|
| 29 | N534576 | 1 | ARMATURE | GB | |
||
| 30 | N550561 | 1 | SWITCH | GB | |
||
| 31 | 90568551 | 4 | SCREW | GB | |
||
| 32 | N529725 | 4 | SCREW | GB | |
||
| 33 | N529726 | 1 | CLAMP | GB | |
||
| 34 | N529727 | 2 | SCREW | GB | |
||
| 35 | N546037 | 1 | SCREW | GB | |
||
| 36 | N530142 | 1 | GUARD SA | 125MM | GB | |
|
| 37 | 90604847 | 1 | FLANGE | GB | |
||
| 38 | 596386-00 | 1 | OUTER FLANGE | M14 | GB | |
|
| 39 | N556523 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 40 | N544300 | 1 | HANDLE SA | GB | |
||
| 41 | N529723 | 1 | CLIP | GB | |
||
| 42 | 90604852 | 1 | WRENCH SPECIAL | GB | |
||
| 43 | N529730 | 2 | SCREW | GB | |
||
| 100 | N542445 | 1 | GUARD | TYPE 41 | CUT OFF GUARD | GB | |
| 800 | N539070 | 1 | RATING LABEL | GB |
