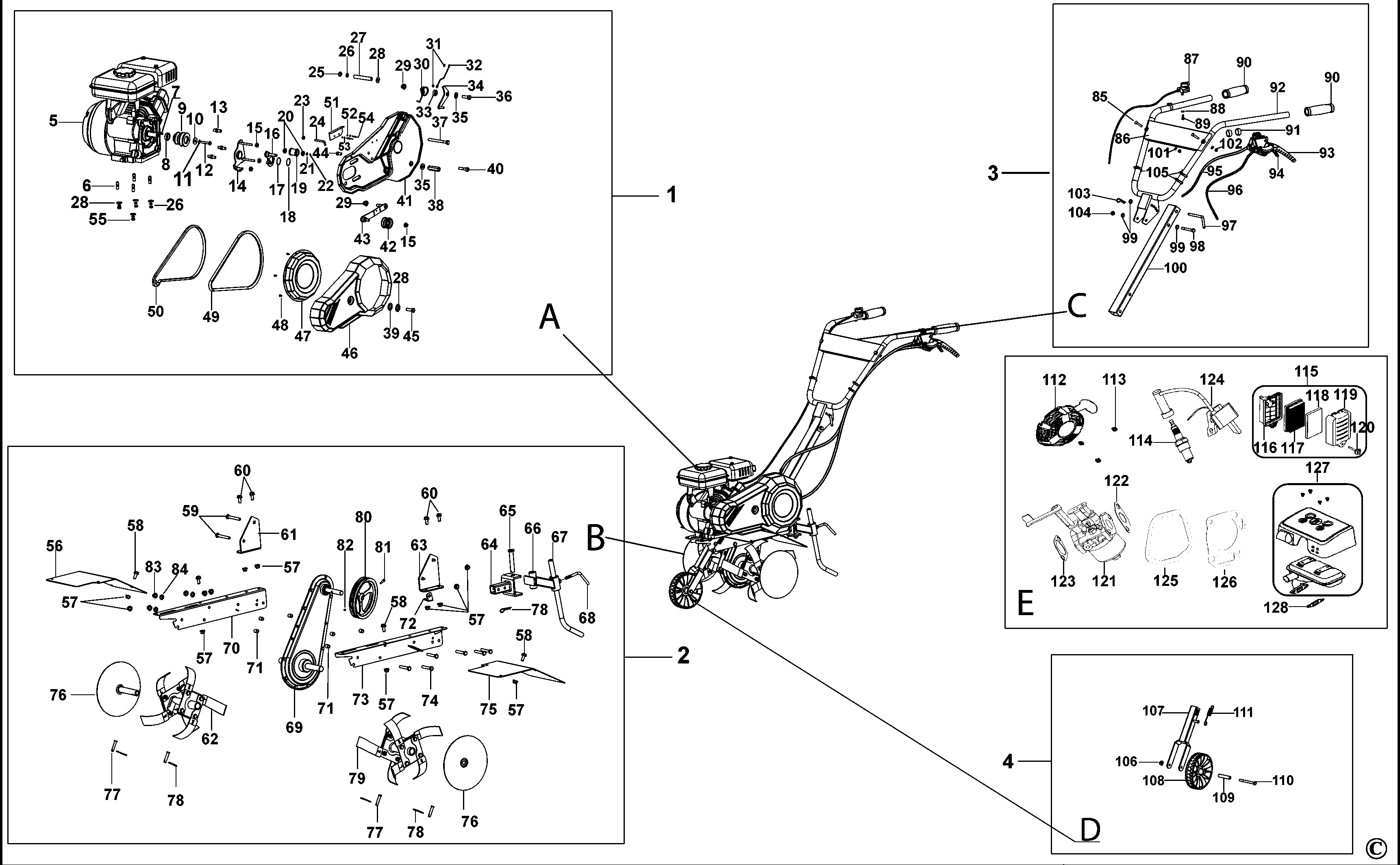

SGT-25-450H TILLER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E604400020-A | 1 | MOTOR SA | 94cc | 4-STROKE OHV | XJ |  |
| 2 | E604400020-B | 1 | GEARBOX SA | + BLADE SA | XJ | |
|
| 3 | E604400020-C | 1 | HANDLE SA | XJ | |
||
| 4 | E604400020-D | 1 | WHEEL SA | XJ | |
||
| 5 | E604400020-A1 | 1 | MOTOR | PETROL | XJ | |
|
| 6 | E604400020-A2 | 4 | BOLT | M8×15 | XJ | |
|
| 7 | E604400020-A3 | 1 | KEY | 5×35 | XJ | |
|
| 8 | E604400020-A4 | 1 | BUSH | XJ | |
||
| 9 | E604400020-A5 | 1 | PULLEY | XJ | |
||
| 10 | E604400020-A6 | 1 | WASHER | D24×d6.3×2 | XJ | |
|
| 11 | E604400020-A7 | 1 | WASHER SPRING | XJ | |
||
| 12 | E604400020-A8 | 1 | BOLT | M6×45 | XJ | |
|
| 13 | E604400020-A9 | 3 | BOLT | XJ | |
||
| 14 | E604400020-A10 | 1 | SUPPORT | XJ | |
||
| 15 | E604400020-A11 | 4 | LOCK-NUT | XJ | |
||
| 16 | E604400020-A12 | 1 | PLATE | XJ | |
||
| 17 | E604400020-A13 | 1 | WASHER | XJ | |
||
| 18 | E604400020-A14 | 1 | COLLAR | XJ | |
||
| 19 | E604400020-A15 | 1 | WHEEL | Tension | XJ | |
|
| 20 | E604400020-A16 | 2 | BEARING | 698-2Z | XJ | |
|
| 21 | E604400020-A17 | 1 | WASHER | XJ | |
||
| 22 | E604400020-A18 | 1 | COLLAR | D8 | XJ | |
|
| 23 | E604400020-A19 | 1 | LOCK NUT | M5 | XJ | |
|
| 24 | E604400020-A20 | 1 | LEVER | GAG POST | XJ | |
|
| 25 | E604400020-A21 | 1 | NUT M8 | XJ | |
||
| 26 | E604400020-A22 | 5 | WASHER SPRING | M8 | XJ | |
|
| 27 | E604400020-A23 | 1 | BUSH | XJ | |
||
| 28 | E604400020-A24 | 6 | WASHER | D20×d8.5×2 | XJ | |
|
| 29 | E604400020-A25 | 2 | NUT M8 | XJ | |
||
| 30 | E604400020-A26 | 1 | SPRING | XJ | |
||
| 31 | E604400020-A27 | 2 | COLLAR | XJ | |
||
| 32 | E604400020-A28 | 1 | WIRE | STEEL | XJ | |
|
| 33 | E604400020-A29 | 1 | BUSH | XJ | |
||
| 34 | E604400020-A30 | 1 | LEVER | XJ | |
||
| 35 | E604400020-A31 | 2 | WASHER | D24×d8.5×2 | XJ | |
|
| 36 | E604400020-A32 | 1 | BOLT | M8×25 | XJ | |
|
| 37 | E604400020-A33 | 1 | BOLT | M8×105 | XJ | |
|
| 38 | E604400020-A34 | 1 | ROD | XJ | |
||
| 39 | E604400020-A35 | 1 | WASHER | RUBBER | XJ | |
|
| 40 | E604400020-A36 | 1 | SCREW | M8×30 | XJ | |
|
| 41 | E604400020-A37 | 1 | BELT COVER | XJ | |
||
| 42 | E604400020-A38 | 1 | WHEEL | TENSION | XJ | |
|
| 43 | E604400020-A39 | 1 | PLATE | XJ | |
||
| 44 | E604400020-A40 | 1 | BOLT | M8×20 | XJ | |
|
| 45 | E604400020-A41 | 1 | BOLT | M8×20 | XJ | |
|
| 46 | E604400020-A42 | 1 | BELT COVER | XJ | |
||
| 47 | E604400020-A43 | 1 | COVER | XJ | |
||
| 48 | E604400020-A44 | 3 | SCREW | ST4×8-F | XJ | |
|
| 49 | E604400020-A45 | 1 | V-BELT | Z-V-950 | XJ |  |
|
| 50 | E604400020-A46 | 1 | V-BELT | V-960 | XJ | |
|
| 51 | E604400020-A47 | 1 | BRACKET | XJ | |
||
| 52 | E604400020-A48 | 2 | WASHER | D5 | XJ | |
|
| 53 | E604400020-A49 | 2 | BUSH | XJ | |
||
| 54 | E604400020-A50 | 2 | RIVET | XJ | |
||
| 55 | E604400020-A51 | 4 | LOCK NUT | M8 | XJ | |
|
| 56 | E604400020-B1 | 1 | GUARD | XJ | |
||
| 57 | E604400020-B2 | 13 | LOCK NUT | XJ | |
||
| 58 | E604400020-B3 | 4 | BOLT | M8×16 | XJ | |
|
| 59 | E604400020-B4 | 2 | BOLT | M8×70 | XJ | |
|
| 60 | E604400020-B5 | 4 | BOLT | M8×20 | XJ | |
|
| 61 | E604400020-B6 | 1 | SUPPORT | XJ | |
||
| 62 | E604400020-B7 | 1 | BLADE SA | XJ | |
||
| 63 | E604400020-B8 | 1 | SUPPORT | XJ | |
||
| 64 | E604400020-B9 | 1 | BASE | XJ | |
||
| 65 | E604400020-B10 | 1 | PIN | XJ | |
||
| 66 | E604400020-B11 | 1 | SUPPORT | XJ | |
||
| 67 | E604400020-B12 | 1 | STRUT | XJ | |
||
| 68 | E604400020-B13 | 1 | TIE | XJ | |
||
| 69 | E604400020-B14 | 1 | COVER SA | Transmission | XJ | |
|
| 70 | E604400020-B15 | 1 | MOUNTING BRACKET | XJ | |
||
| 71 | E604400020-B16 | 6 | BUSH | XJ | |
||
| 72 | E604400020-B17 | 1 | PLATE | XJ | |
||
| 73 | E604400020-B18 | 1 | MOUNTING BRACKET | XJ | |
||
| 74 | E604400020-B19 | 6 | BOLT | HEX M8×50 | XJ | |
|
| 75 | E604400020-B20 | 1 | GUARD | XJ | |
||
| 76 | E604400020-B21 | 2 | BLADE | XJ | |
||
| 77 | E604400020-B22 | 4 | PIN | XJ | |
||
| 78 | E604400020-B23 | 5 | PIN | XJ | |
||
| 79 | E604400020-B24 | 1 | BLADE SA | XJ | |
||
| 80 | E604400020-B25 | 1 | WHEEL | XJ | |
||
| 81 | E604400020-B26 | 1 | LOCK NUT | XJ | |
||
| 82 | E604400020-B27 | 1 | BOLT | M6×30 | XJ | |
|
| 83 | E604400020-B28 | 3 | LOCK NUT | M8 | XJ | |
|
| 84 | E604400020-B29 | 3 | WASHER | XJ | |
||
| 85 | E604400020-C1 | 2 | BOLT | M6×35 | XJ | |
|
| 86 | E604400020-C2 | 1 | PLATE | XJ | |
||
| 87 | E604400020-C3 | 1 | SWITCH | STOP | XJ | |
|
| 88 | E604400020-C4 | 1 | WASHER | D5 | XJ | |
|
| 89 | E604400020-C5 | 1 | SCREW | M4×20 | XJ | |
|
| 90 | E604400020-C6 | 2 | HANDLE | Rubber | XJ | |
|
| 91 | E604400020-C7 | 2 | TUBE | XJ | |
||
| 92 | E604400020-C8 | 1 | HANDLE SA | XJ | |
||
| 93 | E604400020-C9 | 1 | HANDLE | Forward | XJ | |
|
| 94 | E604400020-C10 | 1 | HANDLE | Reverse | XJ | |
|
| 95 | E604400020-C11 | 1 | CABLE | Reverse | XJ | |
|
| 96 | E604400020-C12 | 1 | CABLE | Forward | XJ | |
|
| 97 | E604400020-C13 | 1 | SCREW | XJ | |
||
| 98 | E604400020-C14 | 1 | BOLT | HEX M8×70 | XJ | |
|
| 99 | E604400020-C15 | 3 | WASHER | XJ | |
||
| 100 | E604400020-C16 | 1 | TUBE | XJ | |
||
| 101 | E604400020-C17 | 2 | WASHER | D6 | XJ | |
|
| 102 | E604400020-C18 | 2 | LOCK NUT | HEX | XJ | |
|
| 103 | E604400020-C19 | 1 | COTTER PIN | XJ | |
||
| 104 | E604400020-C20 | 1 | LOCK NUT | M8 | XJ | |
|
| 105 | E604400020-C21 | 4 | CLIP CABLE | XJ | |
||
| 106 | E604400020-D1 | 1 | LOCK NUT | XJ | |
||
| 107 | E604400020-D2 | 1 | SUPPORT | XJ | |
||
| 108 | E604400020-D3 | 1 | WHEEL | XJ | |
||
| 109 | E604400020-D4 | 1 | BUSHING | XJ | |
||
| 110 | E604400020-D5 | 1 | BOLT | HEX M8×75 | XJ | |
|
| 111 | E604400020-D6 | 1 | SPRING | XJ | |
||
| 112 | E604400020-E1 | 1 | STARTER SA | XJ | |
||
| 113 | E604400020-E1-1 | 3 | BOLT | M6×8 | XJ | |
|
| 114 | E604400020-E2 | 1 | SPARK PLUG | XJ | |
||
| 115 | E604400020-E3 | 1 | FILTER SA | XJ | |
||
| 116 | E604400020-E3-1 | 1 | COVER | XJ | |
||
| 117 | E604400020-E3-2 | 1 | GASKET | XJ | |
||
| 118 | E604400020-E3-3 | 1 | FOAM | XJ | |
||
| 119 | E604400020-E3-4 | 1 | HOUSING UPPER | XJ | |
||
| 120 | E604400020-E3-5 | 2 | COVER | XJ | |
||
| 121 | E604400020-E4 | 1 | CARBURETTOR SA | XJ | |
||
| 122 | E604400020-E4-1 | 1 | GASKET | XJ | |
||
| 123 | E604400020-E4-2 | 1 | GASKET | XJ | |
||
| 124 | E604400020-E5 | 1 | COIL SA | Ignition | XJ | |
|
| 125 | E604400020-E6 | 1 | GASKET | XJ | |
||
| 126 | E604400020-E7 | 1 | GASKET | XJ | |
||
| 127 | E604400020-E8 | 1 | Muffler | XJ | |
||
| 128 | E604400020-E8-1 | 1 | GASKET | XJ | |
