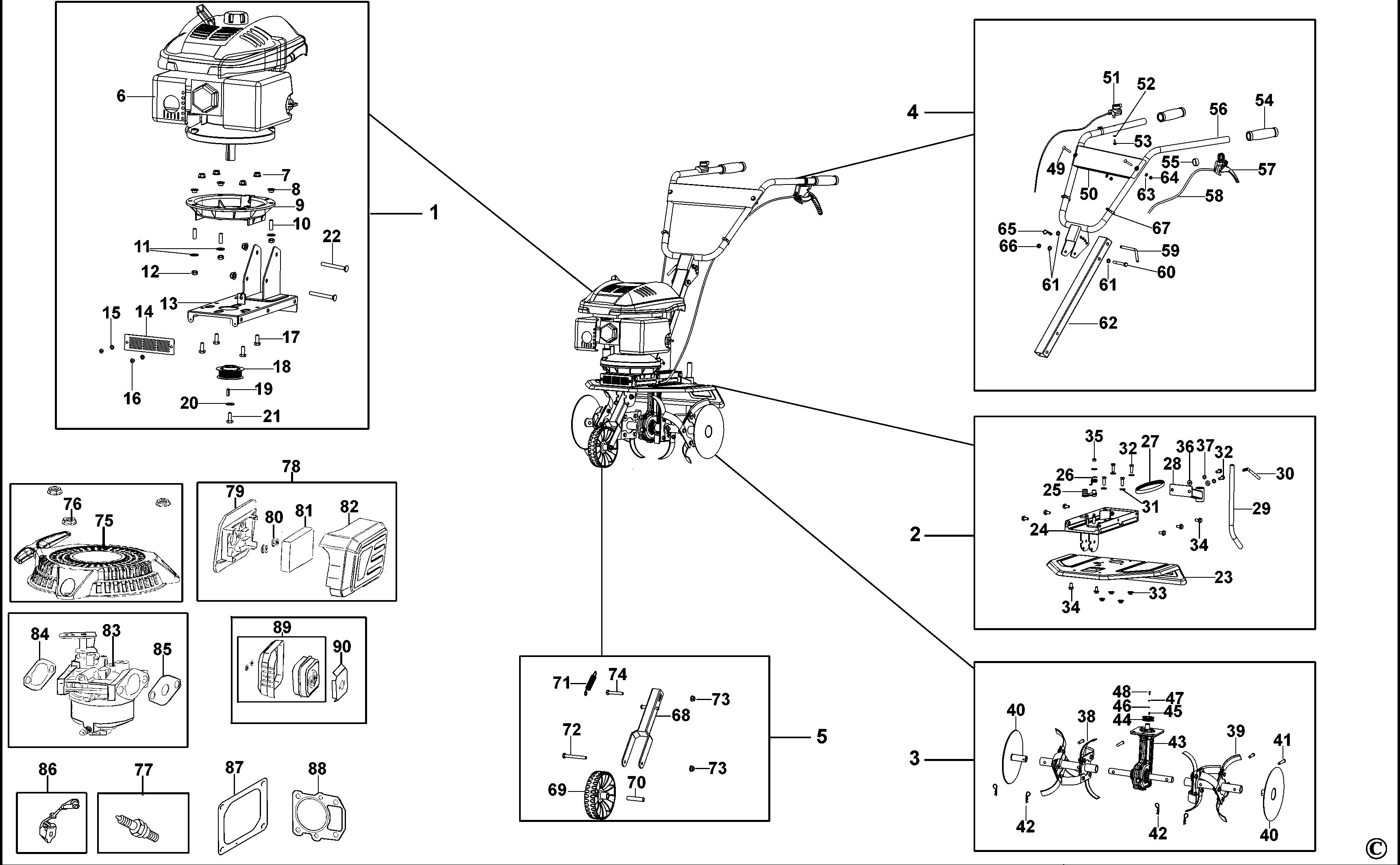

SGT-25-450V TILLER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E604400010-A | 1 | MOTOR SA | 4-STROKE OHV | XJ |  |
|
| 2 | E604400010-B | 1 | BOX | XJ | |
||
| 3 | E604400010-C | 1 | GEARBOX SA | XJ | |
||
| 4 | E604400010-D | 1 | HANDLE SA | XJ | |
||
| 5 | E604400010-E | 1 | WHEEL SA | XJ | |
||
| 6 | E604400010-A1 | 1 | MOTOR SA | 1.8KW Petrol Engine | XJ | |
|
| 7 | E604400010-A2 | 6 | LOCK NUT | XJ | |
||
| 8 | E604400010-A3 | 3 | BUSHING | XJ | |
||
| 9 | E604400010-A4 | 1 | COUPLING | XJ |  |
||
| 10 | E604400010-A5 | 3 | BOLT | XJ | |
||
| 11 | E604400010-A6 | 3 | WASHER | XJ | |
||
| 12 | E604400010-A7 | 3 | LOCK NUT | XJ | |
||
| 13 | E604400010-A8 | 1 | COVER | XJ | |
||
| 14 | E604400010-A9 | 1 | COVER | XJ | |
||
| 15 | E604400010-A10 | 2 | WASHER | XJ | |
||
| 16 | E604400010-A11 | 2 | SCREW | XJ | |
||
| 17 | E604400010-A12 | 4 | BOLT | XJ | |
||
| 18 | E604400010-A13 | 1 | WHEEL | XJ | |
||
| 19 | E604400010-A14 | 1 | KEY | XJ | |
||
| 20 | E604400010-A15 | 1 | WASHER | XJ | |
||
| 21 | E604400010-A16 | 1 | BOLT | XJ | |
||
| 22 | E604400010-A17 | 2 | BOLT | XJ | |
||
| 23 | E604400010-B1 | 1 | COVER SA | XJ | |
||
| 24 | E604400010-B2 | 1 | BOX | XJ | |
||
| 25 | E604400010-B3 | 1 | TENSIONING PULLEY | XJ | |
||
| 26 | E604400010-B4 | 1 | SPRING | XJ | |
||
| 27 | E604400010-B5 | 1 | BELT | XJ | |
||
| 28 | E604400010-B6 | 1 | SUPPORT | XJ | |
||
| 29 | E604400010-B7 | 1 | STRUT | XJ | |
||
| 30 | E604400010-B8 | 1 | SCREW | XJ | |
||
| 31 | E604400010-B9 | 5 | WASHER | XJ | |
||
| 32 | E604400010-B10 | 6 | BOLT | XJ | |
||
| 33 | E604400010-B11 | 4 | LOCK NUT | XJ | |
||
| 34 | E604400010-B12 | 8 | BOLT | XJ | |
||
| 35 | E604400010-B13 | 1 | LOCK NUT | XJ | |
||
| 36 | E604400010-B14 | 2 | WASHER | XJ | |
||
| 37 | E604400010-B15 | 2 | WASHER SPRING | XJ | |
||
| 38 | E604400010-C1 | 1 | BLADE SA | XJ | |
||
| 39 | E604400010-C2 | 1 | BLADE SA | XJ | |
||
| 40 | E604400010-C3 | 2 | DISC | XJ | |
||
| 41 | E604400010-C4 | 4 | PIN | XJ | |
||
| 42 | E604400010-C5 | 4 | COTTER PIN | XJ | |
||
| 43 | E604400010-C6 | 1 | GEARBOX SA | XJ | |
||
| 44 | E604400010-C7 | 1 | WHEEL | XJ | |
||
| 45 | E604400010-C8 | 1 | KEY | XJ | |
||
| 46 | E604400010-C9 | 1 | WASHER | XJ | |
||
| 47 | E604400010-C10 | 1 | WASHER SPRING | XJ | |
||
| 48 | E604400010-C11 | 1 | BOLT | XJ | |
||
| 49 | E604400010-D1 | 2 | BOLT | XJ | |
||
| 50 | E604400010-D2 | 1 | PLATE | XJ | |
||
| 51 | E604400010-D3 | 1 | SWITCH | XJ | |
||
| 52 | E604400010-D4 | 1 | WASHER | XJ | |
||
| 53 | E604400010-D5 | 1 | SCREW | XJ | |
||
| 54 | E604400010-D6 | 2 | HANDLE COVER | XJ | |
||
| 55 | E604400010-D7 | 1 | TUBE | XJ | |
||
| 56 | E604400010-D8 | 1 | HANDLE SA | XJ | |
||
| 57 | E604400010-D9 | 1 | LEVER | XJ | |
||
| 58 | E604400010-D10 | 1 | CABLE | XJ | |
||
| 59 | E604400010-D11 | 1 | LOCK SCREW | XJ | |
||
| 60 | E604400010-D12 | 1 | BOLT | XJ | |
||
| 61 | E604400010-D13 | 3 | WASHER | XJ | |
||
| 62 | E604400010-D14 | 1 | BEAM | XJ | |
||
| 63 | E604400010-D15 | 2 | WASHER | XJ | |
||
| 64 | E604400010-D16 | 2 | LOCK NUT | XJ | |
||
| 65 | E604400010-D17 | 1 | COTTER PIN | XJ | |
||
| 66 | E604400010-D18 | 1 | LOCK NUT | XJ | |
||
| 67 | E604400010-D19 | 3 | CLIP CABLE | XJ | |
||
| 68 | E604400010-E1 | 1 | SUPPORT | XJ | |
||
| 69 | E604400010-E2 | 1 | WHEEL | XJ | |
||
| 70 | E604400010-E3 | 1 | BUSHING | XJ | |
||
| 71 | E604400010-E4 | 1 | SPRING | XJ | |
||
| 72 | E604400010-E5 | 1 | BOLT | XJ | |
||
| 73 | E604400010-E6 | 2 | LOCK NUT | XJ | |
||
| 74 | E604400010-E7 | 1 | BOLT | XJ | |
||
| 75 | E604400010-F1 | 1 | STARTER SA | XJ | |
||
| 76 | E604400010-F1-1 | 3 | NUT M6 | XJ | |
||
| 77 | E604400010-F2 | 1 | SPARK PLUG | XJ | |
||
| 78 | E604400010-F3 | 1 | FILTER SA | XJ | |
||
| 79 | E604400010-F3-1 | 1 | COVER | XJ | |
||
| 80 | E604400010-F3-2 | 2 | NUT M6 | XJ | |
||
| 81 | E604400010-F3-3 | 1 | ELEMENT | XJ | |
||
| 82 | E604400010-F3-4 | 1 | COVER | XJ | |
||
| 83 | E604400010-F4 | 1 | CARBURETTOR SA | XJ | |
||
| 84 | E604400010-F4-1 | 1 | GASKET | XJ | |
||
| 85 | E604400010-F4-2 | 1 | GASKET | XJ | |
||
| 86 | E604400010-F5 | 1 | COIL SA | XJ | |
||
| 87 | E604400010-F6 | 1 | GASKET | XJ | |
||
| 88 | E604400010-F7 | 1 | GASKET | XJ | |
||
| 89 | E604400010-F8 | 1 | Muffler | XJ | |
||
| 90 | E604400010-F8-1 | 1 | PLATE | XJ | |
