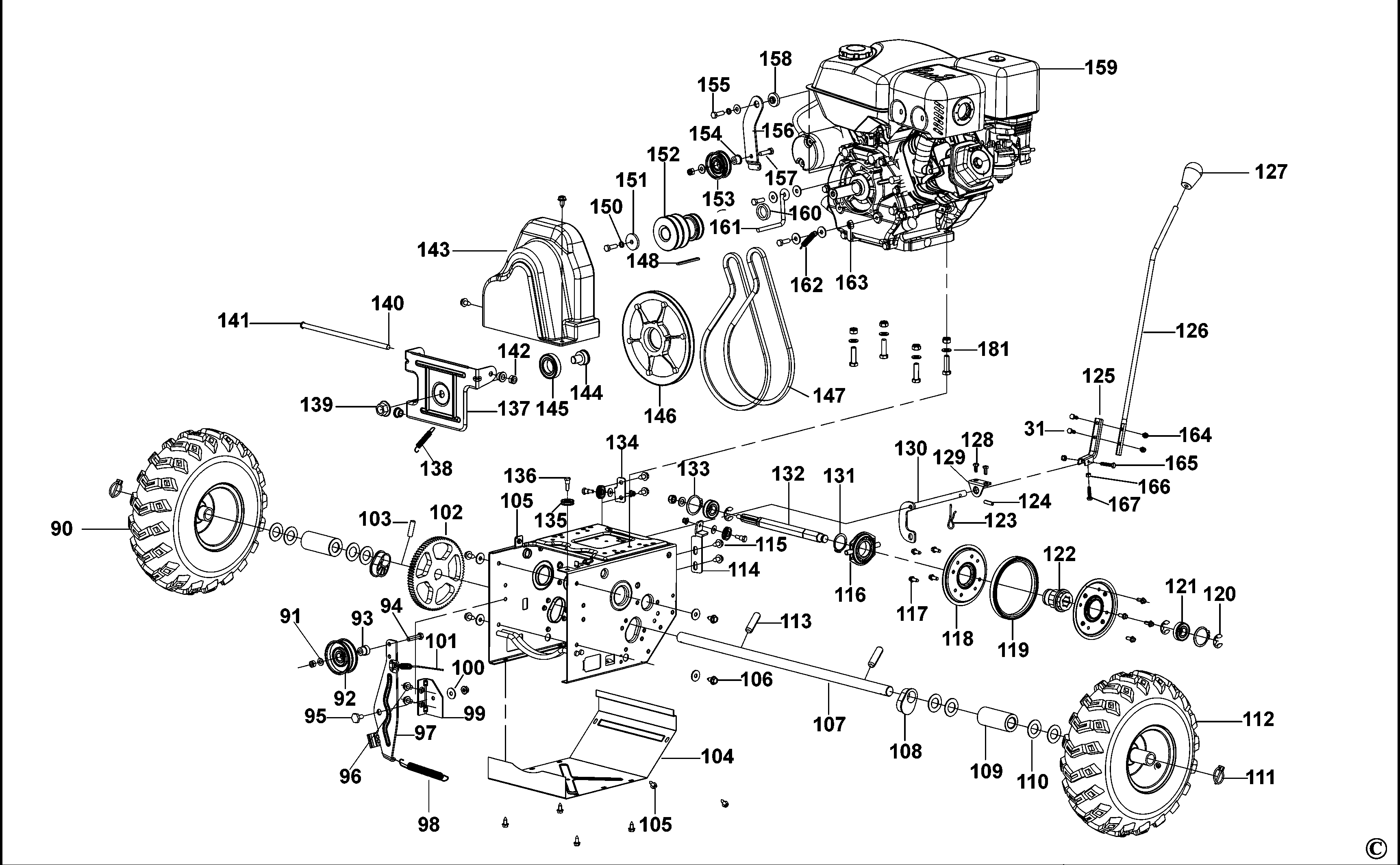

SPT-302-720 SNOW THROWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 29 | E60450004029 | 1 | SEAL | M10x1 | XJ |  |
|
| 30 | E60450004030 | 1 | BLADE SA | RH | XJ |  |
|
| 31 | E60450004031 | 10 | BOLT | M6x20 | XJ | |
|
| 32 | E60450004032 | 15 | WASHER SPRING | 6; | XJ | |
|
| 34 | E60450004034 | 3 | SEAL | B20x35x7 | XJ | |
|
| 35 | E60450004035 | 1 | SCREW | M5x12 | XJ | |
|
| 36 | E60450004036 | 1 | GEARCASE COVER RH | XJ | |
||
| 37 | E60450004037 | 1 | SHAFT | XJ | |
||
| 38 | E60450004038 | 5 | PIN | 1.8 | XJ | |
|
| 39 | E60450004039 | 1 | GEAR | XJ | |
||
| 40 | E60450004040 | 2 | SLEEVE | XJ | |
||
| 41 | E60450004041 | 1 | GEARCASE COVER LH | XJ | |
||
| 42 | E60450004042 | 2 | WASHER | XJ | |
||
| 43 | E60450004043 | 1 | BLADE SA | LH | XJ | |
|
| 44 | E60450004044 | 2 | BEARING SA | XJ | |
||
| 45 | E60450004045 | 6 | SCREW | ST8x16 | XJ | |
|
| 46 | E60450004046 | 2 | WASHER | XJ | |
||
| 47 | E60450004047 | 4 | PIN | XJ | |
||
| 48 | E60450004048 | 1 | KEY | XJ | |
||
| 49 | E60450004049 | 1 | BEARING | 6001-2RS | XJ | |
|
| 50 | E60450004050 | 4 | ROLLPIN | 6x37 | XJ | |
|
| 51 | E60450004051 | 1 | SHAFT | XJ | |
||
| 52 | E60450004052 | 1 | WASHER | XJ | |
||
| 53 | E60450004053 | 1 | SEAL | XJ | |
||
| 54 | E60450004054 | 1 | FAN SA | Impeller | XJ | |
|
| 55 | E60450004055 | 1 | BEARING | Thrust | XJ | |
|
| 56 | E60450004056 | 1 | BEARING | 61904-2RS | XJ | |
|
| 57 | E60450004057 | 6 | BOLT | M8x16 | XJ | |
|
| 58 | E60450004058 | 1 | PLATE | XJ | |
||
| 59 | E60450004059 | 9 | LOCK-NUT | M8 | XJ | |
|
| 60 | E60450004060 | 5 | BOLT | M8x20 | XJ | |
|
| 61 | E60450004061 | 2 | SHOE SA | XJ | |
||
| 62 | E60450004062 | 6 | PLUG | XJ | |
||
| 63 | E60450004063 | 1 | HOUSING SA | XJ | |
||
| 64 | E60450004064 | 2 | SCREW | ST5.5x13 | XJ | |
|
| 65 | E60450004065 | 1 | TOOL | SPADE | XJ | |
|
| 66 | E60450004066 | 1 | BRACKET | SPADE | XJ | |
|
| 67 | E60450004067 | 2 | BOLT | M8x25 | XJ | |
|
| 71 | E60450004071 | 1 | RING SA | XJ | |
||
| 72 | E60450004072 | 1 | LOCK PIN | XJ | |
||
| 73 | E60450004073 | 1 | SPRING TORSION | XJ | |
||
| 74 | E60450004074 | 1 | CHUTE | XJ | |
||
| 75 | E60450004075 | 6 | BOLT | M6x30 | XJ | |
|
| 76 | E60450004076 | 3 | BRACKET | XJ | |
||
| 77 | E60450004077 | 13 | NUT M6 | XJ | |
||
| 79 | E60450004079 | 2 | SCREW | M5x6 | XJ | |
|
| 80 | E60450004080 | 1 | WASHER | XJ | |
||
| 81 | E60450004081 | 2 | BEARING | 6203-2RS | XJ | |
|
| 82 | E60450004082 | 1 | BEARING HOUSING | XJ | |
||
| 83 | E60450004083 | 2 | WASHER LOCK | XJ | |
||
| 84 | E60450004084 | 13 | NUT M8 | XJ | |
||
| 85 | E60450004085 | 1 | PULLEY | XJ | |
||
| 86 | E60450004086 | 1 | WASHER | Flat 8 | XJ | |
|
| 87 | E60450004087 | 1 | BELT | 4LXP885 | XJ | |
|
| 88 | E60450004088 | 1 | WASHER SPRING | 8; | XJ | |
|
| 89 | E60450004089 | 1 | BOLT | M8x25 | XJ | |
|
| 90 | E60450004090 | 1 | WHEEL | XJ | |
||
| 91 | E60450004091 | 13 | WASHER | Flat 8 | XJ | |
|
| 92 | E60450004092 | 1 | IDLER ASSEMBLY | XJ | |
||
| 93 | E60450004093 | 1 | SPACER | XJ | |
||
| 94 | E60450004094 | 4 | BOLT | M8x35 | XJ | |
|
| 95 | E60450004095 | 1 | BOLT | XJ | |
||
| 96 | E60450004096 | 2 | BOLT | M8x20 | XJ | |
|
| 97 | E60450004097 | 1 | BRACKET | XJ | |
||
| 98 | E60450004098 | 1 | SPRING | XJ | |
||
| 99 | E60450004099 | 1 | BRACKET | XJ | |
||
| 100 | E604500040100 | 6 | WASHER | Flat 8 | XJ | |
|
| 101 | E604500040101 | 1 | CABLE SA | XJ | |
||
| 102 | E604500040102 | 1 | GEAR | XJ | |
||
| 103 | E604500040103 | 1 | PIN | A6x35 | XJ | |
|
| 104 | E604500040104 | 1 | COVERPLATE | XJ | |
||
| 105 | E604500040105 | 1 | FRAME SA | XJ | |
||
| 106 | E604500040106 | 12 | SCREW | M8x16 | XJ | |
|
| 107 | E604500040107 | 1 | SHAFT | XJ | |
||
| 108 | E604500040108 | 2 | BUSHING | XJ | |
||
| 109 | E604500040109 | 2 | SPACER | XJ | |
||
| 110 | E604500040110 | 7 | WASHER | XJ | |
||
| 111 | E604500040111 | 2 | LOCK PIN | XJ | |
||
| 112 | E604500040112 | 1 | WHEEL | XJ | |
||
| 113 | E604500040113 | 2 | PIN | 6x36 | XJ | |
|
| 114 | E604500040114 | 1 | BRACKET | XJ | |
||
| 115 | E604500040115 | 4 | SCREW | M8x16 | XJ | |
|
| 116 | E604500040116 | 2 | ARM | XJ | |
||
| 117 | E604500040117 | 8 | BOLT | M6x10 | XJ | |
|
| 118 | E604500040118 | 2 | PLATE | Friction | XJ | |
|
| 119 | E604500040119 | 1 | RING | Rubber | XJ | |
|
| 120 | E604500040120 | 2 | RING | XJ | |
||
| 121 | E604500040121 | 2 | BEARING | 6203-2RSn | XJ | |
|
| 122 | E604500040122 | 1 | HUB | XJ | |
||
| 123 | E604500040123 | 1 | PIN | XJ | |
||
| 124 | E604500040124 | 1 | PIN | 6x25 | XJ | |
|
| 125 | E604500040125 | 1 | SPRING CLIP | XJ | |
||
| 126 | E604500040126 | 1 | HANDLE | XJ | |
||
| 127 | E604500040127 | 1 | KNOB | XJ | |
||
| 128 | E604500040128 | 10 | SCREW | M6x16 | XJ | |
|
| 129 | E604500040129 | 1 | BRACKET | XJ | |
||
| 130 | E604500040130 | 1 | FORK | XJ | |
||
| 131 | E604500040131 | 1 | CIRCLIP | 35 | XJ | |
|
| 132 | E604500040132 | 1 | SHAFT SA | Hex | XJ | |
|
| 133 | E604500040133 | 2 | CIRCLIP | 40 | XJ | |
|
| 134 | E604500040134 | 1 | BRACKET | XJ | |
||
| 135 | E604500040135 | 4 | ROLLER | Cable | XJ | |
|
| 136 | E604500040136 | 3 | BOLT | XJ | |
||
| 137 | E604500040137 | 1 | BRACKET | XJ | |
||
| 138 | E604500040138 | 1 | SPRING | XJ | |
||
| 139 | E604500040139 | 1 | NUT | M16 | XJ | |
|
| 140 | E604500040140 | 2 | COUPLING | XJ | |
||
| 141 | E604500040141 | 1 | SHAFT | XJ | |
||
| 142 | E604500040142 | 1 | LOCK NUT | M10 | XJ | |
|
| 143 | E604500040143 | 1 | COVER BELT | XJ | |
||
| 144 | E604500040144 | 1 | HUB | XJ | |
||
| 145 | E604500040145 | 1 | BEARING | 6006-2RS | XJ | |
|
| 146 | E604500040146 | 1 | PULLEY | XJ | |
||
| 147 | E604500040147 | 2 | BELT | V10x835 | XJ | |
|
| 148 | E604500040148 | 1 | KEY | 6X6X45 | XJ | |
|
| 150 | E604500040150 | 1 | WASHER SPRING | 8; | XJ | |
|
| 151 | E604500040151 | 1 | WASHER | XJ | |
||
| 152 | E604500040152 | 1 | PULLEY | XJ | |
||
| 153 | E604500040153 | 1 | CLUTCH | Idler | XJ | |
|
| 154 | E604500040154 | 1 | BUSHING | XJ | |
||
| 155 | E604500040155 | 2 | BOLT | M8x25 | XJ | |
|
| 156 | E604500040156 | 1 | BRACKET | XJ | |
||
| 157 | E604500040157 | 2 | BOLT | M8x40 | XJ | |
|
| 158 | E604500040158 | 1 | SPACER | XJ | |
||
| 159 | E604500040159 | 1 | MOTOR SA | 10hp Engine | refer to manual | XJ | |
| 160 | E604500040160 | 1 | WASHER | XJ | |
||
| 161 | E604500040161 | 1 | WIRE STEEL | Belt Blocker | XJ | |
|
| 162 | E604500040162 | 1 | SPRING | XJ | |
||
| 163 | E604500040163 | 1 | NUT M8 | XJ | |
||
| 164 | E604500040164 | 4 | LOCK-NUT | M6 | XJ | |
|
| 165 | E604500040165 | 1 | BOLT | M6x30 | XJ | |
|
| 166 | E604500040166 | 3 | NUT M6 | XJ | |
||
| 167 | E604500040167 | 1 | BOLT | M6x25 | XJ | |
|
| 168 | E604500040168 | 2 | HANDLE | XJ | |
||
| 169 | E604500040169 | 2 | SCREW | M10x55 | XJ | |
|
| 170 | E604500040170 | 1 | CABLE | XJ | |
||
| 171 | E604500040171 | 1 | CABLE | Friction Wheel | XJ | |
|
| 172 | E604500040172 | 1 | HANDLE SA | XJ | |
||
| 173 | E604500040173 | 2 | BRACKET | XJ | |
||
| 174 | E604500040174 | 4 | LOCK NUT | M6 | XJ | |
|
| 175 | E604500040175 | 2 | SPACER | XJ | |
||
| 176 | E604500040176 | 2 | SCREW | M6x60 | XJ | |
|
| 177 | E604500040177 | 6 | WASHER | Flat 6 | XJ | |
|
| 178 | E604500040178 | 4 | SCREW | M6x40 | XJ | |
|
| 179 | E604500040179 | 1 | BEZEL | XJ | |
||
| 180 | E604500040180 | 2 | WASHER | XJ | |
||
| 181 | E604500040181 | 4 | WASHER | XJ | |
||
| 187 | E604500040187 | 1 | CIRCLIP | 10 | XJ | |
|
| 188 | E604500040188 | 1 | KNOB | XJ | |
||
| 189 | E604500040189 | 1 | LEVER | XJ | |
||
| 190 | E604500040190 | 1 | BRACKET | XJ | |
||
| 191 | E604500040191 | 1 | SPACER | Rubber | XJ | |
|
| 192 | E604500040192 | 6 | WASHER | 10 | XJ | |
|
| 215 | E604500040215 | 2 | BOLT | M10x20 | XJ | |
|
| 216 | E604500040216 | 2 | BOLT | M10x40 | XJ | |
|
| 228 | E604500040228 | 6 | WASHER | XJ | |
||
| 229 | 1004738-53 | 1 | SPARK PLUG | XJ | |
||
| 230 | 1004738-54 | 1 | CARBURETTOR SA | XJ | |
||
| 231 | 1004738-55 | 1 | PIPE | XJ | |
||
| 232 | 1004738-56 | 2 | CLIP | XJ | |
||
| 233 | 1004738-57 | 1 | CLAMP | XJ | |
||
| 234 | 1004738-58 | 1 | GASKET | XJ | |
||
| 235 | 1004738-59 | 1 | GASKET | XJ | |
||
| 236 | 1004738-60 | 1 | SPACER | XJ | |
||
| 237 | 1004738-61 | 1 | STARTER SA | Kick | XJ | |
|
| 238 | 1004738-62 | 5 | BOLT | M6×12 | XJ | |
|
| 239 | 1004738-63 | 1 | CLIP | XJ | |
||
| 240 | 1004738-64 | 1 | Muffler | XJ | |
||
| 241 | 1004738-65 | 1 | COIL SA | Ignition | XJ | |
|
| 242 | 1004738-66 | 2 | BOLT | M6×25 | XJ | |
|
| 243 | 1004738-67 | 1 | FILTER | Air | XJ | |
|
| 244 | 1004738-68 | 2 | NUT M6 | XJ | |
||
| 245 | 1004738-69 | 1 | STARTER SA | XJ | |
||
| 246 | 1004738-70 | 2 | SCREW | XJ | |
||
| 247 | 1004738-71 | 2 | BOLT | M8×40 | XJ | |
|
| 301 | E604500040301 | 1 | BOLT | M8x35 | XJ | |
|
| 302 | E604500040302 | 1 | KNOB | XJ | |
||
| 303 | E604500040303 | 2 | NUT | XJ | |
||
| 304 | E604500040304 | 1 | PLATE | XJ | |
||
| 305 | E604500040305 | 1 | BOLT | M8x20 | XJ | |
|
| 306 | E604500040306 | 1 | BUSHING | XJ | |
||
| 307 | E604500040307 | 1 | BRACKET | XJ | |
||
| 601 | E604500040601 | 2 | SCREW | M6x35 | XJ | |
|
| 602 | E604500040602 | 1 | PLATE | XJ | |
