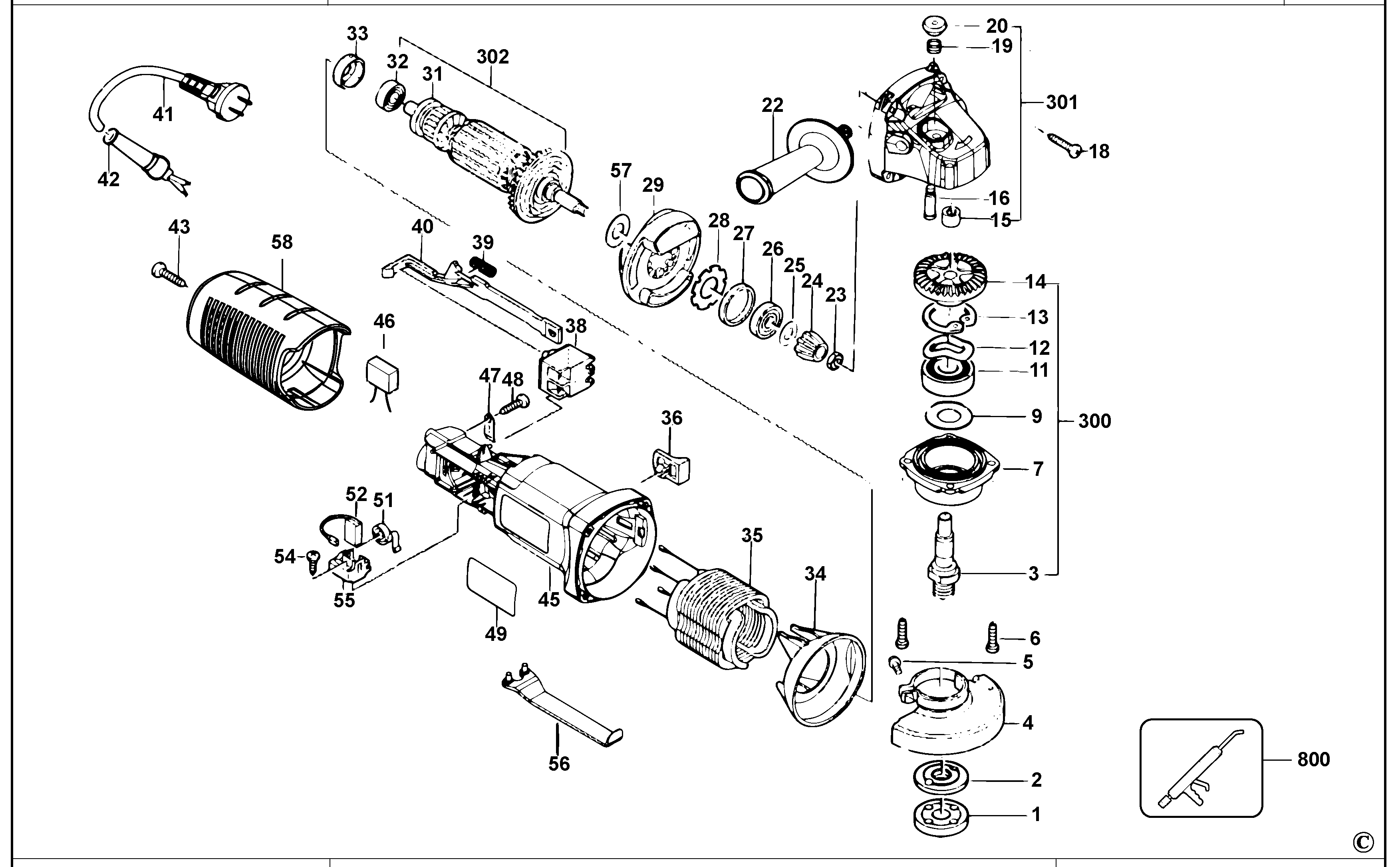

FMEG725 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4145104008 | 1 | OUTER FLANGE | XJ |  |
||
| 2 | 4145104002 | 1 | INNER FLANGE | XJ | |
||
| 3 | 4142104002 | 1 | SPINDLE | XJ | |
||
| 4 | 4142104001 | 1 | GUARD SA | XJ | |
||
| 5 | 49203052 | 1 | SCREW | XJ | |
||
| 6 | 49209042 | 4 | SCREW | XJ | |
||
| 7 | 4140302602 | 1 | GEARCASE COVER | XJ | |
||
| 9 | 4140704002 | 1 | WASHER | 12 x 26.5 x 0.2 mm; 12*26.5*0.2 | XJ | |
|
| 11 | 49111017 | 1 | BEARING | XJ | |
||
| 12 | 4140304001 | 1 | WASHER | 24 x 30.5 x 0.3 mm; 24*30.5*0.3 | XJ | |
|
| 13 | 49207020 | 1 | CIRCLIP | XJ | |
||
| 14 | 4140310003 | 1 | GEAR | XJ | |
||
| 15 | 49101022 | 1 | BEARING NEEDLE | XJ | |
||
| 16 | 4140304010 | 1 | LOCK PIN | XJ | |
||
| 18 | 49206022 | 4 | SCREW | XJ | |
||
| 19 | 4140308003 | 1 | SPRING | XJ |  |
||
| 20 | 4140301012 | 1 | LOCK BUTTON | XJ | |
||
| 22 | 4140301606 | 1 | HANDLE SIDE SA | XJ | |
||
| 23 | 49205005 | 1 | NUT | M6 | XJ | |
|
| 24 | 4140310004 | 1 | PINION | XJ | |
||
| 25 | 4140304012 | 1 | WASHER | 6 x 16.5 x 0.2 mm; 6*16.5*0.2 | XJ | |
|
| 26 | 49106229 | 1 | BEARING | XJ | |
||
| 27 | 4140303001 | 1 | RUBBER SEAL | XJ | |
||
| 28 | 4140304005 | 1 | WASHER | XJ | |
||
| 29 | 4140301014 | 1 | FLANGE | XJ | |
||
| 31 | 4140301009 | 1 | WASHER INSULATING | XJ | |
||
| 32 | 49111011 | 1 | BEARING | XJ | |
||
| 33 | 4140303002 | 1 | SLEEVE BEARING | XJ | |
||
| 34 | 4140301002 | 1 | BAFFLE | XJ | |
||
| 35 | 60314058 | 1 | FIELD SA | XJ | |
||
| 36 | 4140301011 | 1 | BUTTON | XJ | |
||
| 39 | 4140308001 | 1 | SPRING | XJ | |
||
| 40 | 4140301010 | 1 | LINK | XJ | |
||
| 42 | 49303605 | 1 | CORD PROTECTOR | XJ | |
||
| 43 | 49206020 | 1 | SCREW | self-tapping 4*18; self-tapping 4x18 mm | XJ | |
|
| 45 | N592378 | 1 | FIELDCASE | XJ | |
||
| 46 | Z494014 | 1 | CAPACITOR | XJ | |
||
| 47 | 4140301013 | 1 | CORD CLAMP | XJ | |
||
| 48 | 49206016 | 1 | SCREW | self-tapping 4*12; self-tapping 4x12 mm | XJ | |
|
| 51 | 4140308002 | 1 | BRUSH SPRING | XJ | |
||
| 52 | N559586 | 1 | BRUSH PAIR | XJ | |
||
| 54 | 49206001 | 2 | SCREW | XJ | |
||
| 55 | 4140307001 | 1 | BRUSH HOLDER | XJ | |
||
| 56 | 4140304608 | 1 | WRENCH SET | XJ | |
||
| 57 | 4090104003 | 1 | WASHER | 8 x 15 x 0.2 mm; 8*15*0.2 | XJ | |
|
| 58 | 4140301603 | 1 | END CAP | XJ | |
||
| 300 | 4140350004 | 1 | SPINDLE & GEAR SA | XJ | |
||
| 301 | 4140350002 | 1 | GEARCASE SA | XJ | |
||
| 302 | 4140350003 | 1 | ARMATURE SA | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
