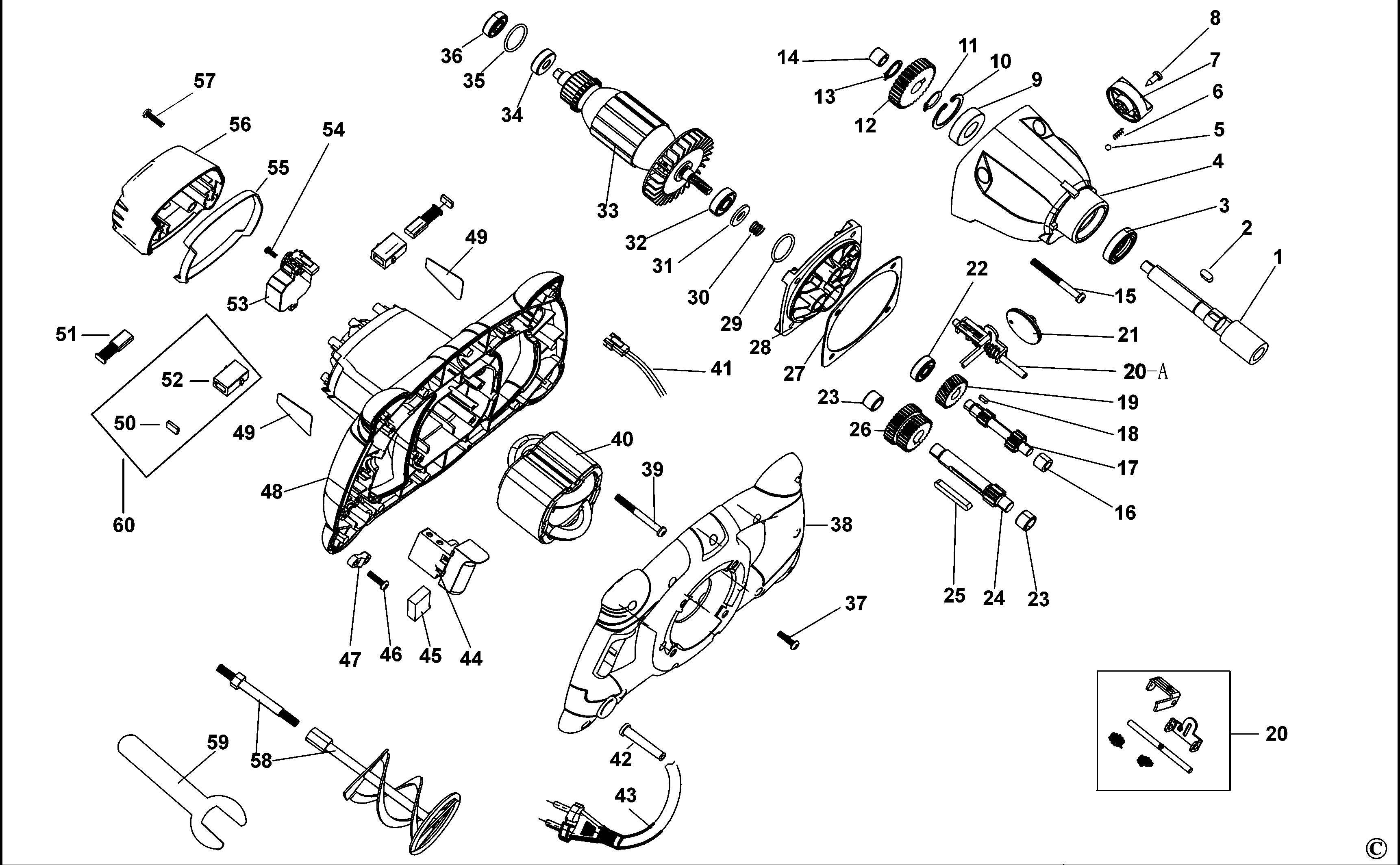

FME190 MIXER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004699-72 | 1 | OUTPUT SHAFT | GB |  |
||
| 2 | 1004699-73 | 1 | KEY | GB | |
||
| 3 | 1004699-74 | 1 | SEAL | GB | |
||
| 4 | 1004699-75 | 1 | HOUSING | GB | |
||
| 5 | 1004699-76 | 1 | BEARING,BALL | GB | |
||
| 6 | 1004699-77 | 1 | SPRING | GB | |
||
| 7 | 1004699-78 | 1 | KNOB | GB | |
||
| 8 | 1004699-79 | 1 | SCREW | ST3*12 | GB | |
|
| 9 | 1004699-80 | 1 | BEARING | 6002 RS | GB | |
|
| 10 | 1004699-81 | 1 | CIRCLIP | GB | |
||
| 11 | 1004699-82 | 1 | CIRCLIP | GB | |
||
| 12 | 1004699-83 | 1 | GEAR | GB | |
||
| 13 | 1004699-84 | 1 | CIRCLIP | GB | |
||
| 14 | 1004699-85 | 1 | BEARING,NEEDLE | HK0810 | GB | |
|
| 15 | 1004699-86 | 1 | SCREW | GB | |
||
| 16 | 1004699-85 | 1 | BEARING,NEEDLE | HK0810 | GB | |
|
| 17 | 1004699-88 | 1 | SHAFT SA | GB | |
||
| 18 | 1004699-89 | 1 | KEY | 3x8 | GB | |
|
| 19 | 1004699-90 | 1 | GEAR | GB | |
||
| 20 | 1004700-34 | 1 | FORK | GB | |
||
| 21 | 1004699-91 | 1 | PLATE | GB | |
||
| 22 | 1004699-92 | 1 | BEARING 608 | GB |  |
||
| 23 | 1004699-93 | 1 | BEARING NEEDLE | HK1010 | GB | |
|
| 24 | 1004699-94 | 1 | SHAFT SA | GB | |
||
| 25 | 1004699-95 | 1 | KEY | GB | |
||
| 26 | 1004699-96 | 1 | GEAR | GB | |
||
| 27 | 1004699-97 | 1 | WASHER | GB | |
||
| 28 | 1004699-98 | 1 | COVER | GB | |
||
| 29 | 1004700-00 | 1 | O RING | GB | |
||
| 30 | 1004700-01 | 1 | SPRING | GB | |
||
| 31 | 1004700-02 | 1 | PAD | GB | |
||
| 32 | 1004700-03 | 1 | BEARING | GB | |
||
| 33 | 1004700-04 | 1 | ARMATURE & FAN | GB | |
||
| 34 | 1004700-05 | 1 | MAGNET | GB | |
||
| 35 | 1004700-06 | 1 | SEAL | GB | |
||
| 36 | 1004700-07 | 1 | BEARING | GB | |
||
| 37 | 1004700-08 | 1 | SCREW | GB | |
||
| 38 | 1004700-09 | 1 | HANDLE COVER | GB | |
||
| 39 | 1004700-10 | 1 | SCREW | GB | |
||
| 40 | 1004700-11 | 1 | STATOR SA | GB | |
||
| 41 | 1004700-12 | 1 | WIRE | GB | |
||
| 42 | 1004700-13 | 1 | SLEEVE | GB | |
||
| 43 | 1004700-31 | 1 | CORDSET | GB | |
||
| 44 | 1004700-14 | 1 | SWITCH SA | GB | |
||
| 45 | 1004700-15 | 1 | CAPACITOR | GB | |
||
| 46 | 1004700-16 | 1 | SCREW | ST4*14-F | GB | |
|
| 47 | 1004700-17 | 1 | CABLE CLAMP | GB | |
||
| 48 | 1004700-18 | 1 | HOUSING | GB | |
||
| 49 | 1004700-19 | 1 | BRAND LABEL | GB | |
||
| 50 | 1004700-20 | 1 | BRUSH COVER | PAIR | GB | ||
| 51 | 1004700-22 | 1 | BRUSH PAIR | GB | |
||
| 52 | 1004736-02 | 1 | BRUSH HOLDER SA | PAIR | GB | |
|
| 53 | 1004700-23 | 1 | CLUTCH MODULE | GB | |
||
| 54 | 1004700-24 | 1 | SCREW | ST3*12 | GB | |
|
| 55 | 1004700-25 | 1 | RING | GB | |
||
| 56 | 1004700-26 | 1 | COVER REAR | GB | |
||
| 57 | 1004700-08 | 1 | SCREW | GB | |
||
| 58 | 1004700-28 | 1 | PADDLE | MIXER | GB | |
|
| 59 | 1004700-29 | 1 | SPANNER | GB | |
||
| 60 | 1004736-02 | 1 | BRUSH HOLDER SA | GB | |
