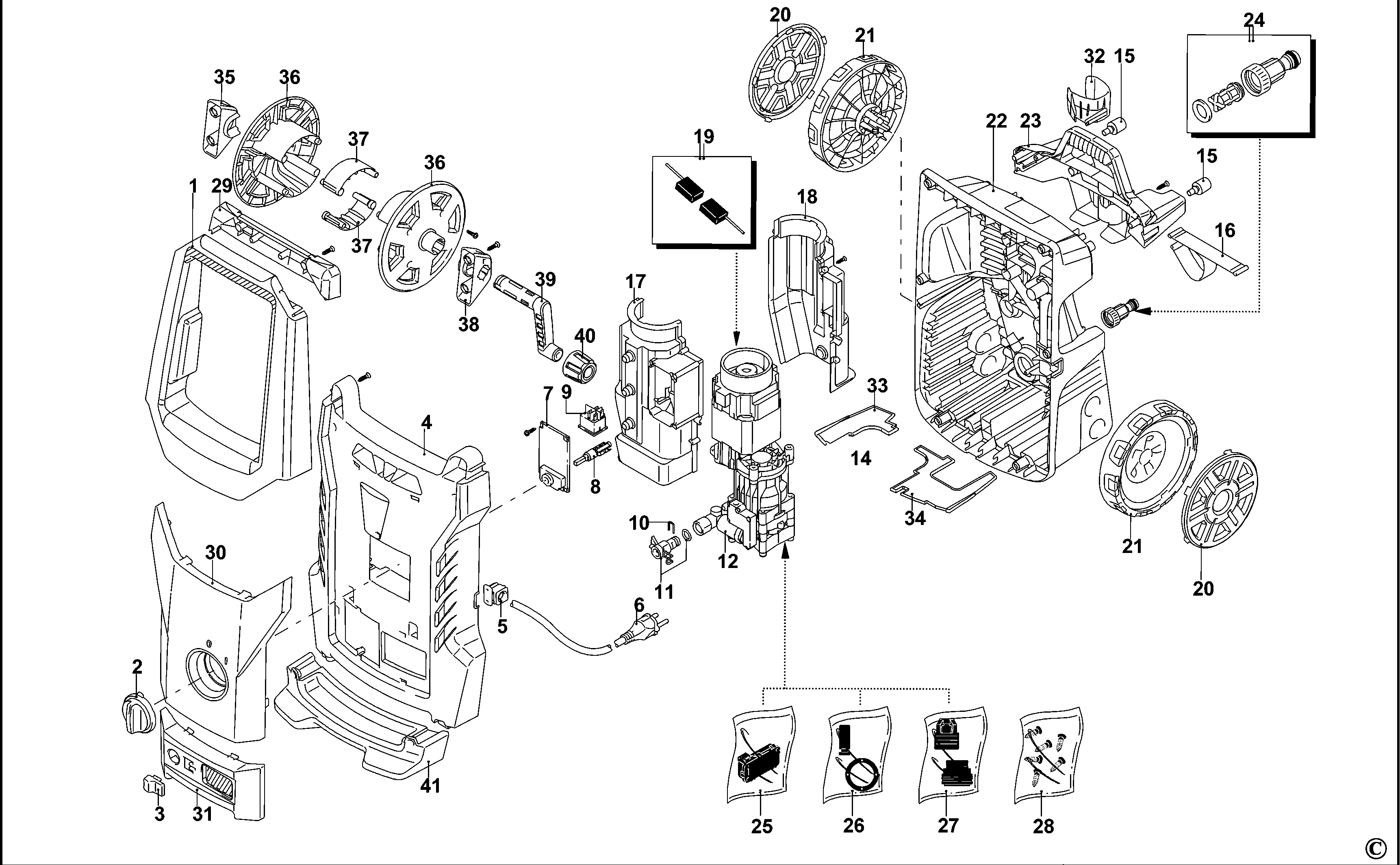

SXPW22E PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4380640 | 1 | HANDLE SA | GB |  |
||
| 2 | 4380251 | 1 | KNOB | GB | |
||
| 3 | 4380391 | 1 | LEVER | GB | |
||
| 4 | 4380650 | 1 | CASTING SA | GB | |
||
| 5 | 1004455-07 | 1 | GLAND | GB |  |
||
| 6 | 1004690-87 | 1 | CORDSET | GB | |
||
| 7 | 1004700-65 | 1 | COVER | GB | |
||
| 8 | 1004700-66 | 1 | PIN | GB | |
||
| 10 | 1004512-08 | 1 | FORK | GB | |
||
| 11 | 4382480 | 1 | COUPLING | GB | |
||
| 12 | 4381530 | 1 | PUMP SA | GB | |
||
| 15 | 1004712-16 | 2 | FOOT | GB | |
||
| 16 | 4380810 | 1 | HOOK SA | GB | |
||
| 17 | 4380160 | 1 | CONVEYOR | GB | |
||
| 18 | 4380170 | 1 | CONVEYOR | GB | |
||
| 19 | 3082600 | 1 | BRUSH PAIR | GB | |
||
| 20 | 4380630 | 2 | GUARD | GB | |
||
| 21 | 4380610 | 2 | WHEEL | GB | |
||
| 22 | 4380960 | 1 | BASE SA | GB | |
||
| 23 | 4380990 | 1 | CARRIER SA | GB | |
||
| 24 | 1004700-77 | 1 | COUPLING SA | GB | |
||
| 25 | 3081280 | 1 | KIT | TSS | GB | |
|
| 26 | 1004455-16 | 1 | SERVICE KIT | PISTON AND SEAL KIT | GB | |
|
| 27 | 1004455-19 | 1 | SERVICE KIT | GB | |
||
| 28 | 4381470 | 1 | SCREW KIT | GB | |
||
| 29 | 4380690 | 1 | HANDLE | GB | |
||
| 30 | 4380660 | 1 | COVER | GB | |
||
| 31 | 4380670 | 1 | COVER | GB | |
||
| 32 | 4381280 | 1 | CLIP SA | GB | |
||
| 33 | 4380590 | 1 | COVER | GB | |
||
| 34 | 4380580 | 1 | COVER | GB | |
||
| 35 | 4380470 | 1 | BRACKET | GB | |
||
| 36 | 3080200 | 2 | PLATE | GB | |
||
| 37 | 4380550 | 2 | SHIM | GB | |
||
| 38 | 4380460 | 1 | BRACKET | GB | |
||
| 39 | 4380560 | 1 | LEVER | GB | |
||
| 40 | 4380451 | 1 | KNOB | GB | |
||
| 41 | 4380680 | 1 | FOOT | GB | |
||
| 42 | 4381480 | 1 | HANDLE SA | GB | |
||
| 43 | 4381490 | 1 | EXTENSION | GB | |
||
| 44 | 4100800 | 1 | HEAD SA | GB | |
||
| 45 | 4101550 | 1 | HEAD SA | Lance | GB | |
|
| 46 | 4381500 | 1 | TANK | GB | |
||
| 47 | 4381510 | 1 | HOSE SA | GB | |
||
| 48 | 3083700 | 2 | O RING | GB | |
||
| 49 | 3083370 | 2 | O RING | GB | |
||
| 50 | 3083400 | 2 | O RING | GB | |
||
| 54 | 1004746-18 | 1 | BRUSH | Patio | GB | |
|
| 55 | 1004746-19 | 1 | BRUSH | FIXED | GB | |
|
| 56 | 1004746-20 | 1 | BRUSH | Rotary | GB | |
|
| 57 | 1004746-21 | 1 | SUCTION PIPE | WATER -KIT | GB | |
|
| 58 | 1004746-22 | 1 | HOSE | 10m | GB | |
|
| 59 | 1004746-23 | 1 | HOSE | 16m | GB | |
|
| 60 | 1004746-25 | 1 | EXTENSION | GB | |
||
| 61 | 1004746-26 | 1 | KIT | Sand Blasting | GB | |
|
| 62 | 1004746-27 | 1 | HOSE | 8m | GB | |
|
| 63 | 1004746-29 | 1 | COUPLING | Click Fast | GB | |
|
| 64 | 1004746-30 | 1 | FILTER | Water x3 | GB | |
|
| 65 | 1004746-31 | 1 | FILTER | Water | GB | |
|
| 66 | 1004746-32 | 1 | COUPLING | GB | |
||
| 67 | 1004746-33 | 1 | COUPLING | GB | |
||
| 68 | 1004746-34 | 1 | CLEANING FLUID | Bike/Motorbike | GB | |
|
| 69 | 1004746-35 | 1 | CLEANING FLUID | Boats/Cars | GB | |
|
| 70 | 1004746-36 | 1 | CLEANING FLUID | Heavy duty | GB | |
