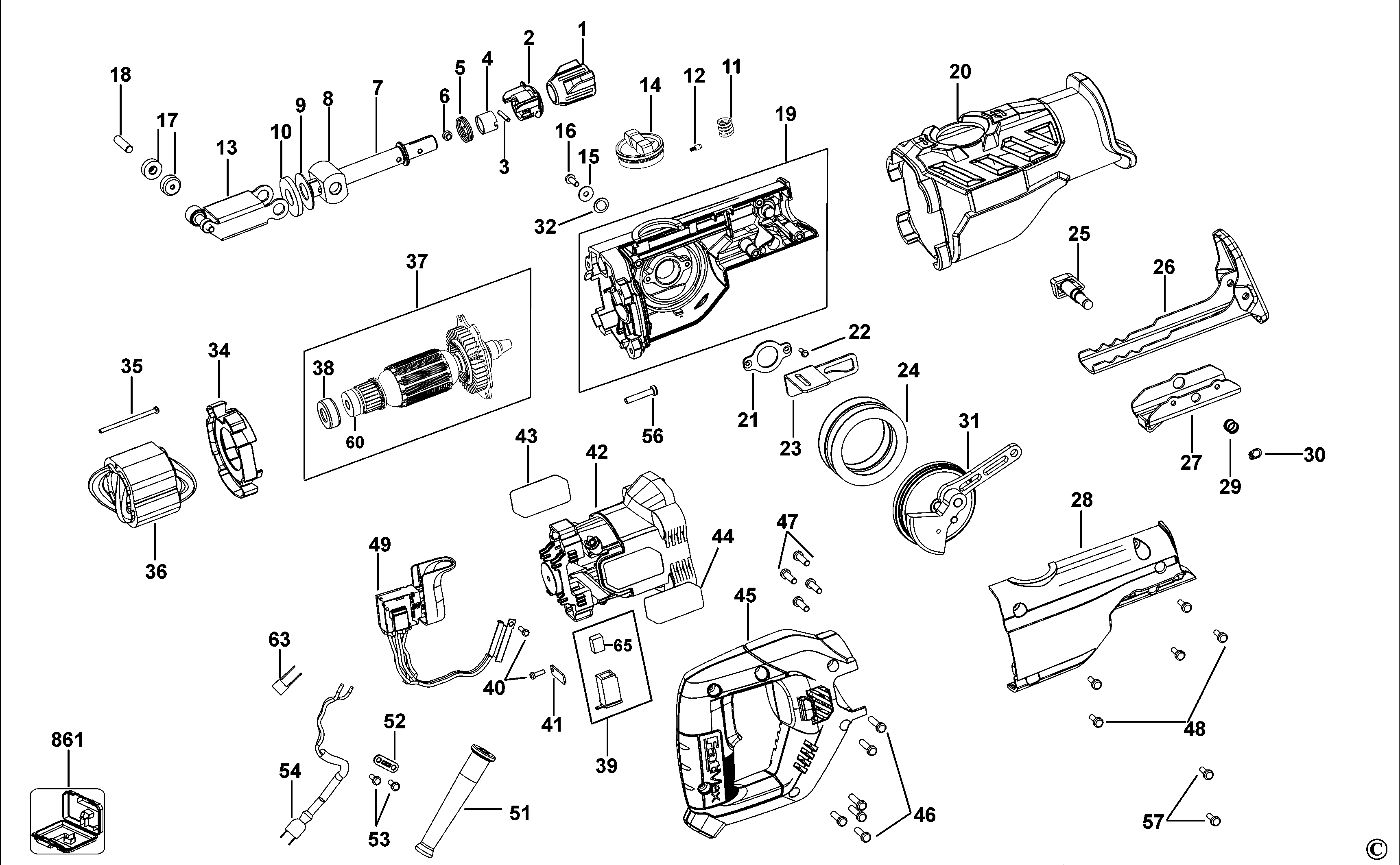

FME365 CUT SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90562315 | 1 | BOOT | GB |  |
||
| 2 | 90562332 | 1 | COLLAR | GB | |
||
| 3 | 90570102 | 1 | PIN | GB | |
||
| 3 | 326627-04 | 1 | BRUSH & HOLDER SA | HC160 | GB | ||
| 4 | 90562334 | 1 | SLEEVE | GB | |
||
| 5 | 90562333 | 1 | SPRING | GB | |
||
| 6 | 90562314 | 1 | PIN | GB | |
||
| 6 | 806541-03 | 1 | ARMATURE SA | GB |  |
||
| 7 | 90587516 | 1 | SHAFT SA | GB | |
||
| 8 | 90587517 | 1 | BEARING | GB | |
||
| 9 | 90562321 | 1 | WASHER | GB | |
||
| 10 | 90562320 | 1 | FELT SEAL | GB | |
||
| 11 | 90562319 | 1 | SPRING COMPRESSION | GB | |
||
| 12 | N403227 | 1 | DETENT | GB | |
||
| 13 | 90587518 | 1 | TRACK | GB | |
||
| 14 | 90583997 | 1 | KNOB SA | GB | |
||
| 15 | 90563044 | 1 | WASHER | GB | |
||
| 16 | 90563040 | 1 | SCREW | GB | |
||
| 17 | 90562303 | 2 | ROLLER | GB | |
||
| 18 | 90562304 | 1 | PIN | GB | |
||
| 19 | 90587519 | 1 | GEAR CASE SA | GB | |
||
| 20 | 90574947 | 1 | RUBBER BOOT | GB | |
||
| 21 | 90562305 | 1 | BEARING PLATE | GB | |
||
| 22 | 90502260 | 2 | SCREW | M3 x 6mm Csk | GB | |
|
| 23 | 90562299 | 1 | ACTUATOR | GB | |
||
| 24 | 90563562 | 1 | BEARING THRUST | GB | |
||
| 25 | 90583996 | 1 | BUTTON SA | GB | |
||
| 26 | 90563570 | 1 | SHOE SA | GB | |
||
| 26 | 330075-29 | 1 | CHUCK KEYLESS | GB | |||
| 27 | 90562309 | 1 | SUPPORT PLATE | GB | |
||
| 28 | 90587520 | 1 | COVER SA | GB | |
||
| 29 | 618427-00 | 1 | SPRING | GB | |
||
| 30 | 90552725 | 1 | CLIP | GB | |
||
| 31 | 90563563 | 1 | GEAR SA | GB | |
||
| 32 | 98197-03 | 1 | WASHER | GB | |
||
| 34 | 90562519 | 1 | BAFFLE FAN | GB | |
||
| 35 | 330019-64 | 2 | SCREW | GB | |
||
| 36 | 90587521 | 1 | FIELD 230V | GB | |
||
| 37 | 90636471 | 1 | ARMATURE SA | GB | |
||
| 38 | 90565402 | 1 | CAP | GB | |
||
| 39 | 90587523 | 1 | BRUSH PAIR 230V | GB | |
||
| 40 | 330019-28 | 3 | SCREW | GB | |
||
| 41 | 90561435 | 1 | BRUSH HOLDER | GB | |
||
| 42 | 90582682 | 1 | FIELDCASE | GB | |
||
| 43 | 90583465 | 1 | RATING PLATE | GB | |
||
| 44 | 90583466 | 1 | BRAND LABEL | GB | |
||
| 45 | 90587524 | 1 | HANDLE SA | GB | |
||
| 46 | 330019-13 | 8 | SCREW | M4X19 T20 | GB | |
|
| 47 | 330019-12 | 4 | SCREW | GB | |
||
| 48 | 330045-06 | 5 | SCREW | GB | |
||
| 49 | 90563353 | 1 | SWITCH | GB | |
||
| 51 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 51 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 52 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 53 | 330019-01 | 2 | SCREW | GB | |
||
| 54 | 90579848 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 56 | 330019-13 | 4 | SCREW | M4X19 T20 | GB | |
|
| 57 | 90568551 | 2 | SCREW | GB | |
||
| 60 | 574853-08 | 1 | BEARING | GB | |
||
| 63 | 90568607 | 1 | CAPACITOR | GB | |
||
| 65 | 90569536 | 1 | BRUSH PAIR 230V SA | GB | |
||
| 100 | 844501 | 1 | BRACKET RH | GB | |
||
| 202 | 5103601-40 | 1 | CHARGER 12V GB | GB | |
||
| 218 | 732882 | 1 | BAG | GB | |
||
| 239 | 5101854-05 | 1 | SLIDER | GB | |
||
| 310 | 797513-49 | 2 | MOTOR SA | GB | |
||
| 314 | 733829 | 1 | BRUSH HOLDER | H160 | GB | |
|
| 339 | 498587-05 | 1 | RATING PLATE | GB | |
||
| 500 | 945586-00 | 3 | LENS | GB | |
||
| 611 | 806302-02 | 1 | ARMATURE | HC160 | GB | |
|
| 611 | 806539-01 | 1 | BRAND LABEL | H160 | GB | |
|
| 761 | 330080-28 | 1 | CORDSET (EURO) | GB | |
||
| 762 | 330075-43 | 1 | CHUCK | 3/8 x 20 UNF | GB | |
|
| 861 | 90580689-01 | 1 | KIT BOX | GB | |
