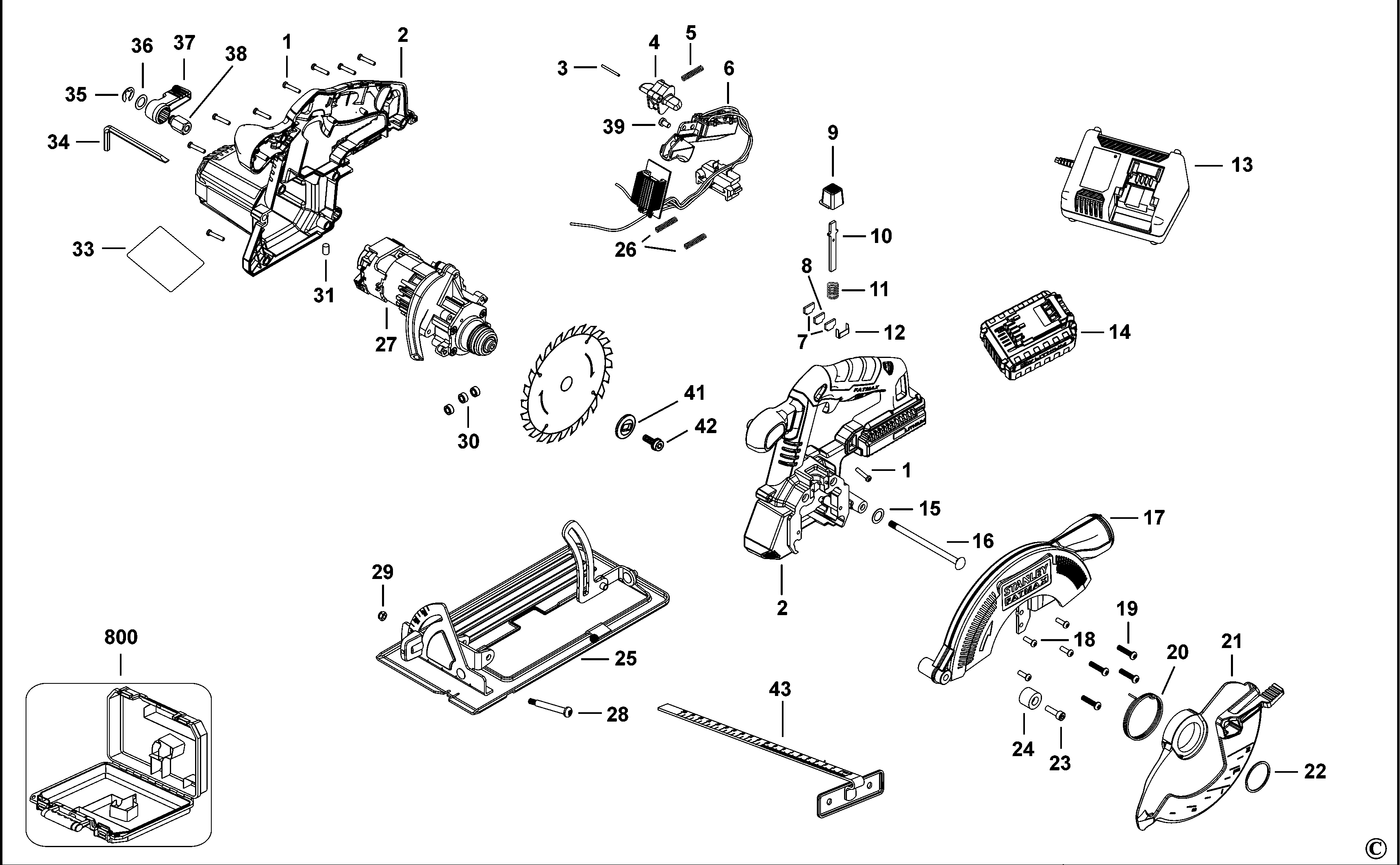

FMC660 CIRCULAR SAW Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90501917 | 9 | SCREW | M3.5X16 | GB | ||
| 2 | 90591437-01 | 1 | CLAMSHELL | GB |  |
||
| 3 | 90592043 | 1 | PIN | GB | |
||
| 4 | 90592041-01 | 1 | BUTTON LOCK-OFF | GB | |
||
| 5 | 90591452 | 1 | SPRING | GB | |
||
| 6 | 90597462-01 | 1 | SWITCH & PCB SA | GB | |
||
| 7 | 5148016-00 | 2 | FELT SEAL | GB | |||
| 8 | 5148018-00 | 1 | HOLDER | GB | |||
| 9 | 90597629-01 | 1 | LOCK BUTTON | GB | |
||
| 10 | 90597577 | 1 | ROD | GB | |
||
| 11 | 90597576 | 1 | SPRING | GB | |
||
| 12 | 5148017-00 | 1 | COVER | GB | |||
| 13 | 90599845-02 | 1 | CHARGER | 1A | FMC660M2 | GB | |
| 14 | N552567 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - FMC688L-XJ | FMC660M2 | GB | |
| 15 | 90601947 | 1 | WASHER | GB | |
||
| 16 | 90602278 | 1 | BOLT | GB | |
||
| 17 | 90606277 | 1 | GUARD | GB | |
||
| 18 | 5148755-00 | 4 | SCREW | GB | |||
| 19 | 5148739-00 | 4 | SCREW | GB | |||
| 20 | 90602791 | 1 | SPRING | GB | |
||
| 21 | 90591151-01 | 1 | GUARD LOWER | GB | |
||
| 22 | 90596839 | 1 | RING | GB | |
||
| 23 | 90609243 | 1 | SCREW | GB | |
||
| 24 | 90595755-02 | 1 | BUMPER | GB | |
||
| 25 | 90592910-01 | 1 | SHOE SA | GB | |
||
| 26 | 5100035-03 | 2 | SPRING | GB | |
||
| 27 | 90605724 | 1 | GEARBOX SA | GB | |
||
| 28 | 5148557-01 | 1 | SCREW | M5X46 | GB | |
|
| 29 | 497557-00 | 1 | NUT | GB | |
||
| 30 | 90596605 | 3 | RING | GB | |
||
| 31 | 5149025-00 | 1 | PLUG | GB | |
||
| 33 | 90605387 | 1 | RATING PLATE | FMC660M2 | GB | |
|
| 34 | 90502723 | 1 | HEX KEY | GB | |
||
| 35 | 90596628 | 1 | RING | GB | |
||
| 36 | 90601948 | 2 | WASHER | GB | |
||
| 37 | 90591864 | 1 | LEVER | GB | |
||
| 38 | 90602277 | 1 | NUT M6 | GB | |
||
| 39 | 330019-40 | 1 | SCREW | GB | |
||
| 41 | 90598125 | 1 | OUTER FLANGE | GB | |
||
| 42 | 90591453 | 1 | BOLT | GB | |
||
| 43 | 90568785 | 1 | FENCE | GB | |
||
| 800 | 90616538 | 1 | KIT BOX | GB | |
