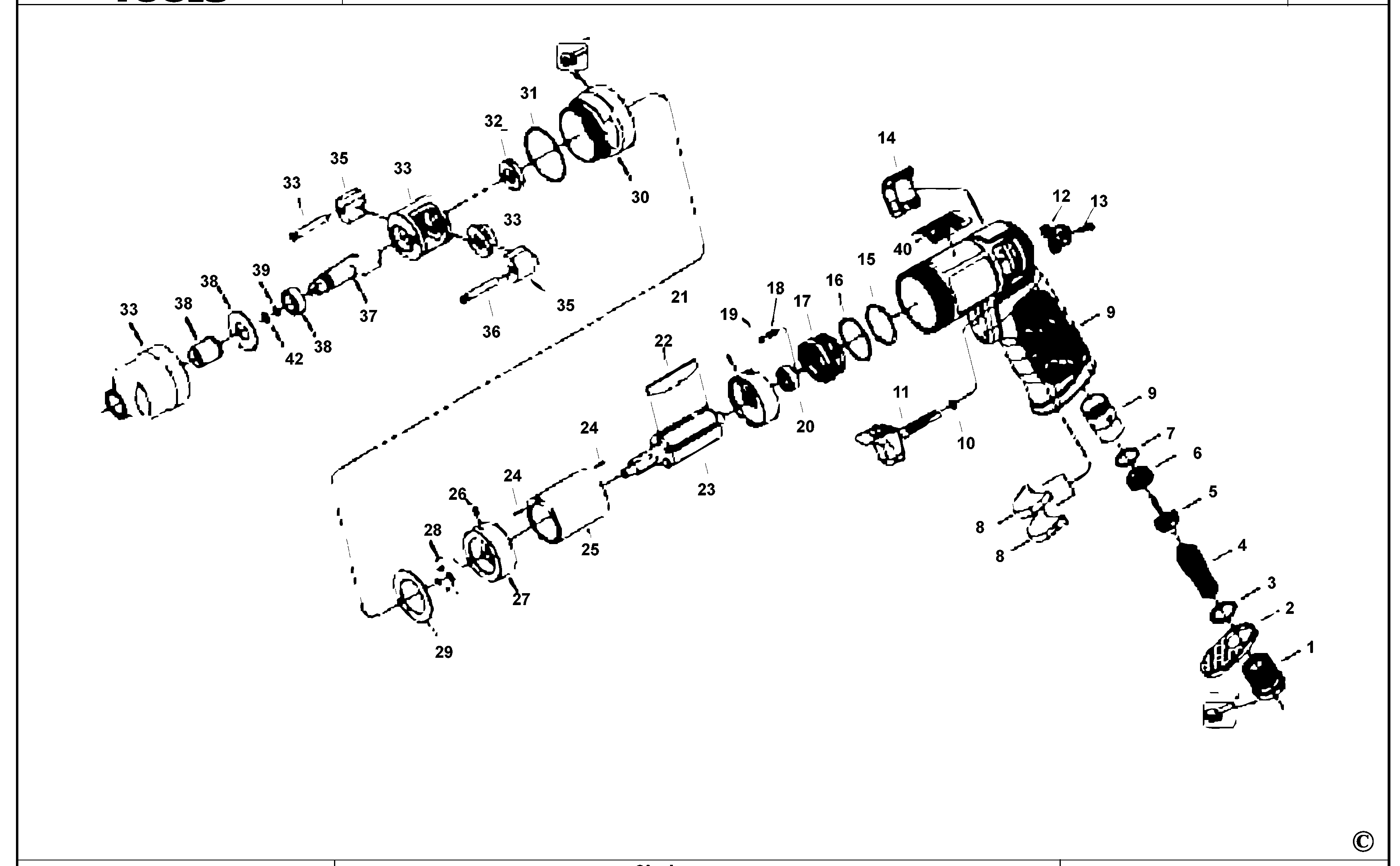

AWP525B IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 31Y200008 | 1 | INLET | XJ |  |
||
| 2 | 31Y200009 | 1 | DEFLECTOR | XJ | |
||
| 3 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | 31Y200011 | 1 | VALVE SEAT | XJ |  |
||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | 31Y200012 | 1 | Muffler | XJ | |
||
| 9 | 31H100003 | 1 | HOUSING SA | XJ | |
||
| 10 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 11 | 31Y200014 | 1 | TRIGGER | XJ | |
||
| 12 | 31Y200015 | 1 | KNOB | XJ | |
||
| 13 | 31R200028 | 1 | SCREW | XJ | |
||
| 14 | 31Y200016 | 1 | PLATE | XJ | |
||
| 15 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 16 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 17 | 31Y200017 | 1 | VALVE | XJ | |
||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 21 | 31M200010 | 1 | PLATE | XJ | |
||
| 22 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 23 | 31M200008 | 1 | ROTOR | XJ | |
||
| 24 | 31R200046 | 1 | PIN | XJ | |
||
| 25 | 31M200009 | 1 | CYLINDER | XJ | |
||
| 26 | 31R200034 | 1 | PIN | XJ | |
||
| 27 | 31M200011 | 1 | PLATE | XJ | |
||
| 29 | 31R200036 | 1 | WASHER | XJ | |
||
| 30 | 31H200002 | 1 | NUT | XJ | |
||
| 31 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 32 | 31R200038 | 1 | SPACER | XJ | |
||
| 33 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 35 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 35 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 36 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 37 | 31D200009 | 1 | ANVIL | XJ | |
||
| 38 | 31H100010 | 1 | CASE SA | XJ | |
||
| 39 | 31R200040 | 1 | O RING | XJ | |
||
| 40 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 42 | 31R200041 | 1 | RETAINER | XJ | |
