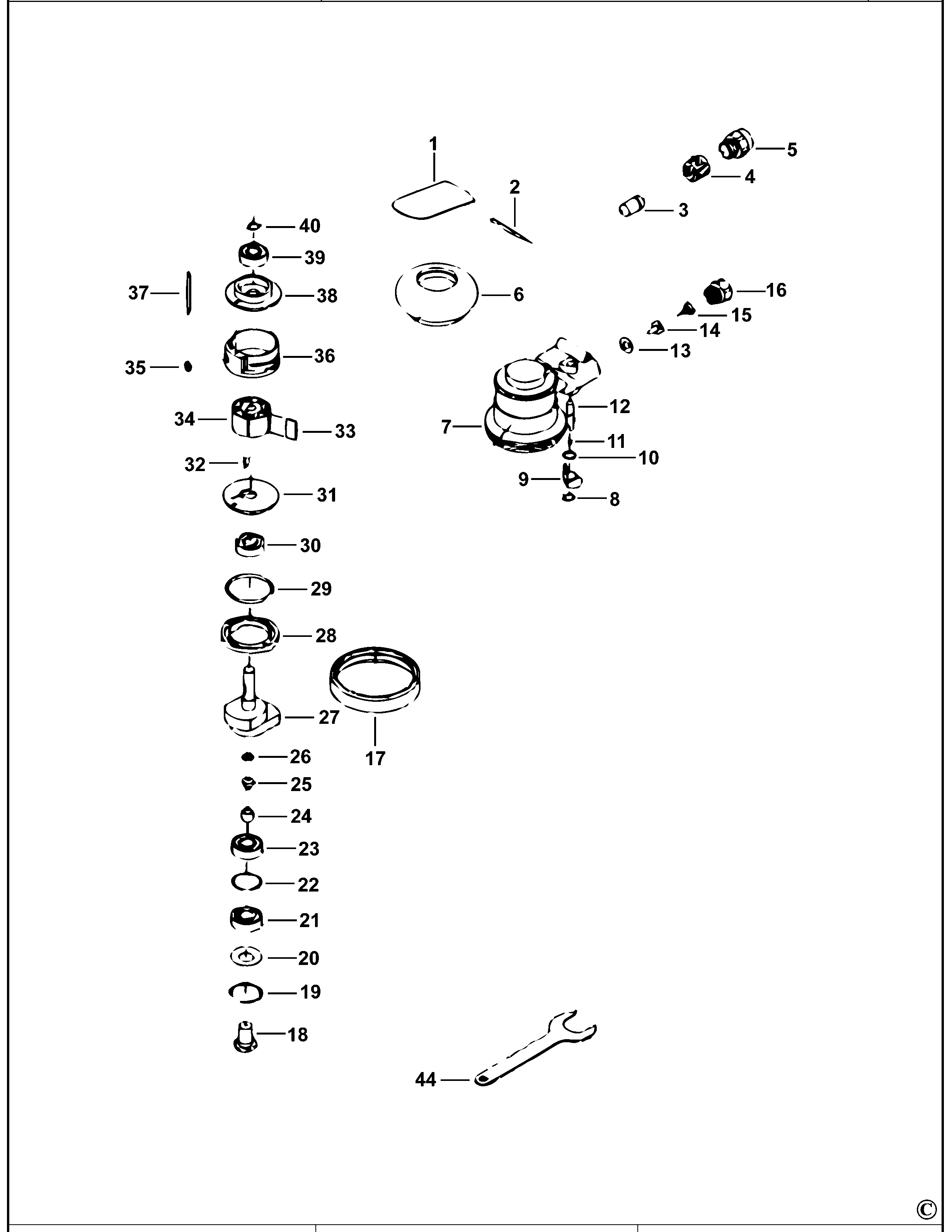

AS416 AIR SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AS416-15K | 1 | LEVER | GB |  |
||
| 2 | AS415-31 | 1 | PIN | GB | |
||
| 3 | AS415-54 | 1 | Muffler | GB | |
||
| 4 | AS415-68 | 1 | INSERT | GB |  |
||
| 5 | AS415-166 | 1 | HOUSING | GB | |
||
| 6 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 7 | AS415-26K | 1 | HOUSING | GB | |
||
| 8 | AS415-39 | 1 | RING | GB | |
||
| 9 | AS415-14B | 1 | CONTROL | GB | |
||
| 10 | AS415-43 | 1 | O RING | GB | |
||
| 11 | AS415-98 | 1 | O RING | GB | |
||
| 12 | AS415-08 | 1 | VALVE STEM | GB | |
||
| 13 | AS415-09 | 1 | VALVE SEAT | GB | |
||
| 14 | AS415-07 | 1 | VALVE | GB | |
||
| 15 | AS415-14 | 1 | SPRING | GB | |
||
| 16 | AS415-13 | 1 | BUSHING | GB | |
||
| 17 | AS415-33R | 1 | SHROUD | GB | |
||
| 18 | AS415-18B | 1 | SPINDLE | GB | |
||
| 19 | AS415-18 | 1 | RING | GB | |
||
| 20 | AS415-17 | 1 | WASHER | GB | |
||
| 21 | AS415-20 | 1 | BEARING | GB | |
||
| 22 | AS415-193 | 1 | SHIM | GB | |
||
| 23 | AS415-35 | 1 | BEARING | GB | |
||
| 24 | AS415-120 | 1 | RETAINER | GB | |
||
| 25 | AS415-121 | 1 | VALVE | GB | |
||
| 26 | AS415-122 | 1 | FILTER | GB | |
||
| 28 | AS415-01 | 1 | LOCKING RING | GB | |
||
| 29 | AS415-45 | 1 | O RING | GB | |
||
| 30 | AS415-19 | 1 | BEARING | GB | |
||
| 31 | AS415-64 | 1 | PLATE | GB | |
||
| 32 | AS415-41 | 1 | KEY | GB | |
||
| 33 | AS415-10 | 1 | BLADE | GB | |
||
| 34 | AS415-05B | 1 | KEY | GB | |
||
| 35 | AS415-42 | 1 | O RING | GB | |
||
| 36 | AS415-66B | 1 | CYLINDER SA | GB | |
||
| 37 | AS415-04 | 1 | PIN | GB | |
||
| 38 | AS415-04 | 1 | PIN | GB | |
||
| 39 | AS415-21 | 1 | BEARING | GB | |
||
| 40 | AS415-40 | 1 | RING | GB | |
||
| 44 | AS415-22 | 1 | SPANNER | GB | |
