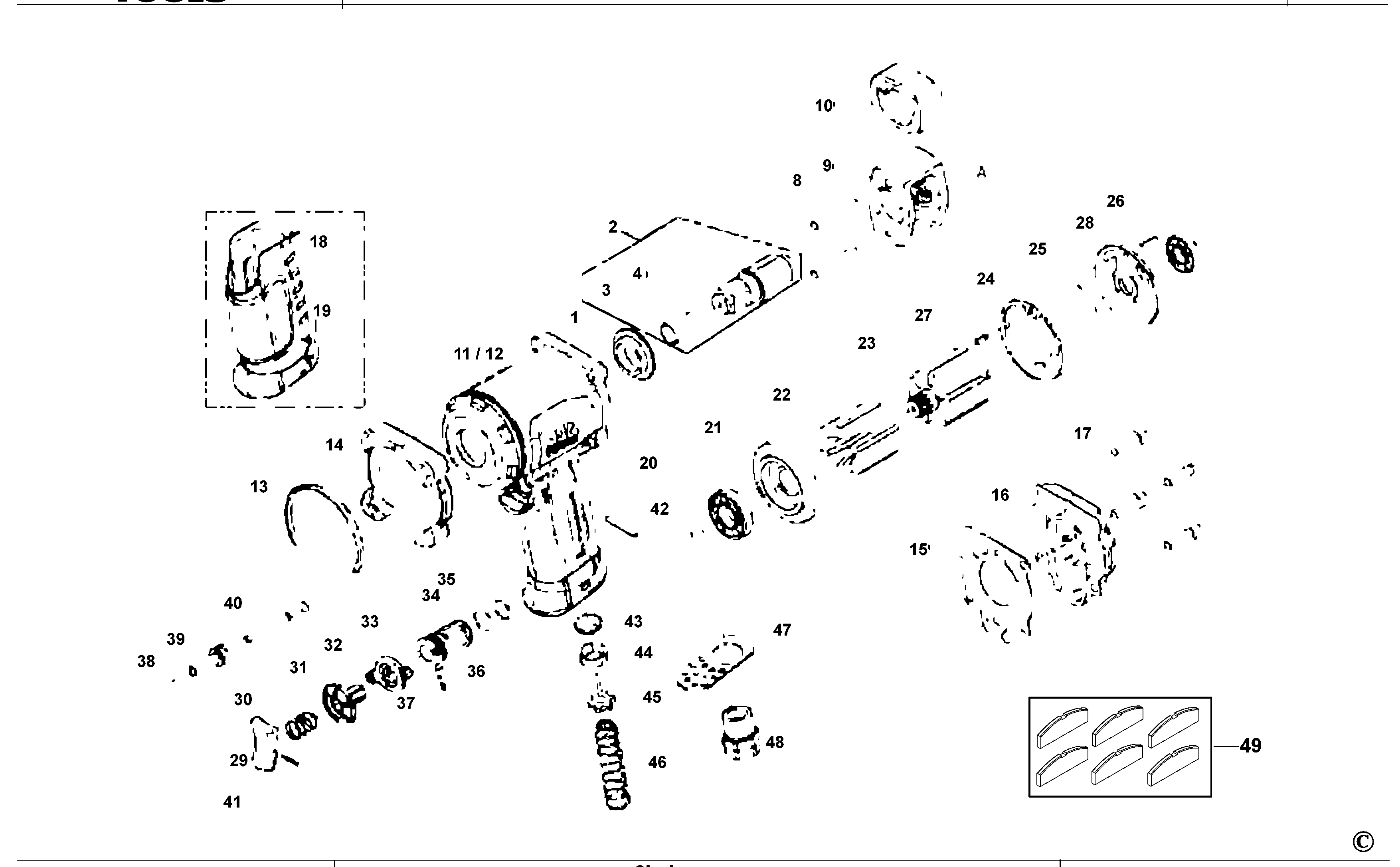

AWP050M IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N449222 | 1 | BUSHING | GB |  |
||
| 2 | N449227 | 1 | ANVIL | GB | |
||
| 3 | N449223 | 1 | RETAINER | GB | |
||
| 4 | N449225 | 1 | O RING | GB | |
||
| 8 | N449229 | 1 | PIN | GB | |
||
| 9 | N449230 | 1 | HAMMER FRAME | GB | |
||
| 10 | N449231 | 1 | HAMMER | GB | |
||
| 12 | N449272 | 1 | HOUSING | 1/2" | GB | |
|
| 13 | N449284 | 1 | BUMPER | GB |  |
||
| 14 | N449285 | 1 | BUMPER | GB | |
||
| 15 | N449286 | 1 | GASKET | GB | |
||
| 16 | N449287 | 1 | COVER REAR | GB | |
||
| 17 | N449288 | 1 | SCREW | GB | |
||
| 18 | N449290 | 1 | HANDLE UPPER | GB | |
||
| 19 | N449291 | 1 | LOWER HANDLE | GB | |
||
| 20 | N449293 | 1 | BEARING | GB | |
||
| 21 | N449298 | 1 | BEARING PLATE | GB | |
||
| 22 | N449299 | 1 | ROTOR BLADE | GB | |
||
| 23 | N449300 | 1 | ROTOR | GB | |
||
| 24 | N449301 | 1 | CYLINDER | GB | |
||
| 25 | N449302 | 1 | PLATE | GB | |
||
| 26 | N449303 | 1 | BEARING | GB | |
||
| 27 | N449304 | 1 | SPIROL PIN | GB | |
||
| 28 | N449305 | 1 | SPIROL PIN | GB | |
||
| 29 | N449296 | 1 | TRIGGER | GB | |
||
| 30 | N449297 | 1 | SPRING | GB | |
||
| 31 | N449306 | 1 | REGULATOR | GB | |
||
| 32 | N449307 | 1 | ACTUATOR FWD/REV | GB | |
||
| 33 | N449315 | 1 | REVERSE VALVE | GB | |
||
| 34 | N449316 | 1 | O RING | GB | |
||
| 35 | N449318 | 1 | BALL | GB | |
||
| 36 | N449318 | 1 | BALL | GB | |
||
| 37 | N449319 | 1 | SPRING | GB | |
||
| 38 | N449320 | 1 | O RING | GB | |
||
| 39 | N449321 | 1 | REGULATOR | GB | |
||
| 40 | N449322 | 1 | ACTUATION ARM | GB | |
||
| 41 | N449323 | 1 | SPIROL PIN | GB | |
||
| 42 | N449324 | 1 | SPIROL PIN | GB | |
||
| 43 | N449325 | 1 | BUSHING | GB | |
||
| 44 | N449326 | 1 | SEAL | GB | |
||
| 45 | N449327 | 1 | VALVE | GB | |
||
| 46 | N449328 | 1 | SPRING | GB | |
||
| 47 | N449330 | 1 | DEFLECTOR | GB | |
||
| 48 | N449332 | 1 | INLET | GB | |
||
| 49 | 1004760-65 | 1 | BLADE SET X6 | GB | |
