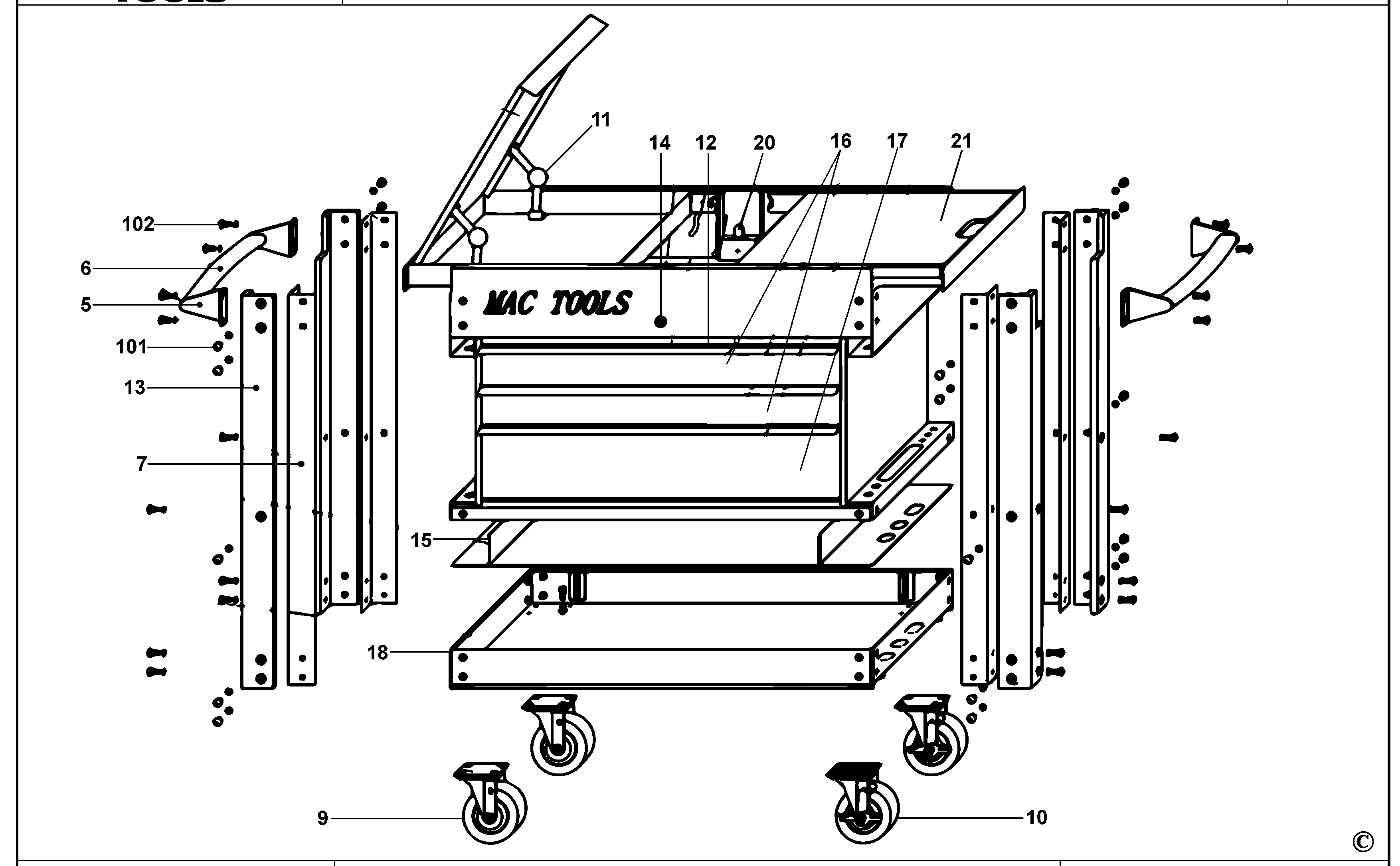

MB197UC ROLLER CABINET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 5 | RS195UCHB | 2 | BRACKET | XJ | |||
| 6 | RS190UCHDL | 2 | HANDLE | XJ |  |
||
| 7 | RS197UCLGR | 4 | LEG | XJ | |
||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | RS195CSM | 2 | WHEEL PIVOT | XJ | |
||
| 10 | RS195LCSM | 2 | WHEEL PIVOT - BRAKE | XJ | |
||
| 11 | RSBKT | 4 | BRACKET | XJ | |
||
| 12 | RS190UCDHBK | 3 | HANDLE | XJ | |
||
| 13 | RS190UCBP | 1 | BUMPER | XJ | |
||
| 14 | RS197LK | 1 | LOCK | XJ |  |
||
| 15 | 000000-00 | 1 | NO LONGER AVAILABLE | RED DIVIDER | XJ | ||
| 16 | MBD197UC1 | 2 | DRAWER | XJ | |
||
| 17 | MBD197UC2 | 1 | DRAWER | XJ | |
||
| 18 | MBS197UC | 1 | SHELF | XJ | |
||
| 19 | RS190UCPBT | 3 | TUBE | XJ | |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | RED LOCK MECHANISM | XJ | ||
| 21 | MB197UCLST | 2 | TOP | XJ | |
||
| 22 | MB197UCST | 2 | TOP | XJ | |
||
| 30 | 000000-00 | 1 | NO LONGER AVAILABLE | PVC LINER KIT | XJ | ||
| 31 | MBC190UCC | 1 | COVER | XJ | |||
| 101 | RS195UCBK | 1 | SCREW KIT | XJ | |
||
| 120 | RS197UCDH | 1 | HANDLE | XJ | |||
| 150 | 000000-00 | 1 | NO LONGER AVAILABLE | BLACK DIVIDER | XJ | ||
| 151 | 000000-00 | 1 | NO LONGER AVAILABLE | BLUE DIVIDER | XJ | ||
| 152 | 000000-00 | 1 | NO LONGER AVAILABLE | YELLOW DIVIDER | XJ | ||
| 153 | 000000-00 | 1 | NO LONGER AVAILABLE | LIME GREEN DIVIDER | XJ | ||
| 154 | 000000-00 | 1 | NO LONGER AVAILABLE | ORANGE DIVIDER | XJ | ||
| 155 | 000000-00 | 1 | NO LONGER AVAILABLE | PURPLE DIVIDER | XJ | ||
| 156 | 000000-00 | 1 | NO LONGER AVAILABLE | GREY DIVIDER | XJ | ||
| 160 | MBD197UC1BK | 2 | DRAWER | XJ | |
||
| 161 | MBD197UC1BL | 2 | DRAWER | XJ | |
||
| 162 | 000000-00 | 2 | NO LONGER AVAILABLE | YELLOW 3" DRAWER | XJ | ||
| 163 | MBD197UC1LG | 2 | DRAWER | XJ | |
||
| 164 | MBD197UC1OR | 1 | DRAWER | XJ | |
||
| 165 | MBD197UC1PP | 1 | DRAWER | XJ | |
||
| 166 | MBD197UC1GRAY | 1 | DRAWER | XJ | |
||
| 171 | 000000-00 | 1 | NO LONGER AVAILABLE | BLACK 6" DRAWER | XJ | ||
| 172 | 000000-00 | 1 | NO LONGER AVAILABLE | BLUE 6" DRAWER | XJ | ||
| 173 | MBD197UC2YE | 1 | DRAWER | XJ | |
||
| 174 | 000000-00 | 1 | NO LONGER AVAILABLE | LIME GREEN 6" DRAWER | XJ | ||
| 175 | 000000-00 | 1 | NO LONGER AVAILABLE | ORANGE 6" DRAWER | XJ | ||
| 176 | MBD197UC2PP | 1 | DRAWER | XJ | |
||
| 177 | 000000-00 | 1 | NO LONGER AVAILABLE | GREY 6" DRAWER | XJ | ||
| 181 | MBS197UCBK | 1 | DRAWER | XJ | |
||
| 182 | MBS197UCBL | 1 | DRAWER | XJ | |
||
| 183 | MBS197UCYE | 1 | SHELF | XJ | |
||
| 184 | MBS197UCLG | 1 | SHELF | XJ | |
||
| 185 | MBS197UCOR | 1 | SHELF | XJ | |
||
| 186 | 000000-00 | 1 | NO LONGER AVAILABLE | PURPLE BOTTOM SHELF | XJ | ||
| 187 | MBS197UCGRAY | 1 | SHELF | XJ | |
||
| 201 | RS197UCLMBK | 1 | LOCK | XJ | |
||
| 202 | RS197UCLMBL | 1 | LOCK | XJ | |
||
| 203 | 000000-00 | 1 | NO LONGER AVAILABLE | YELLOW LOCK MECH | XJ | ||
| 204 | RS197UCLMLG | 1 | LOCK | XJ | |
||
| 205 | RS197UCLMOR | 1 | LOCK | XJ | |
||
| 206 | 000000-00 | 1 | NO LONGER AVAILABLE | PURPLE LOCK MECHNSM | XJ | ||
| 207 | 000000-00 | 1 | NO LONGER AVAILABLE | GREY LOCK MECHNSM | XJ | ||
| 210 | MB197UCLSTBK | 2 | TOP | XJ | |
||
| 211 | MB197UCLSTBL | 2 | TOP | XJ | |
||
| 212 | MB197UCLSTYE | 1 | TOP | XJ | |
||
| 213 | MB197UCLSTLG | 2 | TOP | XJ | |
||
| 214 | MB197UCLSTOR | 2 | TOP | XJ | |
||
| 215 | 000000-00 | 2 | NO LONGER AVAILABLE | PURPLE TOP | XJ | ||
| 216 | MB197UCLSTGRAY | 1 | TOP | XJ | |
||
| 220 | 000000-00 | 2 | NO LONGER AVAILABLE | BLACK RIGHT TOP | XJ | ||
| 221 | 000000-00 | 2 | NO LONGER AVAILABLE | BLUE RIGHT TOP | XJ | ||
| 222 | MB197UCSTYE | 2 | TOP | XJ | |
||
| 223 | MB197UCSTLG | 2 | TOP | XJ | |
||
| 224 | MB197UCST-OR | 2 | TOP | XJ | |
||
| 225 | MB197UCSTPP | 2 | TOP | XJ | |
||
| 226 | MB197UCSTGRAY | 2 | TOP | XJ | |
||
| 701 | RS197UCLGBK | 4 | LEG | XJ | |
||
| 702 | RS197UCLGBL | 4 | LEG | XJ | |
||
| 703 | RS197UCLGYE | 1 | LEG | XJ | |
||
| 704 | 000000-00 | 4 | NO LONGER AVAILABLE | LIME GREEN | XJ | ||
| 705 | 000000-00 | 4 | NO LONGER AVAILABLE | ORANGE | XJ | ||
| 706 | 000000-00 | 1 | NO LONGER AVAILABLE | PURPLE | XJ | ||
| 707 | 000000-00 | 1 | NO LONGER AVAILABLE | GREY | XJ |
