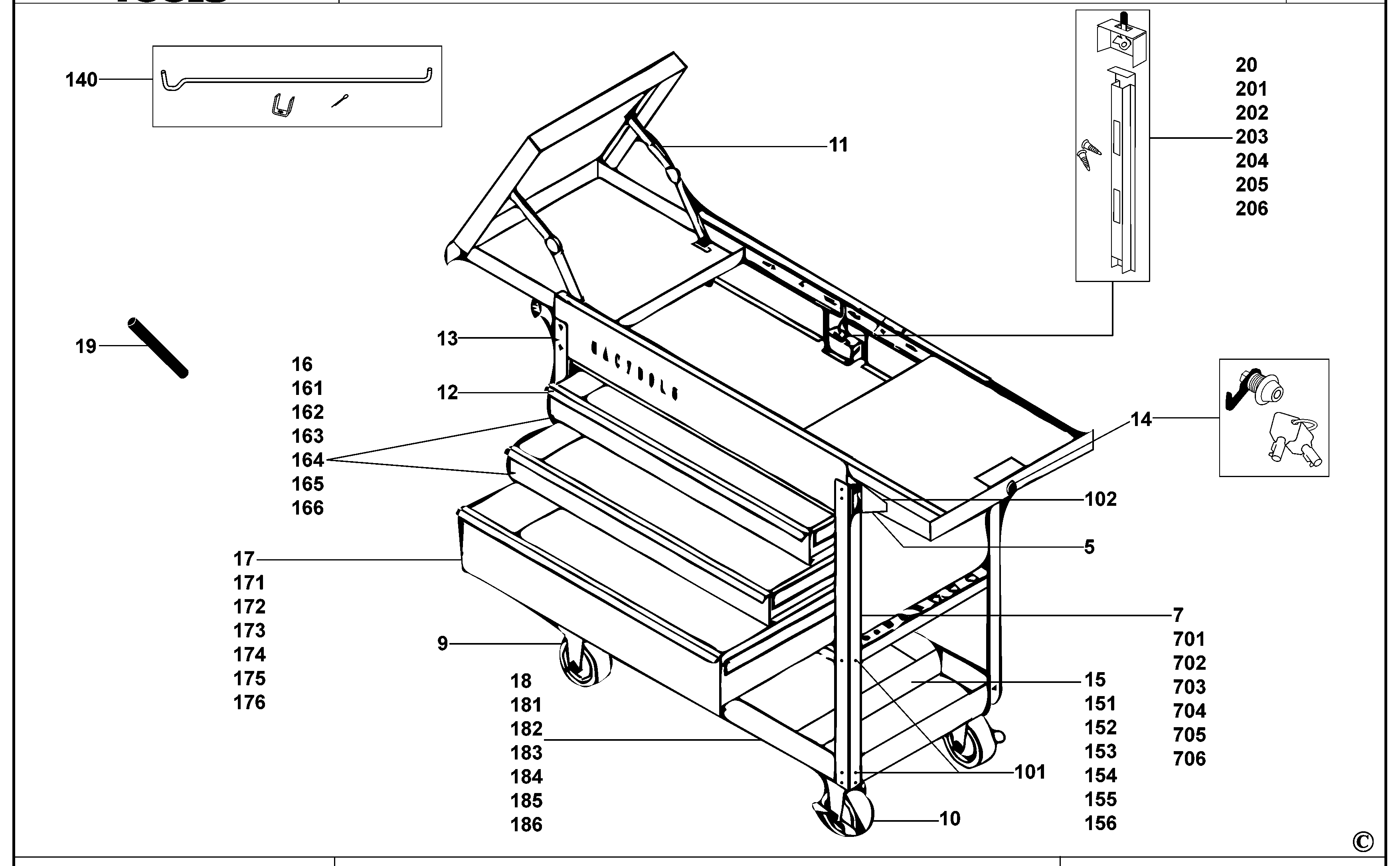

MB195UC ROLLER CABINET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 5 | RS195UCHB | 2 | BRACKET | XJ | |||
| 6 | RS190UCHDL | 2 | HANDLE | XJ |  |
||
| 7 | 000000-00 | 4 | NO LONGER AVAILABLE | RED LEG | XJ | ||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | Set Of 16 FASTENERS | XJ | ||
| 9 | RS195CSM | 2 | WHEEL PIVOT | XJ | |
||
| 10 | RS195LCSM | 2 | WHEEL PIVOT - BRAKE | XJ | |
||
| 11 | RSBKT | 2 | BRACKET | XJ | |
||
| 12 | RS190UCDHBK | 3 | HANDLE | XJ | |
||
| 13 | RS190UCBP | 1 | BUMPER | XJ | |
||
| 14 | RSLKA | 1 | LOCK | XJ | |
||
| 15 | 000000-00 | 1 | NO LONGER AVAILABLE | RED DIVIDER | XJ | ||
| 16 | 000000-00 | 2 | NO LONGER AVAILABLE | RED 3" DRAWER | XJ | ||
| 17 | MBD195UC2 | 1 | DRAWER | XJ | |
||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 19 | RS190UCPBT | 3 | TUBE | XJ | |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 22 | MB195UCSTP-YE | 1 | TOP | XJ | |
||
| 101 | RS195UCBK | 1 | SCREW KIT | XJ | |
||
| 102 | 000000-00 | 1 | NO LONGER AVAILABLE | 8 M80x20 BOLTS | XJ | ||
| 140 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 150 | RSSCD-BK | 1 | SHELF | XJ | |
||
| 151 | 000000-00 | 1 | NO LONGER AVAILABLE | BLUE DIVIDER | XJ | ||
| 152 | RSSCD-GR | 1 | SHELF | XJ | |
||
| 153 | RSSCD-NG | 1 | SHELF | XJ | |
||
| 154 | RSSCD-OR | 1 | SHELF | XJ | |
||
| 155 | 000000-00 | 1 | NO LONGER AVAILABLE | PURPLE DIVIDER | XJ | ||
| 156 | 000000-00 | 1 | NO LONGER AVAILABLE | YELLOW DIVIDER | XJ | ||
| 160 | MBD195UC1-BK | 2 | DRAWER | XJ | |
||
| 161 | MBD195UC1-BL | 2 | DRAWER | XJ | |
||
| 162 | MBD195UC1-GR | 2 | DRAWER | XJ | |
||
| 163 | MBD195UC1-NG | 2 | DRAWER | XJ | |
||
| 164 | MBD195UC1-OR | 2 | DRAWER | XJ | |
||
| 165 | MBD195UC1-PP | 2 | DRAWER | XJ | |
||
| 166 | MBD195UC1-YE | 2 | DRAWER | XJ | |
||
| 171 | MBD195UC2-BL | 1 | DRAWER | XJ | |
||
| 172 | 000000-00 | 1 | NO LONGER AVAILABLE | GREEN 6" DRAWER | XJ | ||
| 173 | MBD195UC2-NG | 1 | DRAWER | XJ | |
||
| 174 | MBD195UC2-OR | 1 | DRAWER | XJ | |
||
| 175 | 000000-00 | 1 | NO LONGER AVAILABLE | PURPLE 6" DRAWER | XJ | ||
| 176 | MBD195UC2-YE | 1 | DRAWER | XJ | |
||
| 180 | 000000-00 | 1 | NO LONGER AVAILABLE | BLACK SHELF | XJ | ||
| 181 | MBS195UC-BL | 1 | SHELF | XJ | |
||
| 182 | 000000-00 | 1 | NO LONGER AVAILABLE | GREEN | XJ | ||
| 183 | 000000-00 | 1 | NO LONGER AVAILABLE | NEON GREEN SHELF | XJ | ||
| 184 | MBS195UC-OR | 1 | SHELF | XJ | |
||
| 185 | MBS195UC-PP | 1 | SHELF | XJ | |
||
| 186 | MBS195UC-YE | 1 | SHELF | XJ | |
||
| 201 | 000000-00 | 1 | NO LONGER AVAILABLE | BLACK LOCKNG MECHNSM | XJ | ||
| 202 | RS190UCLMBL | 1 | LOCKING DEVICE | XJ | |
||
| 203 | 000000-00 | 1 | NO LONGER AVAILABLE | GREEN LOCKNG MECHNSM | XJ | ||
| 204 | 000000-00 | 1 | NO LONGER AVAILABLE | NEON GREEN LOCKNG | XJ | ||
| 205 | 000000-00 | 1 | NO LONGER AVAILABLE | ORANGE LOCK MECHANSM | XJ | ||
| 206 | 000000-00 | 1 | NO LONGER AVAILABLE | PURPLE LOCK MECHANSM | XJ | ||
| 701 | RS195UCLG-BK | 4 | LEG | XJ | |
||
| 702 | 000000-00 | 4 | NO LONGER AVAILABLE | BLUE LEG | XJ | ||
| 703 | RS195UCLG-GR | 4 | LEG | XJ | |
||
| 704 | 000000-00 | 4 | NO LONGER AVAILABLE | NEON GREEN | XJ | ||
| 705 | 000000-00 | 4 | NO LONGER AVAILABLE | ORANGE | XJ | ||
| 706 | 000000-00 | 4 | NO LONGER AVAILABLE | PURPLE | XJ | ||
| 707 | 000000-00 | 4 | NO LONGER AVAILABLE | YELLOW | XJ |
