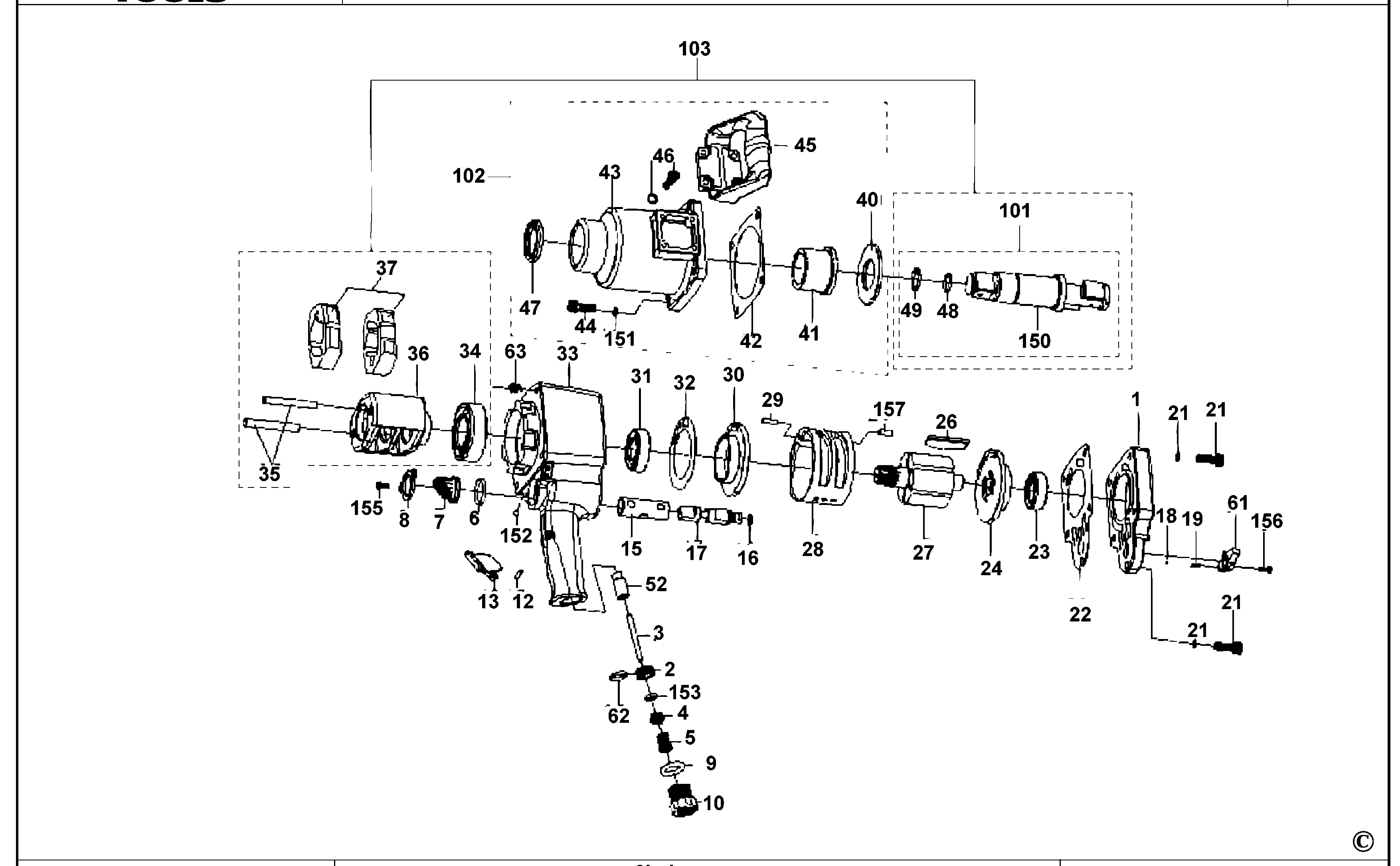

AWP599A IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 31M200043 | 1 | CASE | XJ |  |
||
| 2 | 31Y200050 | 1 | Seat | XJ |  |
||
| 3 | 31R200171 | 1 | PLUNGER | XJ | |
||
| 4 | 31Y200051 | 1 | VALVE | XJ | |
||
| 5 | 31R200172 | 1 | SPRING | XJ | |
||
| 6 | 31R200173 | 1 | O RING | XJ | |
||
| 7 | 31Y200052 | 1 | DEFLECTOR | XJ | |
||
| 8 | 31R200174 | 1 | RETAINER | XJ | |
||
| 9 | 31R200175 | 1 | O RING | XJ | |
||
| 10 | 31Y200053 | 1 | INLET | XJ | |
||
| 12 | 31R200176 | 1 | PIN | XJ | |
||
| 13 | 31Y200054 | 1 | TRIGGER | XJ | |
||
| 15 | 31R200177 | 1 | BUSHING | XJ | |
||
| 16 | 31R200178 | 1 | O RING | XJ | |
||
| 17 | 31Y200055 | 1 | VALVE | XJ | |
||
| 18 | 31R200179 | 1 | BALL STEEL | XJ | |
||
| 19 | 31R200180 | 1 | SPRING | XJ | |
||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 22 | 31G200012 | 1 | GASKET | XJ | |
||
| 23 | 31R200182 | 1 | BEARING REAR | XJ | |
||
| 24 | 31M100008 | 1 | PLATE SA | XJ | |
||
| 26 | 31M200044 | 1 | BLADE | XJ | |
||
| 27 | 31M200045 | 1 | ROTOR | XJ | |
||
| 28 | 31M200046 | 1 | CYLINDER | XJ | |
||
| 29 | 31R200209 | 1 | PIN | XJ | |
||
| 30 | 31M100010 | 1 | GASKET | XJ | |
||
| 31 | 31R200184 | 1 | BEARING | XJ | |
||
| 32 | 31G200014 | 1 | GASKET | XJ | |
||
| 33 | 31H100005 | 1 | HOUSING SA | XJ | |
||
| 34 | 31R200186 | 1 | BEARING | XJ | |
||
| 35 | 31D200035 | 1 | PIN | XJ | |
||
| 36 | 31D200036 | 1 | FRAME | XJ | |
||
| 37 | 31D200037 | 1 | HAMMER | XJ | |
||
| 40 | 31R200187 | 1 | WASHER | XJ | |
||
| 41 | 31R200197 | 1 | BUSHING | XJ | |
||
| 42 | 31G200013 | 1 | GASKET | XJ | |
||
| 42 | 31G200013 | 1 | GASKET | XJ | |
||
| 44 | 31R100001 | 1 | SCREW | XJ | |
||
| 45 | 31H200007 | 1 | SIDE HANDLE | XJ | |
||
| 46 | 31R100003 | 1 | SCREW | XJ | |
||
| 47 | 31R200191 | 1 | SEAL | XJ | |
||
| 48 | 31R200192 | 1 | O RING | XJ | |
||
| 48 | 31R200192 | 1 | O RING | XJ | |
||
| 49 | 31R200193 | 1 | RETAINER | XJ | |
||
| 52 | 31R200194 | 1 | BUSHING | XJ | |
||
| 61 | 31Y200056 | 1 | KNOB | XJ | |
||
| 62 | 31R200195 | 1 | O RING | XJ | |
||
| 63 | 31R200196 | 1 | HELI-COIL | XJ | |
||
| 102 | 31H100015 | 1 | CASE SA | XJ | |
||
| 150 | 31D200038 | 1 | ANVIL | XJ | |
||
| 151 | 31R200148 | 1 | WASHER | XJ | |
||
| 152 | 31R200185 | 1 | BALL | XJ | |
||
| 153 | 31R100001 | 1 | SCREW | XJ | |
||
| 155 | 31R200137 | 1 | SCREW | XJ | |
||
| 156 | 31R200181 | 1 | SCREW | XJ | |
||
| 157 | 31R200183 | 1 | PIN | XJ | |
||
| 160 | 31M100014 | 1 | KIT | XJ | |
||
| 161 | 31R200170 | 1 | O RING | XJ | |
