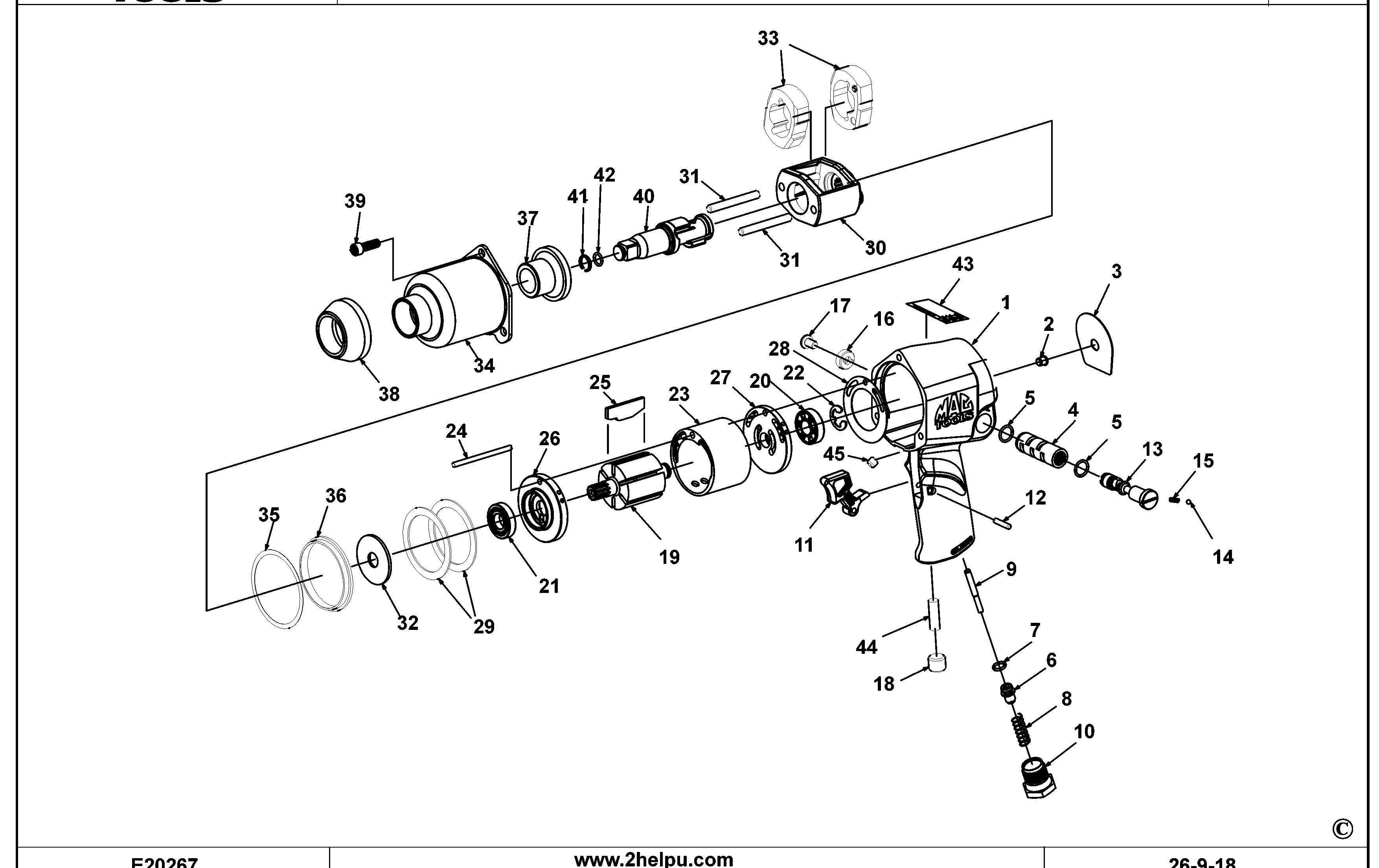

AW434M IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW434M-A40 | 1 | HOUSING SA | XJ |  |
||
| 2 | 130SR-188 | 1 | PLUG | XJ | |
||
| 3 | AW434M-301 | 1 | NAMEPLATE | XJ | |
||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | 404-50-70A | 1 | VALVE | XJ | |
||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | 402-302 | 1 | VALVE STEM | XJ | |
||
| 10 | 402-565 | 1 | PLUG | XJ | |
||
| 11 | 705-93 | 1 | TRIGGER | XJ | |
||
| 12 | 533-656 | 1 | PIN | XJ | |
||
| 13 | 231-329A | 1 | VALVE | XJ | |
||
| 14 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 15 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 16 | 231-666 | 1 | BALL | XJ | |
||
| 17 | 231-665 | 1 | SCREW | XJ | |
||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 19 | 231-53 | 1 | ROTOR | XJ |  |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 22 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 23 | 231XP-3 | 1 | CYLINDER | XJ | |
||
| 24 | 230-98 | 1 | DOWEL | XJ | |||
| 25 | 2131-42A-6 | 1 | ROTOR BLADE | XJ | |
||
| 26 | 231-A11 | 1 | END PANEL. FRONT | XJ | |
||
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 29 | 227-207 | 1 | WASHER | XJ | |||
| 30 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 31 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 32 | 231-706 | 1 | WASHER | XJ | |
||
| 33 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 34 | AW434-A727 | 1 | CASE SA | XJ | |
||
| 35 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 36 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 37 | 705-941 | 1 | BUSHING | XJ | |||
| 38 | AW234-109 | 1 | SHIELD | XJ | |
||
| 39 | 131-638 | 1 | SCREW | XJ | |
||
| 40 | 231B-A626 | 1 | ANVIL ASSEMBLY | XJ | |
||
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 42 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 43 | WARNING-2-99 | 1 | LABEL | XJ | |||
| 44 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 46 | 231XP-A703 | 1 | KIT SA | XJ | |
