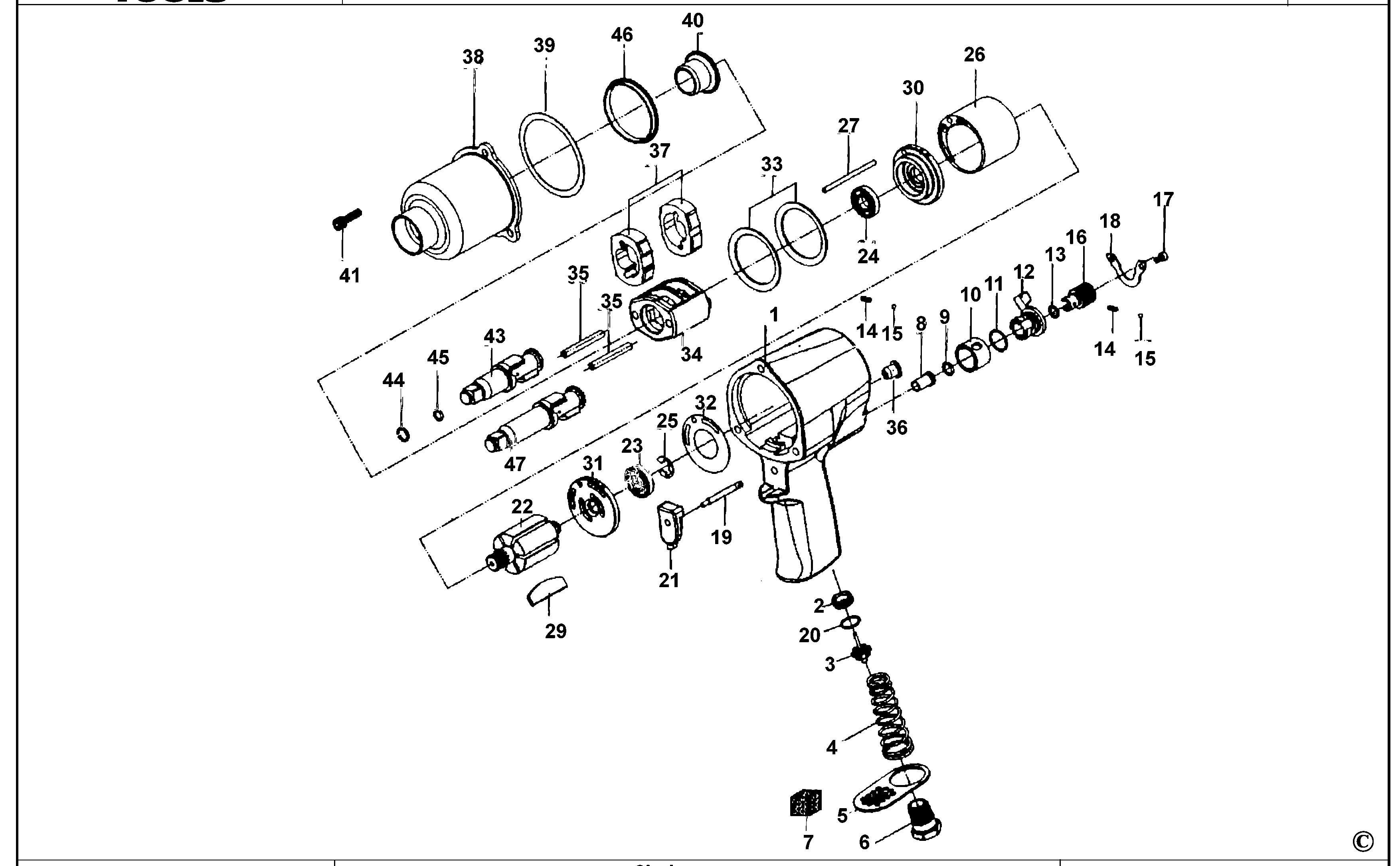

AW240 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW240-1A | 1 | HOUSING MOTOR | XJ |  |
||
| 2 | AW240-2A | 1 | VALVE SEAT | XJ | |
||
| 3 | AW240-3A | 1 | VALVE | XJ | |
||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 10 | AW240-10 | 1 | BUSHING | XJ | |
||
| 11 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 12 | AW240-12 | 1 | VALVE | XJ | |
||
| 13 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 14 | AW240-14 | 1 | SPRING | XJ | |
||
| 15 | AW240-15 | 1 | BALL STEEL | XJ | |
||
| 16 | AW240-16 | 1 | REGULATOR | XJ | |
||
| 17 | AW240-17 | 1 | SCREW | XJ | |
||
| 18 | AW240-18 | 1 | RETAINER | XJ | |
||
| 19 | AW240-19 | 1 | PIN | XJ | |
||
| 20 | AW240-20A | 1 | O RING | XJ | |
||
| 21 | AW240-21A | 1 | TRIGGER | XJ | |
||
| 22 | AW240-22 | 1 | ROTOR | XJ | |
||
| 23 | AW240-23 | 1 | BEARING | XJ | |
||
| 24 | AW240-24 | 1 | BEARING | XJ | |
||
| 25 | AW240-25 | 1 | RETAINER | XJ | |
||
| 26 | AW240-26 | 1 | CYLINDER | XJ | |
||
| 27 | AW240-27 | 1 | DOWEL | XJ | |
||
| 29 | AW240-29 | 1 | BLADE | XJ | |
||
| 30 | AW240-30 | 1 | PLATE | XJ | |
||
| 31 | AW240-31 | 1 | PLATE | XJ | |
||
| 32 | AW235-32 | 1 | GASKET | XJ | |
||
| 33 | AW240-33 | 1 | WASHER | XJ | |
||
| 34 | AW240-34 | 1 | FRAME | XJ | |
||
| 35 | AW240-35 | 1 | PIN | XJ | |
||
| 36 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 37 | AW240-37 | 1 | HAMMER | XJ | |
||
| 38 | AW240-38 | 1 | CASE | XJ | |
||
| 39 | AW235-39 | 1 | GASKET | XJ | |
||
| 40 | AW240-40 | 1 | BUSHING | XJ | |
||
| 41 | AW240-41 | 1 | SCREW | XJ | |
||
| 43 | AW240-43A | 1 | ANVIL | XJ | |
||
| 44 | AW240-44 | 1 | RETAINER | XJ | |
||
| 45 | AW240-45 | 1 | O RING | XJ | |
||
| 46 | AW240-38A | 1 | PILOT | XJ | |
||
| 47 | AW240-43B | 1 | ANVIL | XJ | |
