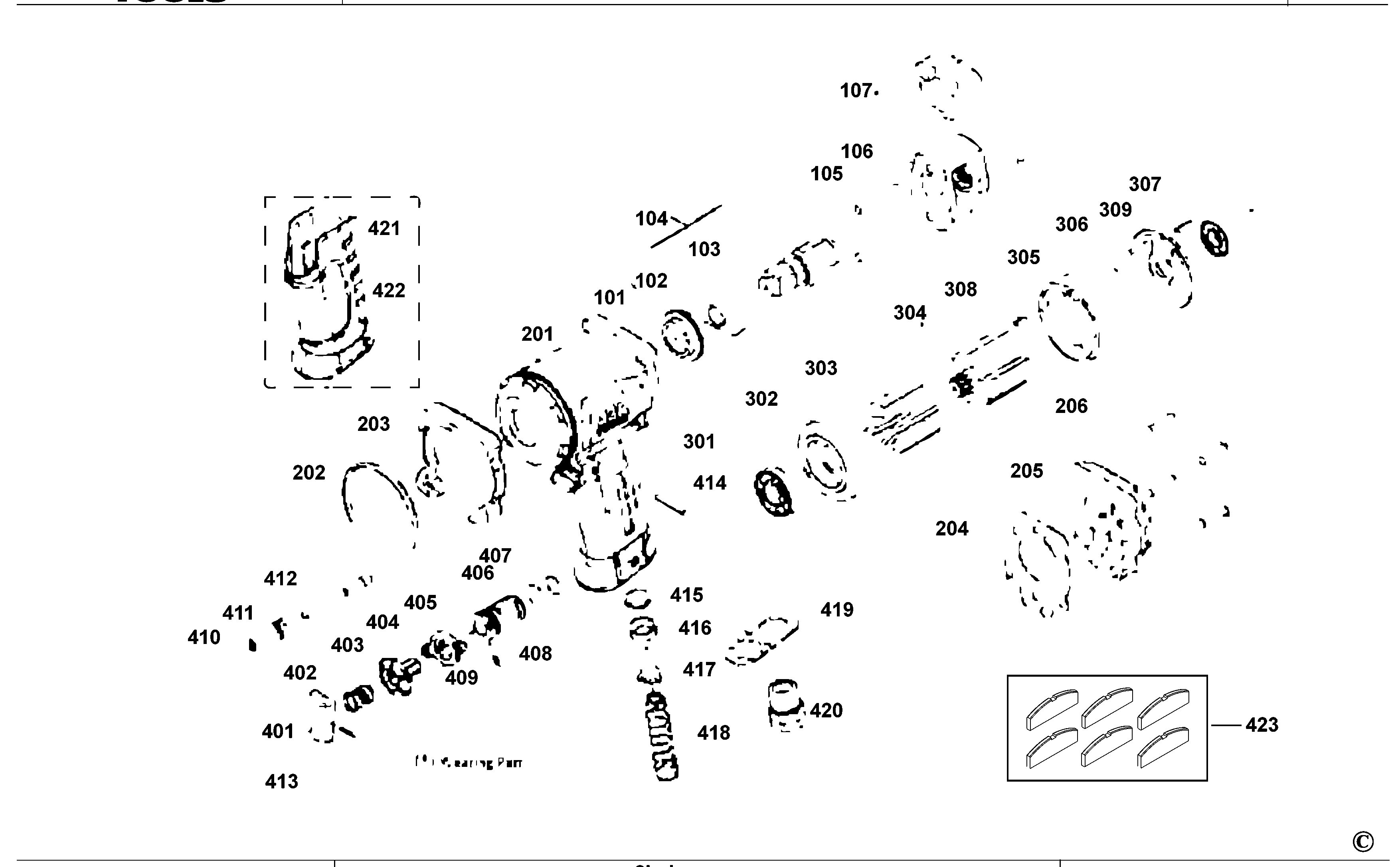

AWP038M IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N449222 | 1 | BUSHING | GB |  |
||
| 102 | N449224 | 1 | RETAINER | GB |  |
||
| 103 | N449226 | 1 | O RING | 3/8" | GB | |
|
| 104 | N449228 | 1 | ANVIL ASSEMBLY | GB | |
||
| 105 | N449229 | 1 | PIN | GB | |
||
| 106 | N449230 | 1 | HAMMER FRAME | GB | |
||
| 107 | N449231 | 1 | HAMMER | GB | |
||
| 201 | N449271 | 1 | HOUSING | GB | |
||
| 202 | N449284 | 1 | BUMPER | GB | |
||
| 203 | N449285 | 1 | BUMPER | GB | |
||
| 204 | N449286 | 1 | GASKET | GB | |
||
| 205 | N449287 | 1 | COVER REAR | GB | |
||
| 206 | N449288 | 1 | SCREW | GB | |
||
| 301 | N449293 | 1 | BEARING | GB | |
||
| 302 | N449298 | 1 | BEARING PLATE | GB | |
||
| 303 | N449299 | 1 | ROTOR BLADE | GB | |
||
| 304 | N449300 | 1 | ROTOR | GB | |
||
| 305 | N449301 | 1 | CYLINDER | GB | |
||
| 306 | N449302 | 1 | PLATE | GB | |
||
| 307 | N449303 | 1 | BEARING | GB | |
||
| 308 | N449304 | 1 | SPIROL PIN | GB | |
||
| 309 | N449305 | 1 | SPIROL PIN | GB | |
||
| 401 | N449296 | 1 | TRIGGER | GB | |
||
| 402 | N449297 | 1 | SPRING | GB | |
||
| 403 | N449306 | 1 | REGULATOR | GB | |
||
| 404 | N449307 | 1 | ACTUATOR FWD/REV | GB | |
||
| 405 | N449315 | 1 | REVERSE VALVE | GB | |
||
| 406 | N449316 | 1 | O RING | GB | |
||
| 407 | N449317 | 1 | O RING | GB | |
||
| 408 | N449318 | 1 | BALL | GB | |
||
| 409 | N449319 | 1 | SPRING | GB | |
||
| 410 | N449320 | 1 | O RING | GB | |
||
| 411 | N449321 | 1 | REGULATOR | GB | |
||
| 412 | N449322 | 1 | ACTUATION ARM | GB | |
||
| 413 | N449323 | 1 | SPIROL PIN | GB | |
||
| 414 | N449324 | 1 | SPIROL PIN | GB | |
||
| 415 | N449325 | 1 | BUSHING | GB | |
||
| 416 | N449326 | 1 | SEAL | GB | |
||
| 417 | N449327 | 1 | VALVE | GB | |
||
| 418 | N449328 | 1 | SPRING | GB | |
||
| 419 | N449330 | 1 | DEFLECTOR | GB | |
||
| 420 | N449332 | 1 | INLET | GB | |
||
| 421 | N449290 | 1 | HANDLE UPPER | GB | |
||
| 422 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 423 | 1004760-65 | 1 | BLADE SET X6 | GB | |
