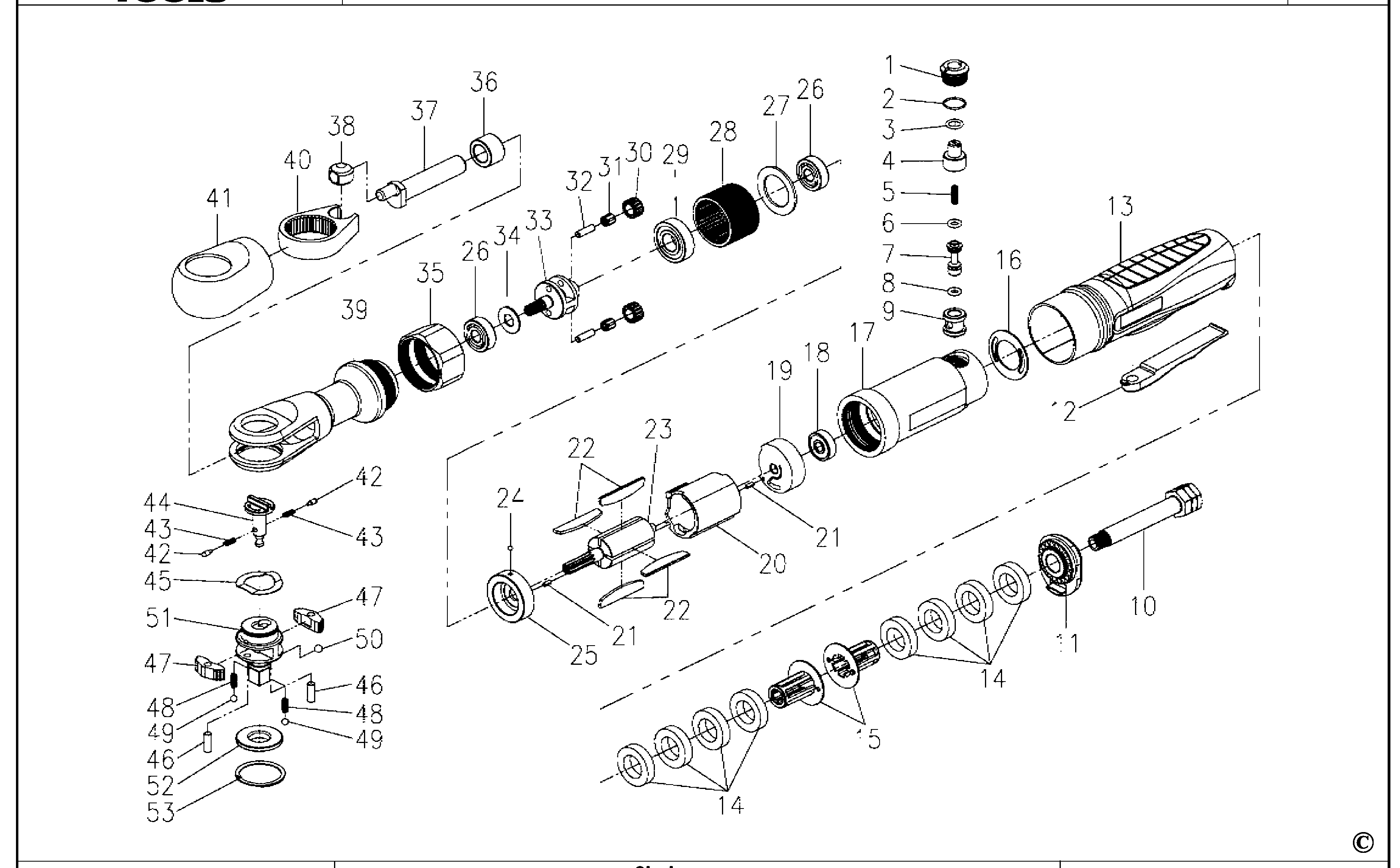

AR199Q RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AR802-01 | 1 | SCREW | GB |  |
||
| 2 | AR800-02 | 1 | O RING | GB | |
||
| 3 | B2325021 | 1 | RING | GB | |
||
| 3 | AR802-02 | 1 | O RING | GB | |
||
| 4 | AR802-03 | 1 | REGULATOR | GB | |
||
| 5 | AR800-05 | 1 | VALVE SPRING | GB | |
||
| 6 | AR802-04 | 1 | VALVE | GB | |
||
| 7 | AR802-05 | 1 | VALVE | GB | |
||
| 8 | AR802-06 | 1 | O RING | GB | |
||
| 9 | AR802-07 | 1 | BUSHING | GB | |
||
| 10 | DD2315001-2 | 1 | INLET | GB | |
||
| 11 | DD2315002 | 1 | DEFLECTOR | GB | |
||
| 12 | DD2315006 | 1 | LEVER | GB | |
||
| 13 | DD2315007H | 1 | Muffler | GB | |
||
| 14 | DD2315003 | 1 | FELT | GB | |
||
| 15 | DD2315004 | 1 | TUBE | GB | |
||
| 16 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 17 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 19 | AR802-17 | 1 | BOTTOM PLATE | GB | |
||
| 20 | AD4313-03 | 1 | CYLINDER | GB | |
||
| 21 | AR802-19 | 2 | DOWEL | GB | |
||
| 22 | AR802-20 | 4 | ROTOR BLADE | GB | |
||
| 23 | AR802-21 | 2 | ROTOR | GB | |
||
| 24 | AR802-22 | 2 | BALL STEEL | GB | |
||
| 25 | AR802-23 | 1 | PLATE | GB | |
||
| 26 | AR800-25 | 1 | BEARING,BALL | GB | |
||
| 27 | AR802-24 | 1 | WASHER | GB | |
||
| 28 | AR802-25 | 1 | INTERGEAR | GB | |
||
| 29 | AR802-26 | 1 | BEARING,BALL | GB | |
||
| 30 | AR802-27 | 2 | IDLER GEAR | GB | |
||
| 31 | AR802-28 | 2 | BUSHING | GB | |
||
| 32 | AR802-29 | 2 | SHAFT | GB | |
||
| 33 | AR802-30 | 1 | GEARCASE | GB | |
||
| 34 | AR802-31 | 1 | WASHER | GB | |
||
| 37 | B2325007B | 1 | CRANKSHAFT | GB | |
||
| 38 | B2325008A | 1 | BUSHING | GB | |
||
| 39 | AR802-35 | 1 | HOUSING | GB | |
||
| 40 | AR802-36 | 1 | YOKE | GB | |
||
| 41 | B2327010/BC | 1 | BOOT | GB | |
||
| 42 | AR802-38 | 2 | LOCK PIN | GB | |
||
| 43 | AR802-39 | 2 | SPRING | GB | |
||
| 45 | B2325020 | 1 | WASHER | GB | |
||
| 46 | AR802-42 | 2 | PIN | GB | |
||
| 47 | AR802-43 | 2 | PAWL | GB | |
||
| 48 | AR802-44 | 2 | SPRING | GB | |
||
| 49 | AR802-45 | 1 | BALL STEEL | GB | |
||
| 50 | AR802-46 | 1 | BALL STEEL | GB | |
||
| 52 | AR802-48 | 1 | WASHER | GB | |
||
| 53 | B2325021 | 1 | RING | GB | |
