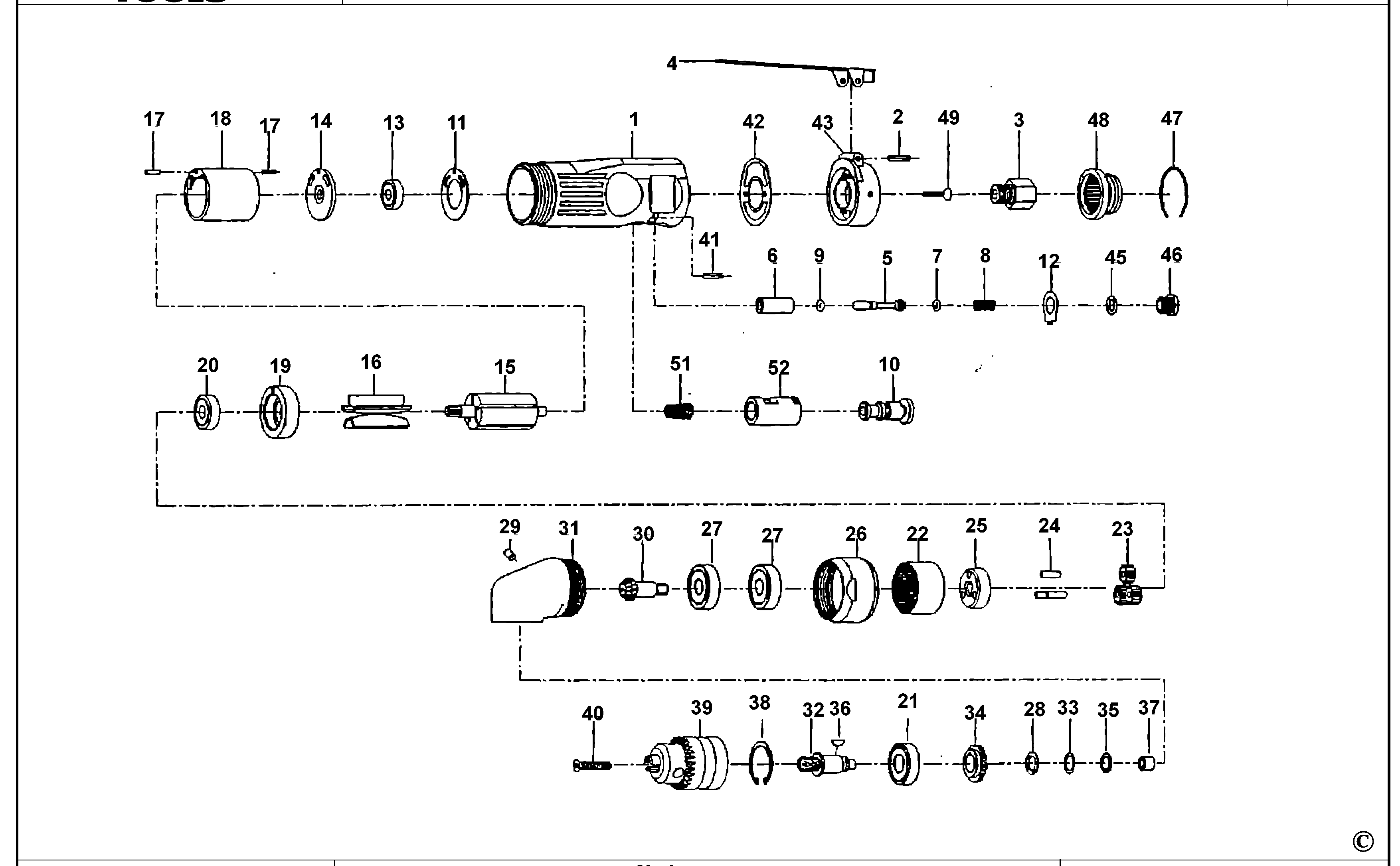

AD3800AH AIR DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AD3800AH-01 | 1 | HOUSING | GB |  |
||
| 2 | AD3800AH-02 | 1 | PIN | GB | |
||
| 3 | AD3800AH-03 | 1 | INLET | GB | |
||
| 4 | AD3800AH-04 | 1 | LEVER | GB | |
||
| 5 | AD3800AH-05 | 1 | VALVE STEM | GB | |
||
| 6 | AD3800AH-06 | 1 | VALVE STEM | GB | |
||
| 7 | AD3800AH-07 | 1 | O RING | GB | |
||
| 8 | AD3800AH-08 | 1 | SPRING | GB | |
||
| 9 | AD3800AH-09 | 1 | O RING | GB | |
||
| 10 | AD3800AH-10 | 1 | LEVER | GB | |
||
| 11 | AD54007 | 1 | GASKET | GB |  |
||
| 12 | AD3800AH-12 | 1 | RETAINER | GB | |
||
| 13 | AD54006 | 1 | BEARING,BALL | GB | |
||
| 14 | AD54008 | 1 | PLATE | GB | |
||
| 15 | AD3800AH-15 | 1 | ROTOR | GB | |
||
| 16 | AD54012 | 1 | BLADE | GB | |
||
| 17 | AD54009 | 1 | PIN | GB | |
||
| 18 | AD3800AH-18 | 1 | CYLINDER | GB | |
||
| 19 | AD3800AH-19 | 1 | PLATE | GB | |
||
| 20 | AD3800AH-20 | 1 | BEARING,BALL | GB | |
||
| 21 | AD3800AH-21 | 1 | BEARING,BALL | GB | |
||
| 22 | AD3800AH-22 | 1 | GEAR | GB | |
||
| 23 | AD3800AH-23 | 1 | GEAR | GB | |
||
| 24 | AD54025 | 1 | PIN | GB | |
||
| 25 | AD3800AH-25 | 1 | CAGE | GB | |
||
| 26 | AD3800AH-25 | 1 | CAGE | GB | |
||
| 27 | AD3800AH-27 | 1 | BEARING,BALL | GB | |
||
| 28 | AD3800AH-28 | 1 | WASHER | GB | |
||
| 29 | AD3800AH-29 | 1 | CAP | GB | |
||
| 30 | AD3800AH-30 | 1 | PINION | GB | |
||
| 31 | AD3800AH-31 | 1 | HOUSING | GB | |
||
| 32 | AD3800AH-32 | 1 | SPINDLE | GB | |
||
| 33 | AD3800AH-33 | 1 | WASHER | GB | |
||
| 34 | AD3800AH-34 | 1 | GEAR | GB | |
||
| 35 | AD3800AH-35 | 1 | RING | GB | |
||
| 36 | AD3800AH-36 | 1 | KEY | GB | |
||
| 37 | AD3800AH-37 | 1 | BUSHING | GB | |
||
| 38 | AD3800AH-38 | 1 | RING | GB | |
||
| 41 | AD3800AH-41 | 1 | SPRING | GB | |
||
| 42 | AD3800AH-42 | 1 | GASKET | GB | |
||
| 43 | AD3800AH-43 | 1 | COVER | GB | |
||
| 45 | AD3800AH-45 | 1 | O RING | GB | |
||
| 46 | AD3800AH-46 | 1 | PLUG | GB | |
||
| 47 | AD3800AH-47 | 1 | RING | GB | |
||
| 48 | AD3800AH-48 | 1 | DIFFUSER | GB | |
||
| 49 | AD3800AH-49 | 1 | SCREW | GB | |
||
| 51 | AD3800AH-51 | 1 | SPRING | GB | |
||
| 52 | AD3800AH-52 | 1 | BUSHING | GB | |
