AWM114 WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page

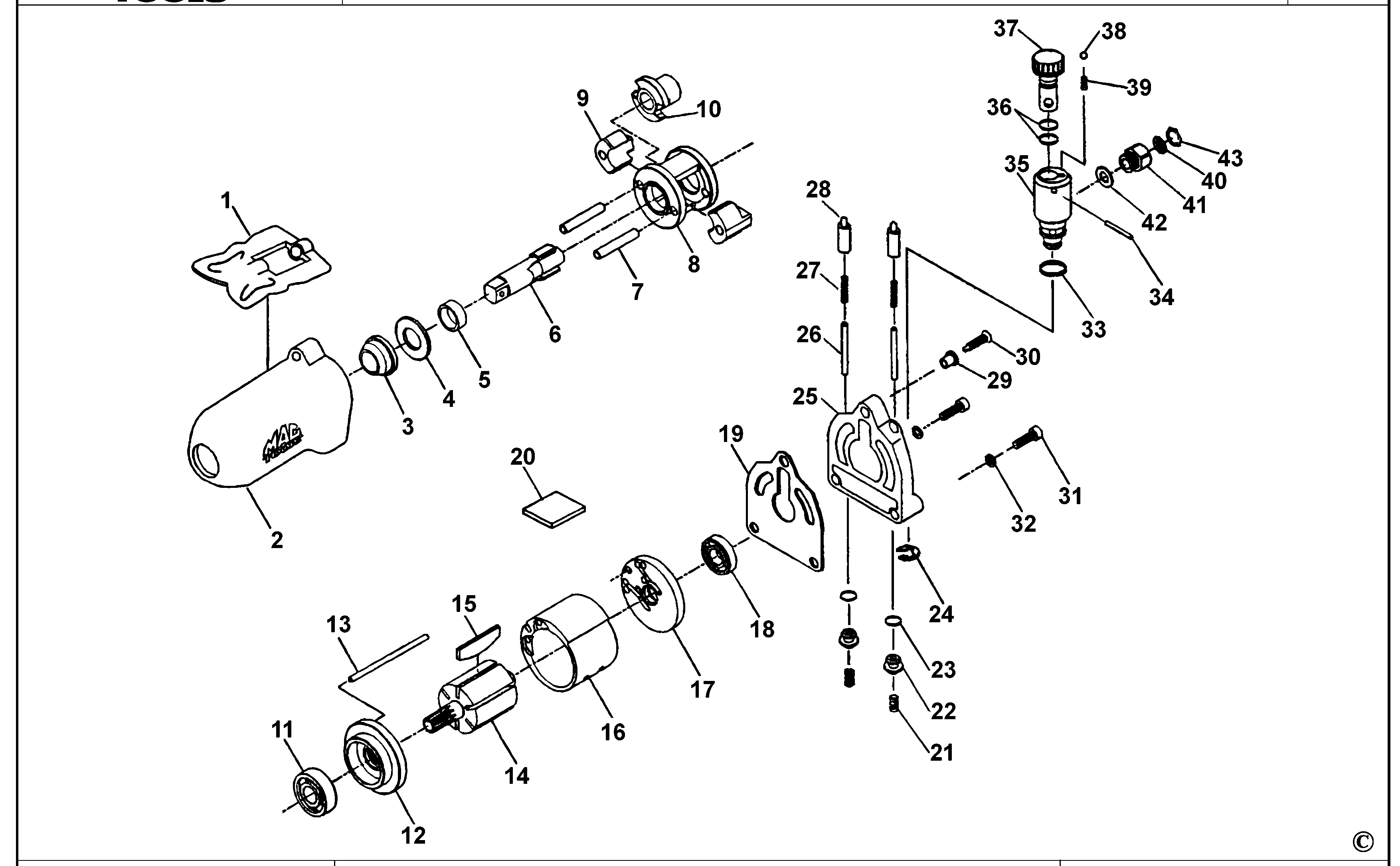

| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AWM114-01 | 1 | LEVER | XJ | |||
| 2 | AWM114-02 | 1 | HOUSING MOTOR | XJ | |||
| 3 | AWM114-03 | 1 | BUSHING | XJ | |||
| 4 | AWM114-04 | 1 | SPACER | XJ | |||
| 5 | AWM114-05 | 1 | BUSHING | XJ | |||
| 6 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 7 | AW825H-17 | 2 | PIN | XJ | |||
| 8 | AW825H-20 | 1 | CAGE | XJ | |||
| 9 | AW825H-18 | 2 | HAMMER | XJ | |||
| 10 | AWM114-12 | 1 | CAM | XJ | |||
| 11 | ADG200-20 | 1 | BEARING PLATE | XJ |  |
||
| 12 | AWM114-14 | 1 | PLATE | XJ | |||
| 13 | AW855-05 | 1 | PIN | XJ |  |
||
| 14 | AWM114-16 | 1 | ROTOR | XJ | |||
| 15 | AW825H-25 | 5 | BLADE | XJ | |
||
| 16 | AWM114-18 | 1 | CYLINDER | XJ | |||
| 17 | AW855-06 | 1 | PLATE | XJ | |
||
| 18 | AR133-11 | 1 | BEARING | XJ | |
||
| 19 | AWM114-21 | 1 | GASKET | XJ | |
||
| 20 | AWM114-22 | 1 | SILENCER | XJ | |||
| 21 | AW136-06 | 2 | SPRING | XJ | |
||
| 22 | AW855-23 | 2 | VALVE | XJ | |||
| 23 | AR133-09 | 2 | O RING | XJ | |
||
| 24 | AWM114-26 | 1 | RING | XJ | |
||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 26 | AWM114-28 | 2 | PIN | XJ | |||
| 27 | AW138-41 | 2 | SPRING | XJ | |
||
| 28 | AWM114-30 | 2 | PLUNGER | XJ | |||
| 29 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 30 | AWM114-32 | 1 | BOLT | XJ | |
||
| 31 | AS725-02 | 2 | BOLT | XJ | |
||
| 32 | AW145-046 | 2 | WASHER | XJ | |
||
| 33 | AWM114-35 | 1 | O RING | XJ | |
||
| 34 | AD901-16 | 1 | PIN | XJ | |
||
| 35 | AWM114-37 | 1 | BUSHING | XJ | |
||
| 36 | AWM114-38 | 2 | O RING | XJ | |
||
| 37 | AWM114-39 | 1 | REGULATOR | XJ | |
||
| 38 | AD527-44 | 1 | BALL | XJ | |
||
| 39 | AW855-15 | 1 | SPRING | XJ | |
||
| 40 | AD527-39 | 1 | SCREEN | XJ | |
||
| 41 | AWM114-43 | 1 | BUSHING | XJ | |
||
| 42 | AWM114-44 | 1 | WASHER | XJ | |
||
| 43 | AWM114-45 | 1 | NUT | XJ |
