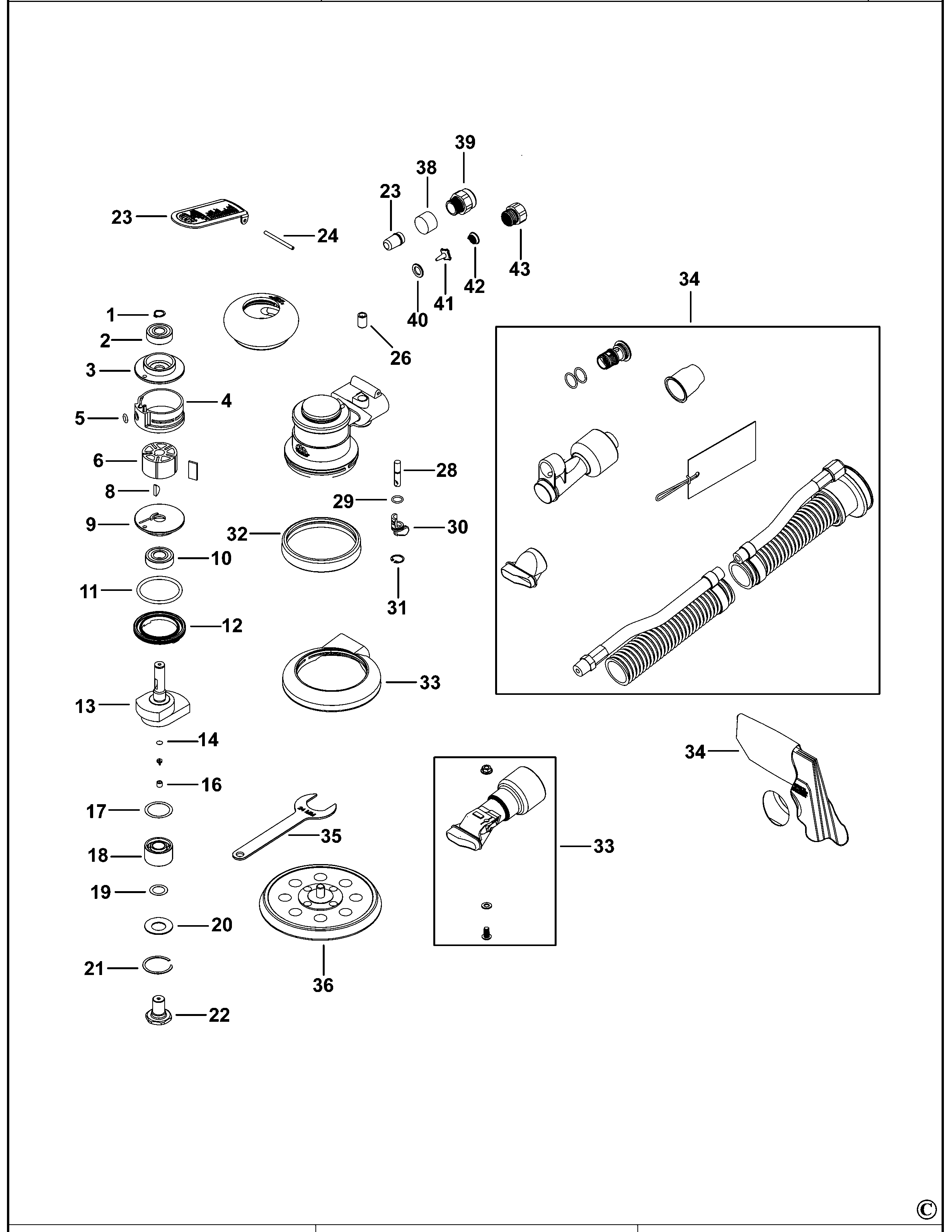

AS6FMS-PSA ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AS415-40 | 1 | RING | XJ |  |
||
| 2 | AS415-21 | 1 | BEARING | XJ |  |
||
| 3 | AS3MS-13 | 1 | PLATE | XJ | |
||
| 4 | AS3MS-11 | 1 | CYLINDER SA | XJ | |
||
| 5 | AS415-42 | 1 | O RING | XJ | |
||
| 6 | AS415-05B | 1 | KEY | XJ | |
||
| 8 | AS415-41 | 1 | KEY | XJ | |
||
| 9 | AS3MS-12 | 1 | PLATE | XJ | |
||
| 10 | AS415-19 | 1 | BEARING | XJ | |
||
| 11 | AS415-45 | 1 | O RING | XJ | |
||
| 12 | AS415-01 | 1 | LOCKING RING | XJ | |
||
| 13 | AS6FMS-01 | 1 | LEVEL | XJ | |
||
| 14 | AS415-122 | 1 | FILTER | XJ | |
||
| 16 | AS415-120 | 1 | RETAINER | XJ | |
||
| 17 | AS5MS-03 | 1 | SHIM | XJ | |
||
| 18 | AS5MS-04 | 1 | BEARING | XJ | |
||
| 19 | AS415-16 | 1 | SPACER | XJ | |
||
| 20 | AS415-17 | 1 | WASHER | XJ | |
||
| 21 | AS415-18 | 1 | RING | XJ | |
||
| 22 | AS415-18B | 1 | SPINDLE | XJ | |
||
| 23 | AS6FMS-02 | 1 | LEVER | XJ | |
||
| 24 | AS415-31 | 1 | PIN | XJ | |
||
| 26 | AS3MS-01 | 1 | SLEEVE | XJ | |
||
| 28 | AS415-08 | 1 | VALVE STEM | XJ | |
||
| 29 | AS415-43 | 1 | O RING | XJ | |
||
| 30 | AS415-14B | 1 | CONTROL | XJ | |
||
| 31 | AS415-39 | 1 | RING | XJ | |
||
| 32 | AS415-33R | 1 | SHROUD | XJ | |
||
| 33 | AS6MS-VA-KIT | 1 | SWITCH KIT | XJ | |
||
| 34 | AS6MS-DF-KIT | 1 | SWITCH KIT | XJ | |
||
| 35 | AS415-22 | 1 | SPANNER | XJ | |
||
| 36 | AS6MS-PSA-PAD | 1 | PAD | XJ | |||
| 38 | AS415-68 | 1 | INSERT | XJ | |
||
| 39 | AS415-166 | 1 | HOUSING | XJ | |
||
| 41 | AS415-07 | 1 | VALVE | XJ | |
||
| 43 | AS415-13 | 1 | BUSHING | XJ | |
