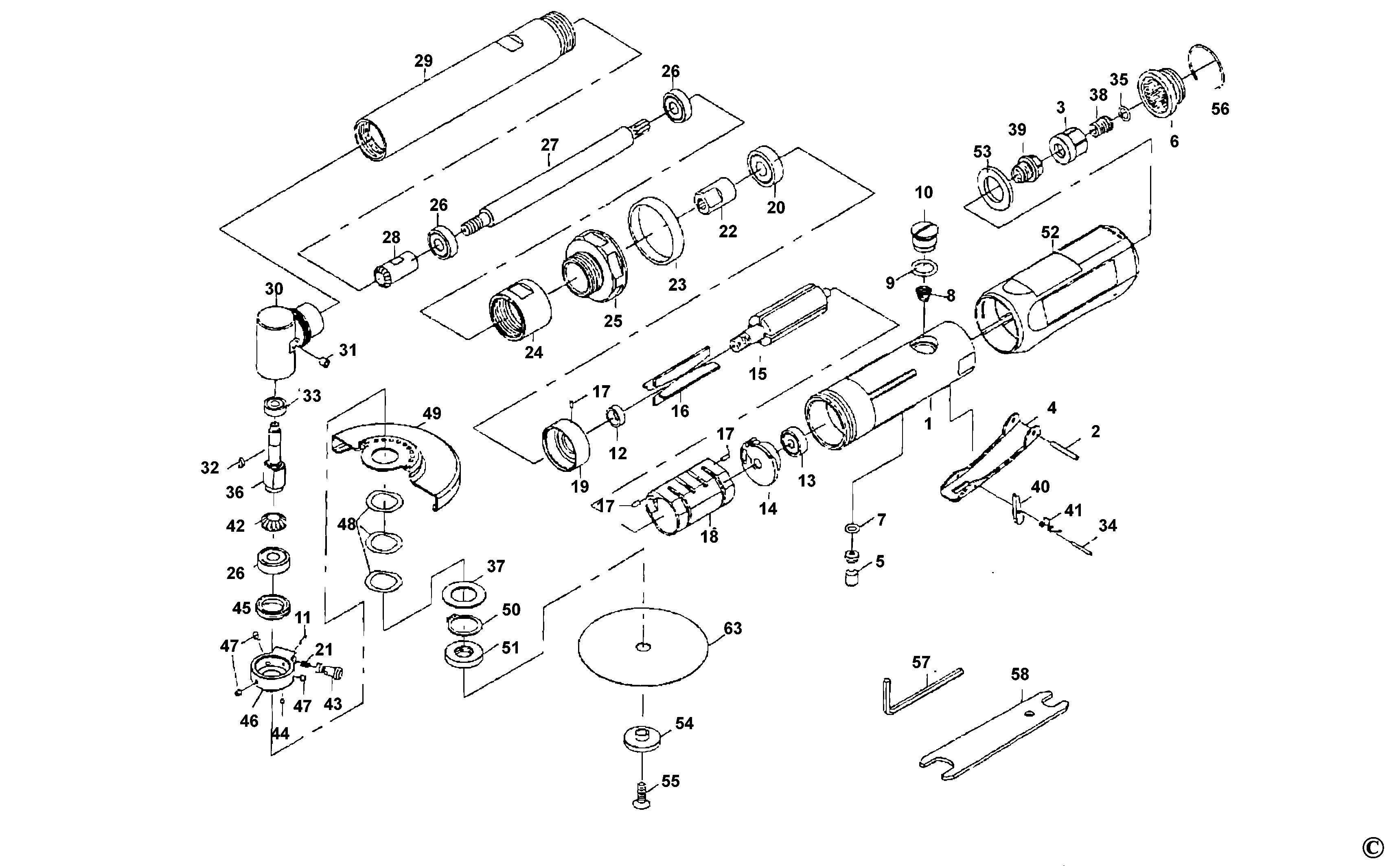

ATQP40E CUT OUT TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | ATQP30S-01 | 1 | MOTOR HOUSING SA | GB |  |
||
| 2 | AD3800AH-02 | 1 | PIN | GB | |
||
| 3 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 4 | AGQP100-04 | 1 | LEVER | GB | |
||
| 5 | AGQP100-05 | 1 | SHAFT | GB | |
||
| 6 | AD3800AH-48 | 1 | DIFFUSER | GB | |
||
| 7 | AD54013 | 1 | O RING | GB | |
||
| 8 | AGQP100-08 | 1 | SPRING | GB | |
||
| 9 | AGQP100-09 | 1 | O RING | GB | |
||
| 10 | AGQP100-10 | 1 | PLUG | GB | |
||
| 11 | ATQP30S-11 | 1 | PIN | GB | |
||
| 12 | ATQP30S-12 | 1 | BUSHING | GB | |
||
| 13 | AD54006 | 1 | BEARING,BALL | GB |  |
||
| 14 | ATQP30S-14 | 1 | PLATE | GB | |
||
| 15 | ATQP30S-15 | 1 | ROTOR | GB | |
||
| 16 | ATQP30S-16 | 1 | BLADE | GB | |
||
| 17 | ATQP30S-17 | 1 | PIN | GB | |
||
| 18 | ATQP30S-18 | 1 | CYLINDER | GB | |
||
| 19 | ATQP30S-19 | 1 | PLATE | GB | |
||
| 20 | ATQP30S-20 | 1 | BEARING,BALL | GB | |
||
| 21 | ATQP30S-21 | 1 | SPRING | GB | |
||
| 22 | ATQP30S-22 | 1 | SHAFT | GB | |
||
| 23 | ATQP30S-23 | 1 | RING | GB | |
||
| 24 | ATQP30S-24 | 1 | NUT | GB | |
||
| 25 | ATQP30S-25 | 1 | CLAMP NUT | GB | |
||
| 26 | AD3800AH-20 | 1 | BEARING,BALL | GB | |
||
| 27 | ATQP40E-27 | 1 | SHAFT | GB | |
||
| 28 | ATQP30S-28 | 1 | GEAR | GB | |
||
| 29 | ATQP40E-29 | 1 | PIPE | GB | |
||
| 30 | ATQP30S-30 | 1 | HEAD | GB | |
||
| 31 | AWQP120M-26 | 1 | CAP | GB | |
||
| 32 | AGQP50AM | 1 | KEY | GB | |
||
| 33 | AGQP50M-13 | 1 | BEARING,BALL | GB | |
||
| 34 | AG200-38 | 1 | PIN | GB | |
||
| 35 | AS20-52 | 1 | O RING | GB | |
||
| 36 | ATQP30S-36 | 1 | SPINDLE | GB | |
||
| 37 | ATQP30S-37 | 1 | WASHER | GB | |
||
| 38 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 39 | ATQP30S-39 | 1 | SHAFT | GB | |
||
| 40 | AGQP100-40 | 1 | PLUG | GB | |
||
| 41 | AGQP100-41 | 1 | SPRING | GB | |
||
| 42 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 43 | ATQP30S-43 | 1 | BUTTON STOP | GB | |
||
| 44 | ATQP30S-44 | 1 | BALL STEEL | GB | |
||
| 45 | AGQP50AM-31 | 1 | NUT | GB | |
||
| 46 | ATQP30S-46 | 1 | Seat | GB | |
||
| 47 | ATQP30S-47 | 1 | SCREW | GB | |
||
| 48 | ATQP30S-48 | 1 | WASHER SPECIAL | GB | |
||
| 49 | ATQP40E-49 | 1 | COVER | GB | |
||
| 50 | ATQP30S-50 | 1 | RING | GB | |
||
| 51 | ATQP30S-51 | 1 | FLANGE | GB | |
||
| 52 | AGQP100-52 | 1 | GRIP | GB | |
||
| 53 | ATQP30S-53 | 1 | Muffler | GB | |
||
| 54 | ATQP30S-54 | 1 | NUT | GB | |
||
| 55 | ATQP30S-55 | 1 | SCREW | GB | |
||
| 56 | ATQP30S-56 | 1 | RING | GB | |
||
| 57 | AS20-59 | 1 | HEX KEY | GB | |
||
| 58 | AGQP50M-27 | 1 | SPANNER | GB | |
