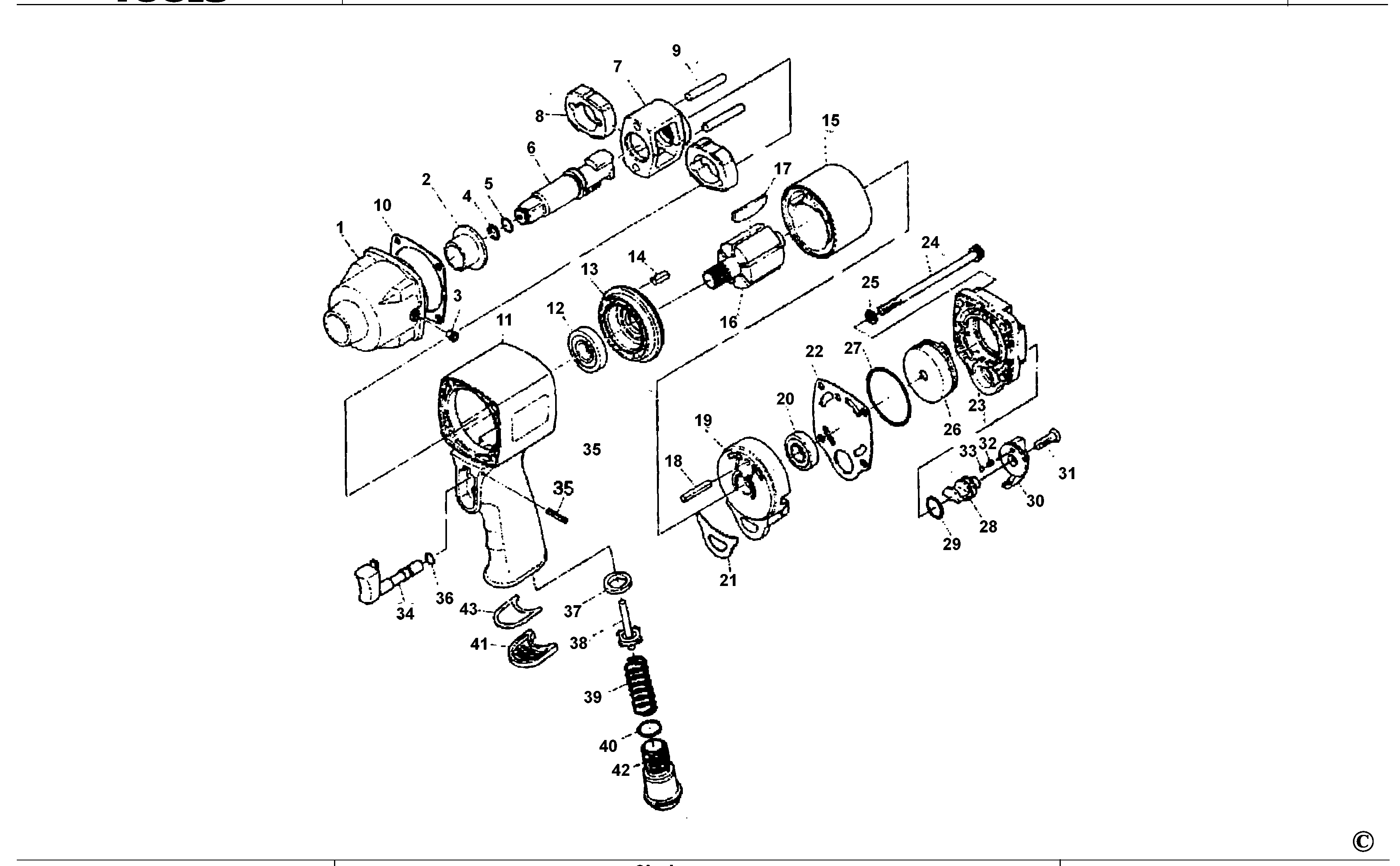

AW435 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW435-01 | 1 | CASE | GB |  |
||
| 2 | AW435-02 | 1 | BUSHING | GB | |
||
| 3 | AD500AH-42 | 1 | PLUG | GB | |||
| 4 | AW145-107 | 1 | RETAINER | GB | |
||
| 5 | AW145-106 | 1 | O RING | GB | |
||
| 6 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 7 | AW435-07 | 1 | FRAME | GB | |
||
| 8 | AW435-08 | 1 | HAMMER | GB | |
||
| 9 | AW435-09 | 1 | PIN | GB | |
||
| 10 | AW435-10 | 1 | GASKET | GB | |
||
| 11 | AW435-11 | 1 | HOUSING | GB | |
||
| 12 | AMT206-09 | 1 | BEARING | GB | |
||
| 13 | AW435-13 | 1 | PLATE | GB | |
||
| 14 | AW435-14 | 1 | PIN | GB | |
||
| 15 | AW435-15 | 1 | SLEEVE | GB | |
||
| 16 | AW435-16 | 1 | ROTOR | GB | |
||
| 17 | AW435-17 | 1 | BLADE | GB | |
||
| 18 | AW435-18 | 1 | PIN | GB | |
||
| 19 | AW435-19 | 1 | BUSHING | GB | |
||
| 20 | AW435-20 | 1 | BEARING,BALL | GB |  |
||
| 21 | AW435-21 | 1 | GASKET | GB | |
||
| 22 | AW435-22 | 1 | GASKET | GB | |
||
| 23 | AW435-23 | 1 | CAP | GB | |
||
| 24 | AW435-24 | 1 | SCREW | GB | |
||
| 25 | AW145-046 | 1 | WASHER | GB | |
||
| 26 | AW435-26 | 1 | DIAL PLATE | GB | |
||
| 27 | AW135-20 | 1 | O RING | GB | |
||
| 28 | AW435-28 | 1 | VALVE | GB | |
||
| 29 | AW435-29 | 1 | O RING | GB | |
||
| 30 | AW435-30 | 1 | LEVER | GB | |
||
| 31 | AW435-31 | 1 | SCREW | GB | |
||
| 32 | AW375-48 | 1 | SPRING | GB | |
||
| 33 | AD527-44 | 1 | BALL | GB | |
||
| 34 | AW435-34 | 1 | TRIGGER | GB | |
||
| 35 | AW435-35 | 1 | PIN | GB | |
||
| 36 | AW145-008 | 1 | O RING | GB | |
||
| 37 | AW375-14 | 1 | VALVE SEAT | GB | |
||
| 38 | AW375-15 | 1 | VALVE | GB | |
||
| 39 | AW435-39 | 1 | SPRING | GB | |
||
| 40 | AD527-32 | 1 | O RING | GB | |
||
| 41 | AW435-41 | 1 | DEFLECTOR | GB | |||
| 42 | AW435-42 | 1 | INLET | GB | |
||
| 43 | AW435-43 | 1 | GASKET | GB | |
