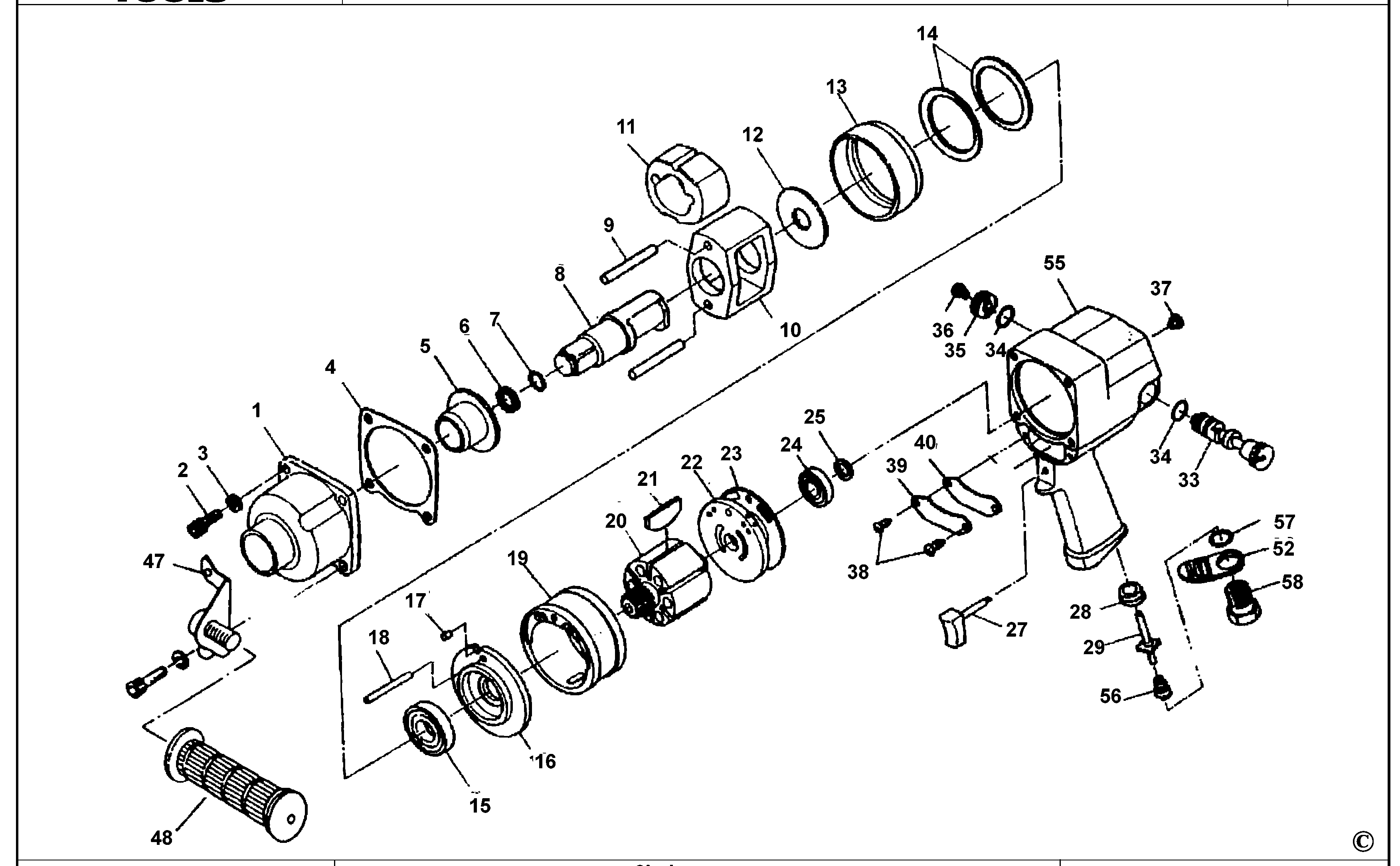

AW272 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW262-01 | 1 | CASE | XJ |  |
||
| 2 | AW262-02 | 1 | SCREW | XJ | |
||
| 3 | AW188-13 | 1 | WASHER | XJ | |
||
| 4 | AW262-04 | 1 | GASKET | XJ | |
||
| 5 | AW262-05 | 1 | BUSHING | XJ | |
||
| 6 | AW188-59 | 1 | RING | XJ | |
||
| 7 | AW188-58 | 1 | O RING | XJ | |
||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | AW262-09 | 1 | PIN | XJ |  |
||
| 10 | AW262-10 | 1 | FRAME | XJ | |
||
| 11 | AW262-11 | 1 | HAMMER | XJ | |
||
| 12 | AW262-12 | 1 | WASHER | XJ | |
||
| 13 | AW262-13 | 1 | RETAINER | XJ | |
||
| 14 | AW262-14 | 1 | WASHER | XJ | |
||
| 15 | AW188-31 | 1 | BEARING | XJ | |
||
| 16 | AW262-16 | 1 | PLATE | XJ | |
||
| 17 | AW262-17 | 1 | PIN | XJ | |
||
| 18 | AW262-18 | 1 | PIN | XJ | |
||
| 19 | AW262-19 | 1 | CYLINDER | XJ | |
||
| 20 | AW262-20 | 1 | ROTOR | XJ | |
||
| 21 | AW262-21 | 1 | BLADE | XJ | |
||
| 22 | AW262-22 | 1 | PLATE | XJ | |
||
| 23 | AW262-23 | 1 | GASKET | XJ | |
||
| 24 | AW157-31 | 1 | BEARING | XJ | |
||
| 25 | AW262-25 | 1 | RING | XJ | |
||
| 27 | AW262-27 | 1 | TRIGGER | XJ | |
||
| 28 | AW262-28 | 1 | Seat | XJ | |
||
| 29 | AW262-29 | 1 | VALVE | XJ | |
||
| 33 | AW262-33 | 1 | VALVE | XJ | |
||
| 34 | AW262-34 | 1 | SEAL | XJ | |
||
| 35 | AW262-35 | 1 | KNOB | XJ | |
||
| 36 | AW262-36 | 1 | SCREW | XJ | |
||
| 37 | AW262-37 | 1 | PLUG | XJ | |
||
| 38 | AW262-38 | 1 | SCREW | XJ | |
||
| 39 | AW262-39 | 1 | PLATE | XJ | |
||
| 40 | AW262-40 | 1 | GASKET | XJ | |
||
| 47 | AW272-47 | 1 | BRACKET | XJ | |
||
| 48 | AW272-48 | 1 | SIDE HANDLE | XJ | |
||
| 52 | AW262-52 | 1 | DEFLECTOR | XJ | |
||
| 55 | AW262-55 | 1 | HOUSING | XJ | |
||
| 56 | AW262-56 | 1 | SPRING | XJ | |
||
| 57 | AW262-57 | 1 | O RING | XJ | |
||
| 58 | AW262-58 | 1 | BUSHING | XJ | |
