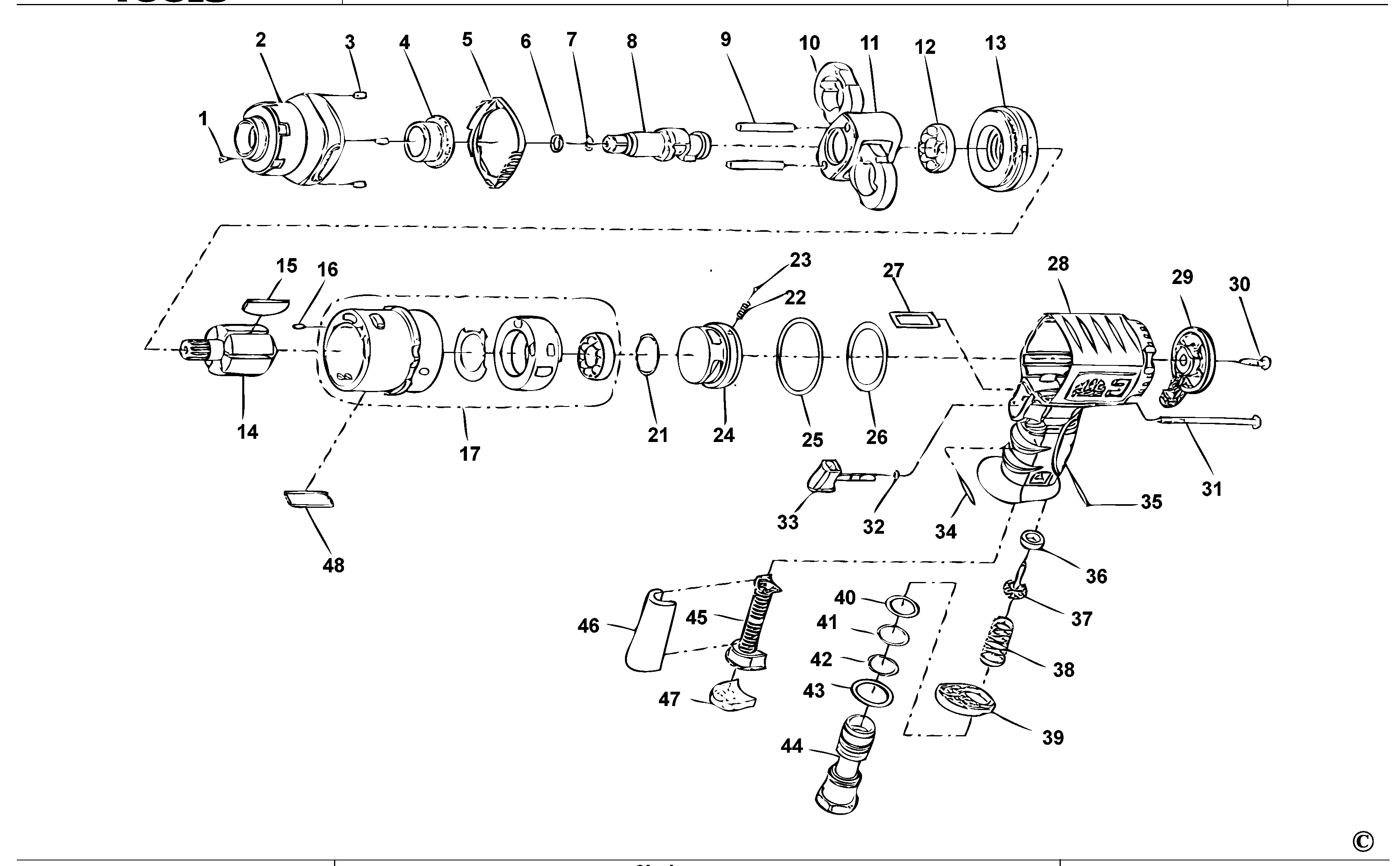

AWP284Q IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | SC100-03 | 1 | SEAL | GB |  |
||
| 1 | 6010389-32 | 1 | LEVER | GB | |
||
| 2 | 30H200364 | 1 | CASE | GB | |
||
| 2 | 373549 | 1 | SHAFT | GB | |
||
| 3 | 00-4302 | 1 | INSERT | GB | |
||
| 3 | 90632706 | 1 | SPINDLE SA | GB |  |
||
| 4 | SC601-03 | 1 | BUSHING | GB | |
||
| 4 | 90543914 | 1 | SWITCH | GB | |||
| 5 | 30G200153 | 1 | GASKET | GB | |
||
| 5 | 90592404 | 1 | SHAFT | GB | |
||
| 6 | SC800-07 | 1 | COLLAR | GB | |
||
| 6 | 90614275 | 1 | SPRING | GB | |
||
| 7 | SC800-08 | 1 | O RING | GB | |
||
| 7 | 90553515 | 1 | GEAR | GB | |
||
| 8 | 30D200178 | 1 | ANVIL | GB | |
||
| 8 | 90553497 | 1 | RAM | GB | |
||
| 9 | 30R200383 | 1 | PIN | GB | |
||
| 9 | 90553506 | 1 | CYLINDER | GB | |
||
| 10 | 30D200176 | 1 | HAMMER | GB | |
||
| 10 | 6010163-33 | 1 | CORDSET | GB | |
||
| 11 | 30D200177 | 1 | CAGE | GB | |
||
| 11 | 6010357-24 | 1 | HANDLE | GB | |
||
| 12 | SC601-16 | 1 | BEARING | GB | |
||
| 12 | N814524 | 1 | TRANSMISSION SA | GB | |
||
| 13 | 30M200133 | 1 | PLATE | GB | |
||
| 13 | 90567970-01 | 1 | BRUSH | 6.2 x 6.2 | GB | |
|
| 14 | 30M200134 | 1 | ROTOR | GB | |
||
| 14 | 90557732 | 1 | BATTERY PACK 12V | NiCd | GB | ||
| 15 | 30M200135 | 1 | BLADE | GB | |
||
| 16 | 30R200384 | 1 | PIN | GB | |
||
| 16 | 6010163-42 | 1 | HEATING ELEMENT | GB | |||
| 17 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 17 | 037653-00 | 1 | CLIP | GB | |
||
| 18 | 6010397-73 | 1 | SWITCH | GB | |
||
| 19 | 90581987 | 1 | LEADWIRE | GB | |||
| 20 | 582319-34 | 1 | CORDSET | GB | |
||
| 21 | 00-4158 | 1 | O RING | GB | |
||
| 21 | 062487-00 | 1 | WASHER | GB | |||
| 22 | 305F-034 | 1 | SPRING | GB | |||
| 22 | N541103 | 1 | HOUSING | GB | |
||
| 23 | SC100-15 | 1 | BALL STEEL | GB | |
||
| 23 | 90638700 | 1 | CORDSET | GB | |
||
| 23 | N560029 | 1 | CORDSET | GB | |
||
| 24 | 243J-021 | 1 | REGULATOR | GB | |
||
| 24 | 6010354-59 | 1 | CHUCK | GB | |||
| 25 | 243F-030 | 1 | GASKET | GB | |
||
| 25 | N812800 | 1 | WASHER | GB | |
||
| 26 | 243F-031 | 1 | SPACER | GB | |
||
| 27 | 243F-019 | 1 | GASKET | GB | |
||
| 28 | 30H200365 | 1 | HOUSING MOTOR | GB | |
||
| 29 | 243J-022 | 1 | KNOB | GB | |
||
| 30 | 00-1303 | 1 | CAP | GB | |
||
| 31 | 243H-028 | 1 | SCREW | GB | |
||
| 32 | 243H-024 | 1 | TRIGGER | GB | |
||
| 33 | SC100-23 | 1 | O RING | GB | |
||
| 33 | 330045-12 | 1 | SCREW | GB | |
||
| 34 | 00-3346 | 1 | PIN | GB | |
||
| 35 | SC800-19 | 1 | PIN | GB | |
||
| 35 | 330045-12 | 1 | SCREW | GB | |
||
| 36 | SC200-30 | 1 | BUSHING | GB | |
||
| 37 | SC200-31 | 1 | VALVE STEM | GB | |
||
| 37 | N647592 | 1 | RATING LABEL | GB | |
||
| 38 | 243H-023 | 1 | SPRING | GB | |
||
| 38 | 6010409-54 | 1 | BLADE SA | GB | |||
| 39 | 243H-021 | 1 | DEFLECTOR | GB | |
||
| 40 | SC100-27 | 1 | O RING | GB | |
||
| 41 | SC100-28 | 1 | O RING | GB | |
||
| 42 | SC100-31 | 1 | O RING | GB | |
||
| 43 | SC100-29 | 1 | WASHER | GB | |
||
| 44 | SC100-30 | 1 | INLET | GB | |
||
| 45 | 243H-019B | 1 | TUBE | GB | |
||
| 46 | 243H-026 | 1 | Muffler | GB | |
||
| 47 | 243H-027 | 1 | Muffler | GB | |
||
| 48 | 243F-041 | 1 | RING | GB | |
