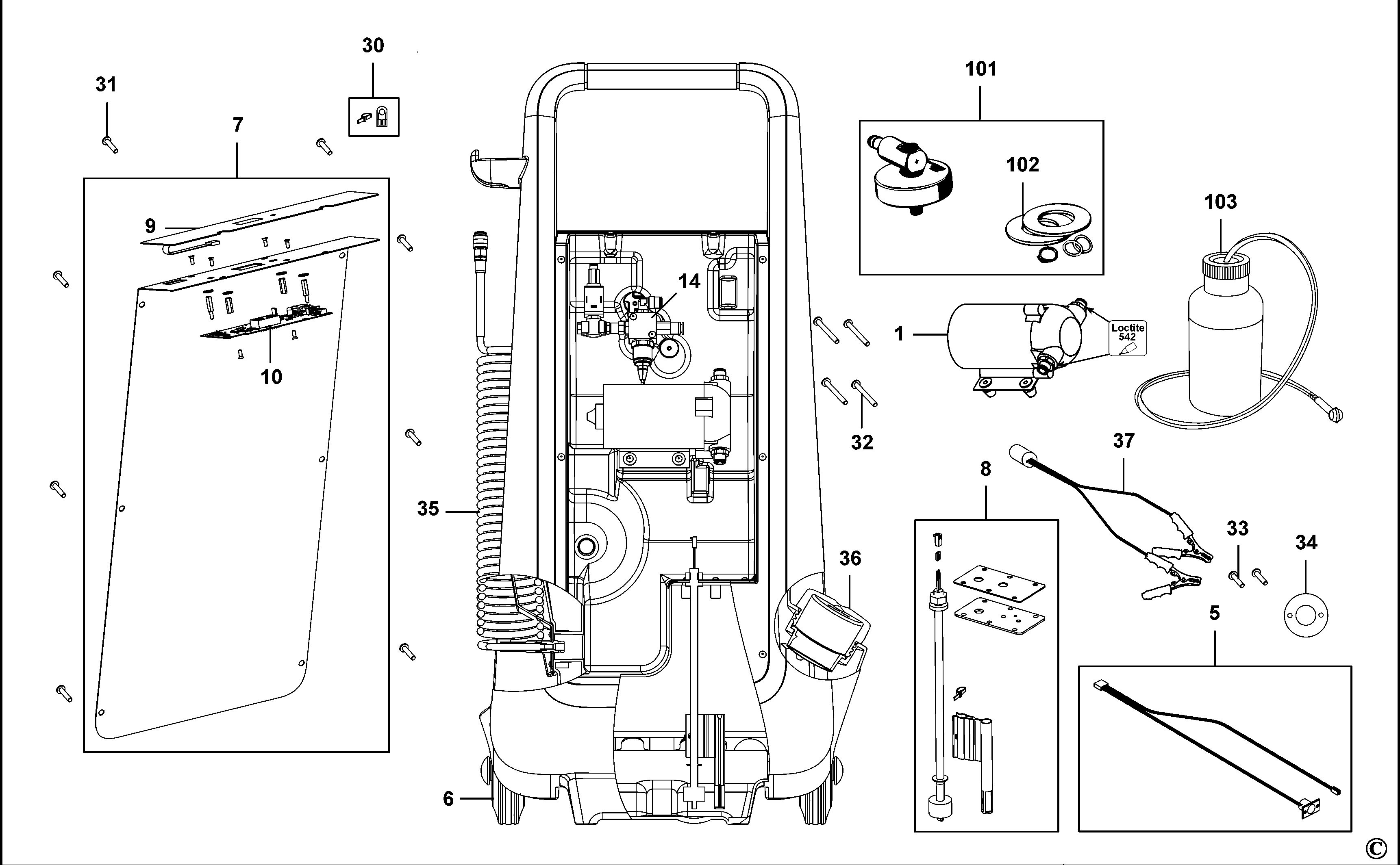

Item No.	Product Number	Qty Per	Product Description	Markets
1	REP-DF.UNI-T	1	PUMP	XJ
2	REP-DF.101-M	1	TUBE	XJ
4	REP-DF.101-L	1	TUBE	XJ
5	REP-DF.UNI-A	1	WIRE HARNESS	XJ
6	REP-DF.UNI-C	1	WHEEL SET	XJ
7	REP-DF.100-A	1	PANEL FRONT	XJ
8	REP-DF.101-B	1	PIPE SA	XJ
9	REP-DF.101-C	1	CONTROL PANEL	XJ
10	REP-DF.101-F	1	PCB SA	XJ
11	REP-DF.UNI-R	2	TUBE	XJ
13	REP-DF.101-D	1	CONNECTOR	XJ
14	REP-DF.101-E	1	REGULATOR	XJ
15	REP-DF.101-K	1	TUBE	XJ
30	DF.UNI-G	1	BRACKET	XJ
31	REP-DF.UNI-H	16	SCREW TORX	XJ
32	REP-DF.UNI-I	6	SCREW TORX	XJ
33	REP-DF.100-I	4	SCREW	XJ
34	REP-DF.UNI-J	1	FRAME	XJ
35	REP-DF.UNI-P	1	HOSE SA	XJ
36	REP-DF.UNI-L	1	CAP	XJ
37	REP-DF.UNI-M	1	CABLE	XJ
40	REP-DF.UNI-Q	1	TUBE	XJ
101	DF.20-07	1	CAP SA	XJ
102	DF.20-07-01	1	VALVES & SEALS KIT	XJ
103	DF.20-11	1	BOTTLE	XJ
