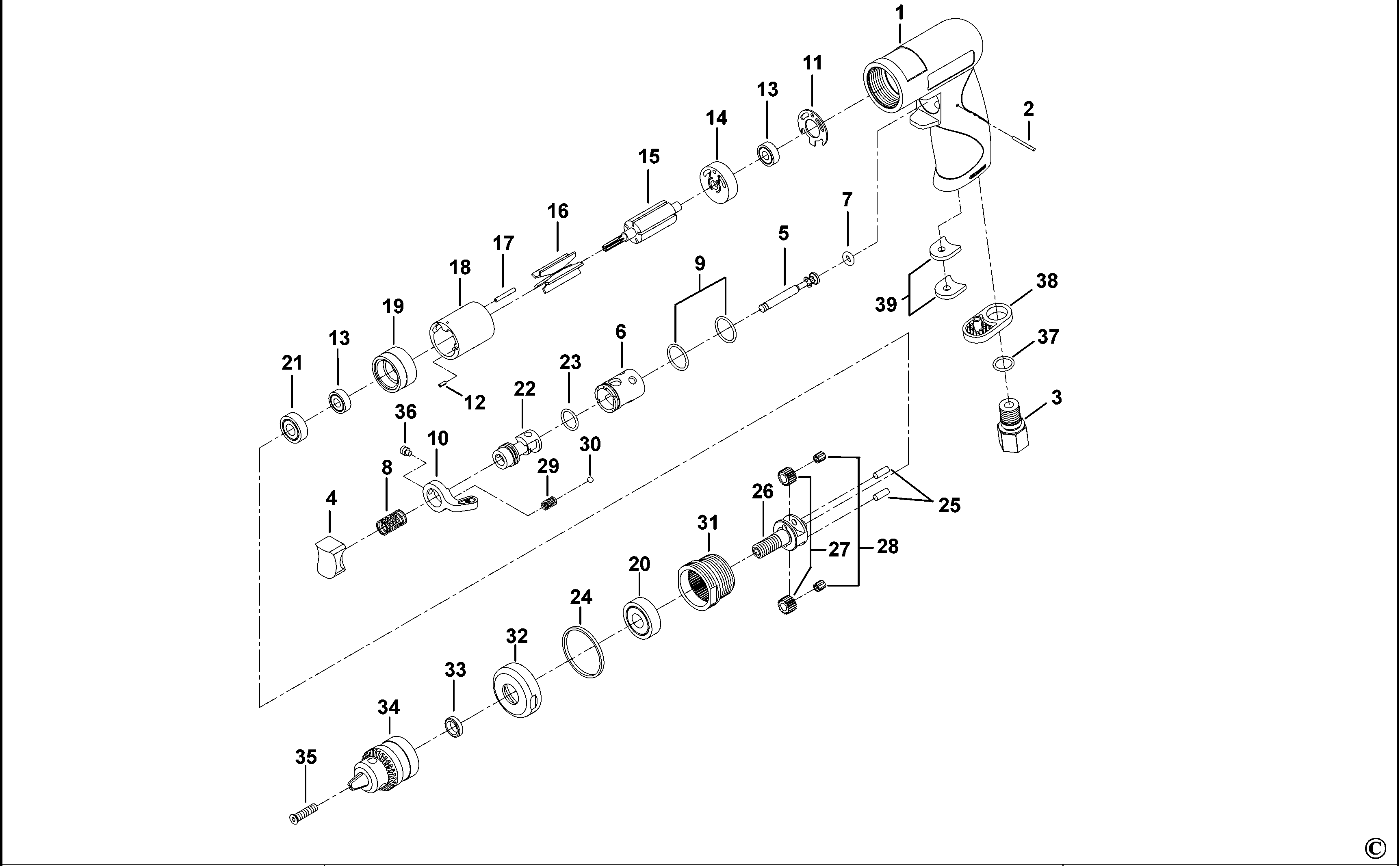

V.D600QR AIR DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004725-37 | 1 | HOUSING MOTOR | XJ |  |
||
| 2 | 1004725-38 | 1 | PIN | XJ | |
||
| 3 | 1004725-39 | 1 | INLET | XJ | |
||
| 4 | 1004725-40 | 1 | TRIGGER | XJ | |
||
| 5 | 1004725-41 | 1 | VALVE | XJ | |
||
| 6 | 1004725-42 | 1 | BUSHING | XJ | |
||
| 7 | 1004725-43 | 1 | O RING | XJ | |
||
| 8 | 1004725-44 | 1 | VALVE SPRING | XJ | |
||
| 9 | 1004725-45 | 2 | O RING | XJ | |
||
| 10 | 1004725-46 | 1 | LEVER | XJ | |
||
| 11 | 1004725-47 | 1 | GASKET | XJ | |
||
| 12 | 1004725-48 | 1 | PIN | XJ | |
||
| 13 | 1004725-49 | 2 | BEARING,BALL | XJ | |
||
| 14 | 1004725-50 | 1 | PLATE | XJ | |
||
| 15 | 1004725-51 | 1 | ROTOR | XJ | |
||
| 16 | 1004725-52 | 5 | ROTOR BLADE | XJ | |
||
| 17 | 1004725-53 | 1 | PIN | XJ | |
||
| 18 | 1004725-54 | 1 | CYLINDER | XJ | |
||
| 19 | 1004725-55 | 1 | PLATE | XJ | |
||
| 20 | 1004725-56 | 1 | BEARING,BALL | XJ | |
||
| 21 | 1004725-57 | 1 | BEARING,BALL | XJ | |
||
| 22 | 1004725-58 | 1 | REVERSE VALVE | XJ | |
||
| 23 | 1004725-59 | 1 | O RING | XJ | |
||
| 24 | 1004725-60 | 1 | RING | XJ | |
||
| 25 | 1004725-61 | 2 | PIN | XJ | |
||
| 26 | 1004725-62 | 1 | CAGE | XJ | |
||
| 27 | 1004725-63 | 2 | GEAR | XJ | |
||
| 28 | 1004725-64 | 2 | BEARING NEEDLE | XJ | |
||
| 29 | 1004725-65 | 1 | SPRING | XJ | |
||
| 30 | 1004725-66 | 1 | BALL STEEL | XJ | |
||
| 31 | 1004725-67 | 1 | GEAR | XJ |  |
||
| 32 | 1004725-68 | 1 | NUT | XJ | |
||
| 33 | 1004725-69 | 1 | WASHER | XJ | |
||
| 34 | 1004725-70 | 1 | CHUCK KEY | XJ | |
||
| 35 | 1004725-71 | 1 | SCREW | XJ | |
||
| 36 | 1004725-72 | 1 | SCREW KIT | XJ | |
||
| 37 | 1004725-73 | 1 | O RING | XJ | |
||
| 38 | 1004725-74 | 1 | DIFFUSER | XJ | |
||
| 39 | 1004725-75 | 2 | DAMPER | XJ | |
