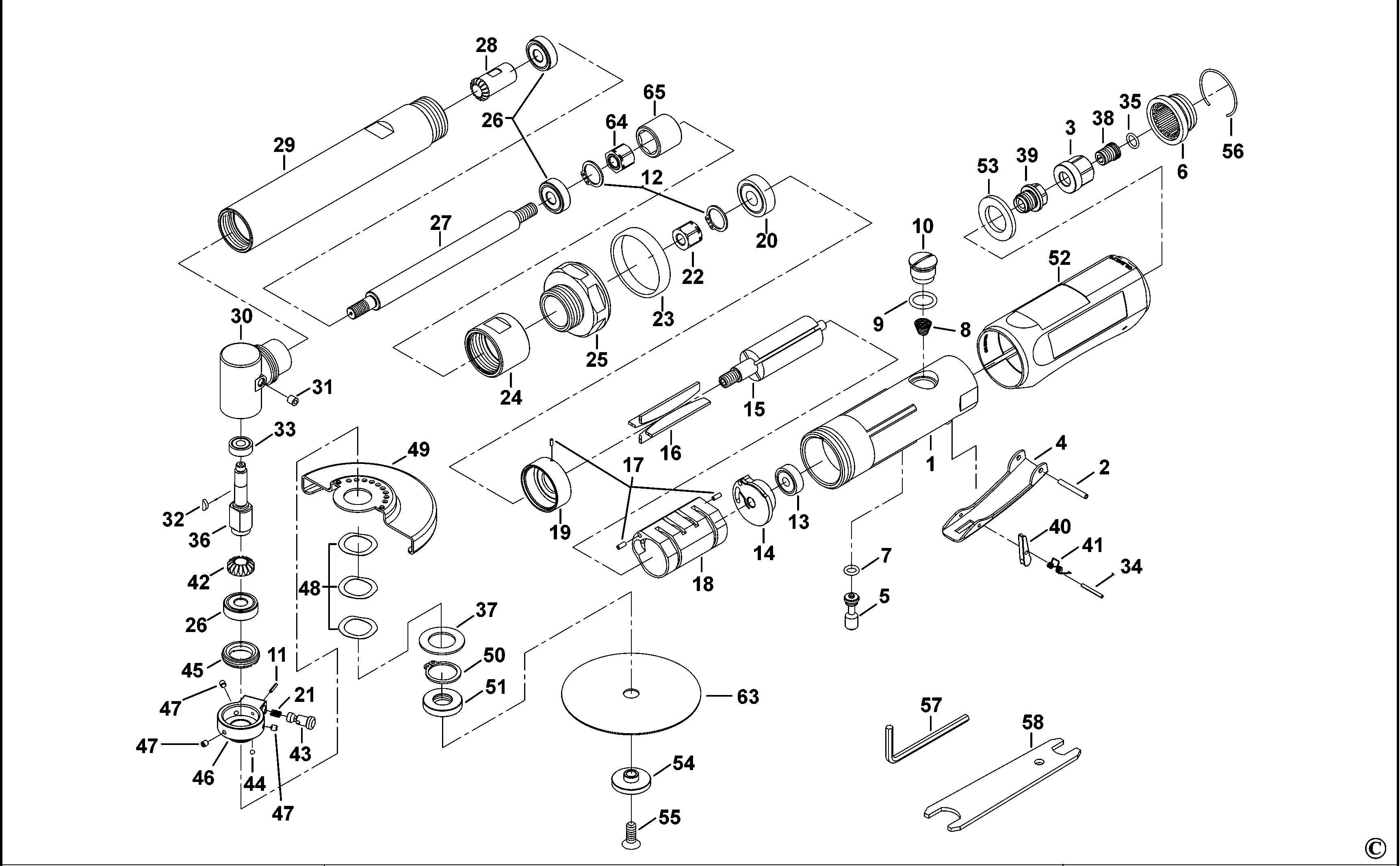

V.CE100F CUT OFF MACHINE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004723-38 | 1 | BEARING HOUSING | XJ |  |
||
| 2 | 1004726-14 | 1 | PIN | XJ | |
||
| 3 | 1004723-40 | 1 | INLET | XJ | |
||
| 4 | 1004722-97 | 1 | LEVER | XJ | |
||
| 5 | 1004722-98 | 1 | SHAFT | XJ | |
||
| 6 | 1004726-54 | 1 | DEFLECTOR | XJ | |
||
| 7 | 1004722-55 | 1 | O RING | XJ | |
||
| 8 | 1004723-02 | 1 | VALVE SPRING | XJ | |
||
| 9 | 1004723-03 | 1 | O RING | XJ | |
||
| 10 | 1004723-04 | 1 | PLUG | XJ | |
||
| 11 | 1004723-48 | 1 | PIN | XJ | |
||
| 12 | 1004723-49 | 1 | RETAINER | XJ | |
||
| 13 | 1004722-55 | 1 | O RING | XJ | |
||
| 14 | 1004723-51 | 1 | PLATE | XJ | |
||
| 15 | 1004723-52 | 1 | ROTOR | XJ | |
||
| 16 | 1004723-53 | 4 | ROTOR BLADE | XJ | |
||
| 17 | 1004723-54 | 3 | PIN | XJ | |
||
| 18 | 1004723-55 | 1 | CYLINDER | XJ | |
||
| 19 | 1004723-56 | 1 | PLATE | XJ | |
||
| 20 | 1004723-14 | 1 | BEARING,BALL | XJ | |
||
| 21 | 1004723-58 | 1 | SPRING | XJ |  |
||
| 22 | 1004723-59 | 1 | NUT | XJ | |
||
| 23 | 1004723-60 | 1 | RING | XJ | |
||
| 24 | 1004723-61 | 1 | NUT | XJ | |
||
| 25 | 1004723-62 | 1 | NUT | XJ | |
||
| 26 | 1004726-29 | 3 | BEARING,BALL | XJ | |
||
| 27 | 1004723-64 | 1 | SHAFT | XJ | |
||
| 28 | 1004723-65 | 1 | BEVEL GEAR | XJ | |
||
| 29 | 1004723-66 | 1 | PIPE | XJ | |
||
| 30 | 1004723-67 | 1 | HEAD | XJ | |
||
| 31 | 1004723-68 | 1 | CAP | XJ | |
||
| 32 | 1004723-69 | 1 | KEY | XJ | |
||
| 33 | 1004723-70 | 1 | BEARING,BALL | XJ | |
||
| 34 | 1004722-86 | 1 | PIN | XJ | |
||
| 35 | 1004723-72 | 1 | O RING | XJ | |
||
| 36 | 1004723-73 | 1 | SPINDLE | XJ | |
||
| 37 | 1004723-74 | 1 | WASHER | XJ | |
||
| 38 | 1004723-31 | 1 | SCREW | XJ | |
||
| 39 | 1004723-76 | 1 | SHAFT | XJ | |
||
| 40 | 1004723-32 | 1 | BAR | XJ | |
||
| 41 | 1004723-33 | 1 | SPRING | XJ | |
||
| 42 | 1004723-79 | 1 | BEVEL GEAR | XJ | |
||
| 43 | 1004723-80 | 1 | BUTTON | XJ | |
||
| 44 | 1004723-81 | 1 | BALL STEEL | XJ | |
||
| 45 | 1004723-82 | 1 | NUT | XJ | |
||
| 46 | 1004723-83 | 1 | Seat | XJ | |
||
| 47 | 1004723-84 | 3 | SCREW KIT | XJ | |
||
| 48 | 1004723-85 | 3 | WASHER | XJ | |
||
| 49 | 1004723-86 | 1 | COVER | XJ | |
||
| 50 | 1004723-87 | 1 | RETAINER | XJ | |
||
| 51 | 1004723-88 | 1 | FLANGE | XJ | |
||
| 52 | 1004723-36 | 1 | GRIP | XJ | |
||
| 53 | 1004723-90 | 1 | SILENCER | XJ | |
||
| 54 | 1004723-91 | 1 | NUT | XJ | |
||
| 55 | 1004723-92 | 1 | SCREW | XJ | |
||
| 56 | 1004723-93 | 1 | RETAINER | XJ | |
||
| 57 | 1004722-90 | 1 | HEX KEY 4 MM | XJ | |
||
| 58 | 1004723-95 | 1 | SPANNER | XJ | |
||
| 63 | 1004723-96 | 1 | DISC | XJ | |
||
| 64 | 1004723-97 | 1 | NUT | XJ | |
||
| 65 | 1004723-98 | 1 | CONNECTOR | XJ | |
