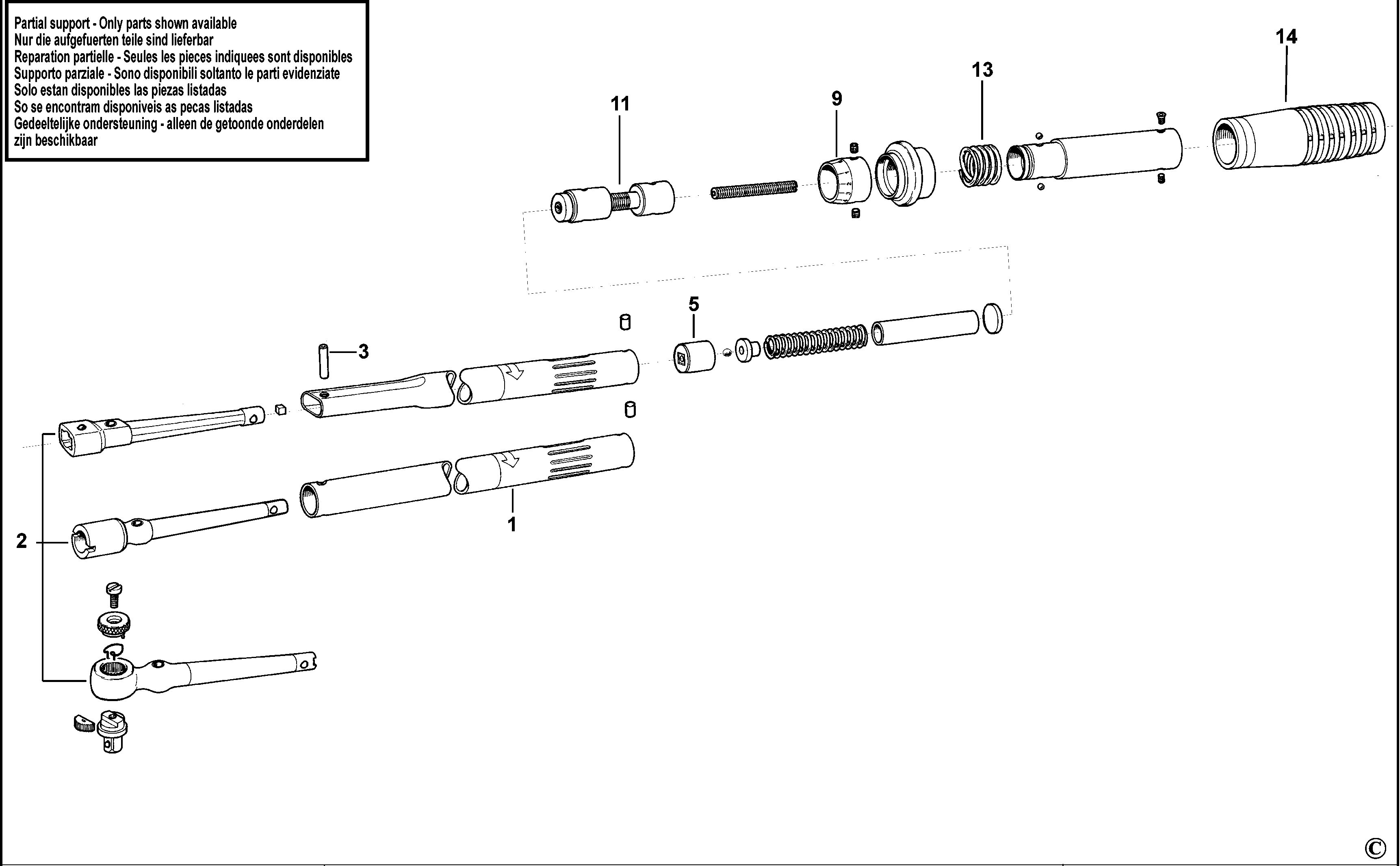

J.305DA WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XJ | |||
| 2 | S.305D02 | 1 | ARM | XJ | |||
| 3 | S.206-100-03 | 1 | PIN | XJ |  |
||
| 5 | S.325D4 | 1 | THRUST PLATE | XJ | |
||
| 9 | J.305D09 | 1 | VERNIER | XJ | |
||
| 11 | S.305D16SE | 1 | CONTROL SCREW | XJ | |
||
| 13 | S.313-16 | 1 | SPRING | XJ | |
||
| 14 | S.305D17 | 1 | HANDLE | XJ | |||
| 101 | 947947-00 | 1 | PIN | XJ | |||
| 103 | 577795-00 | 22 | RING | XJ | |
||
| 105 | 947529-00 | 4 | STUD | XJ | |||
| 106 | 577797-00 | 4 | WASHER | XJ | |||
| 107 | 947952-00 | 2 | SCALE | XJ |  |
||
| 110 | 90543891 | 4 | HOUSING SA | XJ | |||
| 115 | 90591875 | 4 | MOUNT | XJ | |
||
| 117 | 946377-00 | 2 | GUARD SA | XJ | |
||
| 118 | 583144-01 | 1 | DUST PORT | Dark grey | XJ | |
|
| 119 | 947587-00 | 1 | ADAPTOR | XJ | |
||
| 121 | 947941-00 | 1 | PLATE | XJ | |
||
| 123 | 947516-00 | 2 | BRUSH SA | XJ | |
||
| 125 | 947885-00 | 1 | RATING PLATE | XJ | |
||
| 129 | 583212-00 | 2 | ACTUATOR | XJ | |
||
| 132 | 949600-01 | 2 | CABLE SA | XJ | |||
| 134 | 5140227-52 | 2 | SWIVEL ASSY | XJ | |||
| 136 | 948162-01 | 2 | FIELDCASE | XJ | |
||
| 137 | 279428-00 | 2 | CAPACITOR & BOX SA | XJ | |
||
| 138 | 930627 | 4 | CHUCK | XJ | |
||
| 139 | N080637 | 1 | SERVICE KIT 120V | XJ | |||
| 141 | 947950-00 | 1 | BRACKET | XJ | |
||
| 144 | 933021 | 8 | SPRING | XJ | |
||
| 145 | 5104229-00 | 1 | LABEL | XJ | |
||
| 146 | 947822-01 | 1 | ELECTRONIC 240V | XJ | |
||
| 147 | 948162-02 | 1 | FIELDCASE SA | XJ | |
||
| 151 | 948134-05 | 2 | FIELDCASE SA | XJ | |
||
| 153 | 931103 | 1 | SWITCH | XJ | |
||
| 157 | 947507-00 | 2 | BRACKET | XJ | |
||
| 158 | 323395-03 | 1 | SPRING | XJ | |
||
| 161 | 947946-00 | 1 | KNOB | XJ | |
||
| 162 | 376616-06 | 4 | BRAND LABEL | XJ | |
||
| 170 | 949730-01 | 1 | BRUSH HOLDER SA | XJ | |
||
| 173 | 577795-00 | 4 | RING | XJ | |
||
| 174 | 90591875 | 6 | MOUNT | XJ | |
||
| 176 | 638529-00 | 8 | TERMINAL BLOCK | XJ | |
||
| 180 | 584676-00 | 6 | SPINDLE | XJ | |
||
| 181 | 994165 | 2 | WASHER THRUST | XJ | |
||
| 183 | 487326-00 | 1 | LEAD SWITCH SA | XJ | |
||
| 184 | 395848-00 | 6 | CAP | XJ | |
||
| 185 | N464860 | 6 | RATING LABEL | DWE402 TYPE 4 | XJ |
